INSTALLING A SECOND TANK
STEP 17
Install the second support assembly with eight 1/2” X 7 1/2” lg carriage bolts, as described in steps 1 and 2. Position
the front support bracket (item 1) at the edge of the exterior shaft reinforcement plate, as shown below.
1
1

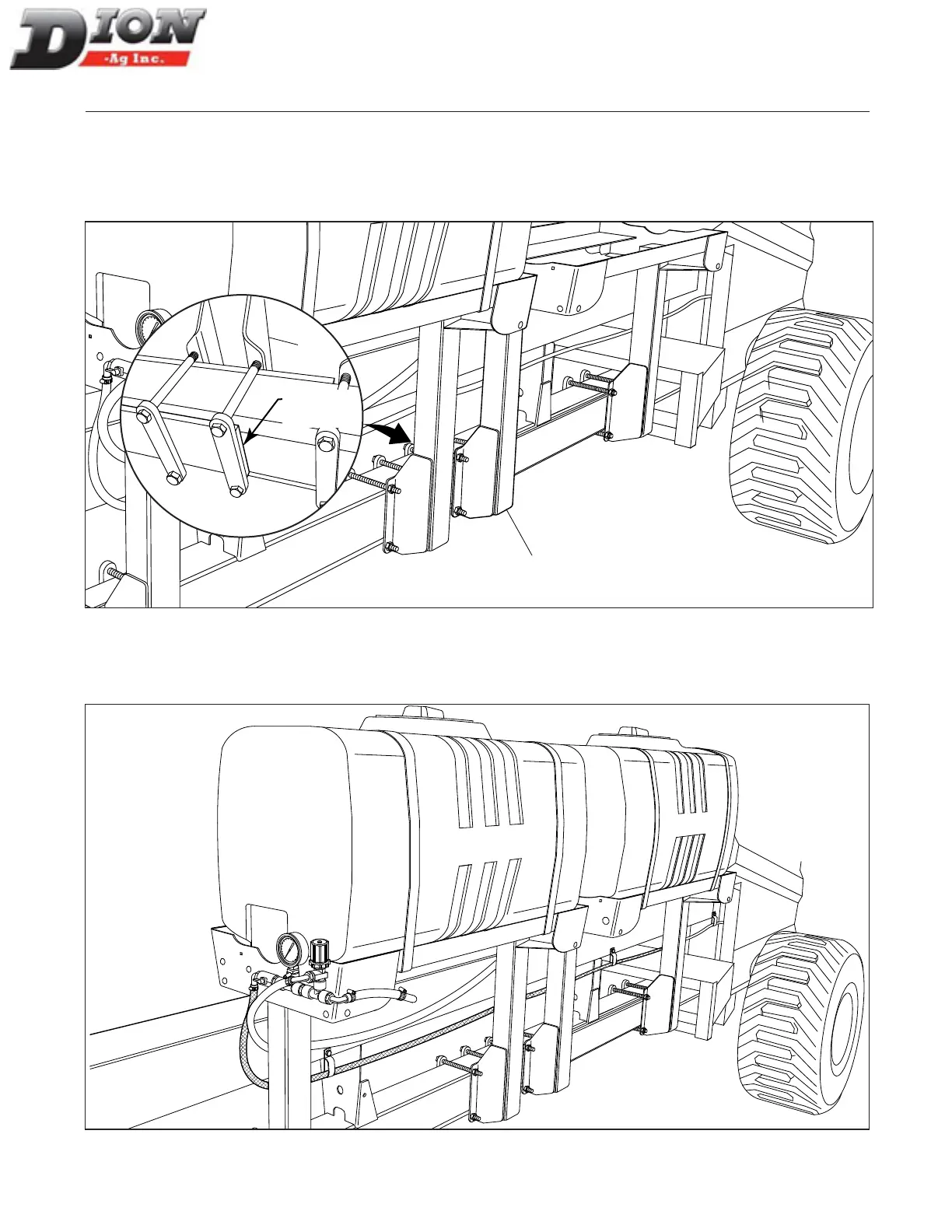

Figure 46 Installing the support assembly for a second tank
STEP 18
Install the second tank, as described in step 10.
Figure 47 Installing the second tank
ASSEMBLING INSTRUCTIONS - LIQUID INCORPORATION SYSTEM
FRONT REAR
At the edge
of plate
Manual No. F4117E987E V1.1
