INSTALLING MUDGUARDS OVER TANDEM
WHEELS - FIGURE 20
1. Fasten the two mudguard support brackets (item 2)
to the frame (item 5). Each bracket is held in place
by two 1/2” X 1 1/4” lg bolts (item 4) and two 1/2”
nuts.
2. Place a rubber spacer (item 3) on each bracket (item
2) and fasten the mudguard (item 1) over the spacer
and the brackets with six 5/16” X 1” lg carriage bolts
and six nuts.
ASSEMBLING INSTRUCTIONS
1
2
2
3
3
4
5
4

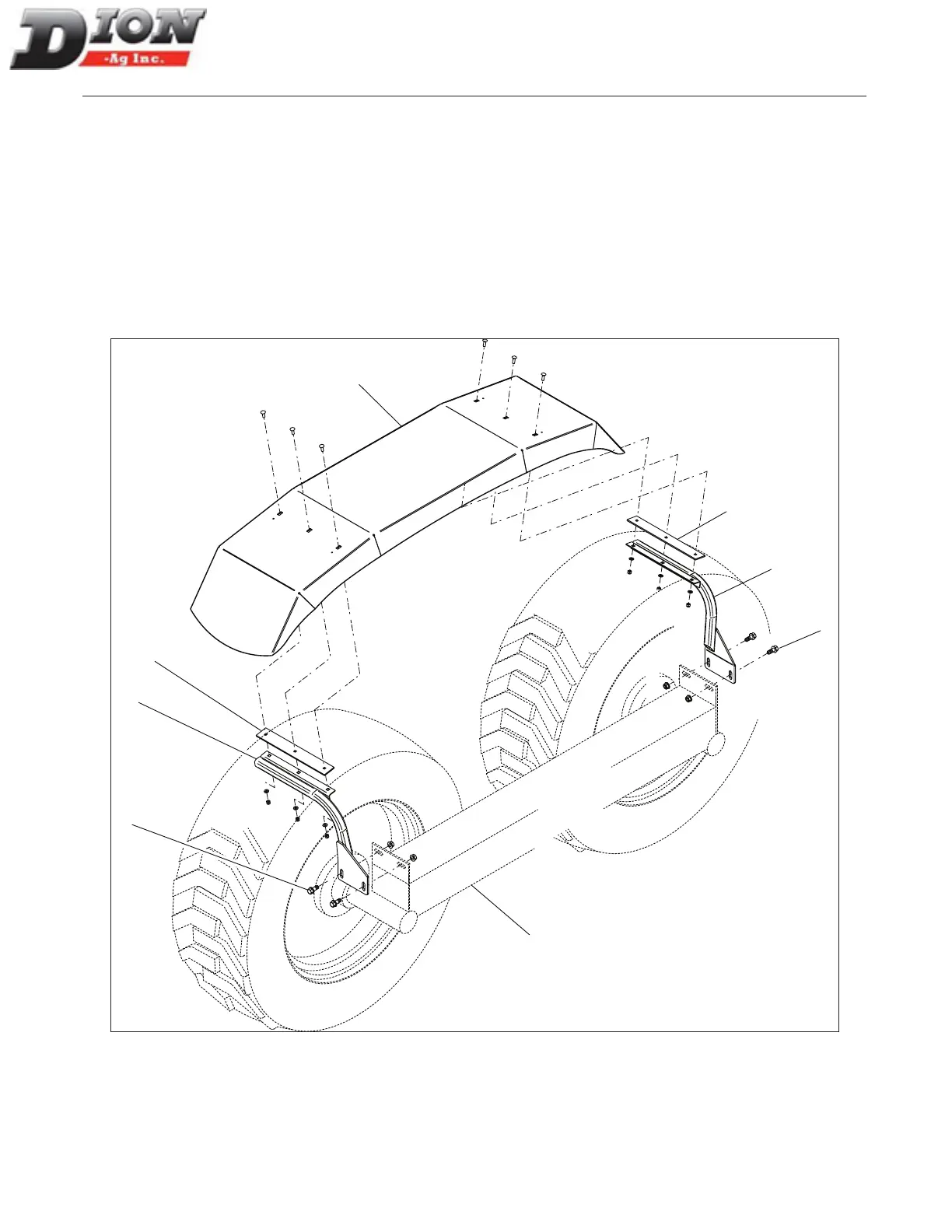

Figure 20 Installing mudguards over tandem wheels
Manual No. F4117E987E V1.1
