Dion-Ag F41 - Guards and Shields

16
GUARDS AND SHIELDS - FIGURE 1
The Forage Harvester is equipped with guards and
shields wherever eventual accidents can occur. These
guards and shields do not keep the machine from oper-
ating properly. Observe various safety signs indicating
these hazardous locations that are properly applied to
the machine.
CAUTION: All guards and shields factory in-
stalled should be in place and maintained in good
condition.
Item 1 A bolted guard covers the transmission shaft (on
its full length) from the front bearing up to the an-
gle drive transmission.
Item 2 A hinged guard covers the universal joints.
Item 3 The telescopic driveline which attaches to the
tractor PTO is covered with a non-rotating shield.
Item 4 An hinged guard covers the tool box, the transmis-
sion shaft between the angle drive transmission
and the cutting head, the driving belts for the for-
ward-neutral-reverse transmission and the driving
system for the feeding rolls and the attachments.
Item 5 An hinged guard covers the 4 blowing fan riving
belts.
Item 6 An hinged guard covers the corn cracker roll belts
and the front feeding roll drive system belts.
Item 7 An hinged guard covers the sharpening system.
Item 8 An hinged guard covers the cutter head.
Item 9 An hinged guard covers the fan.
1
3
2
4
5
6
9
7
7
8

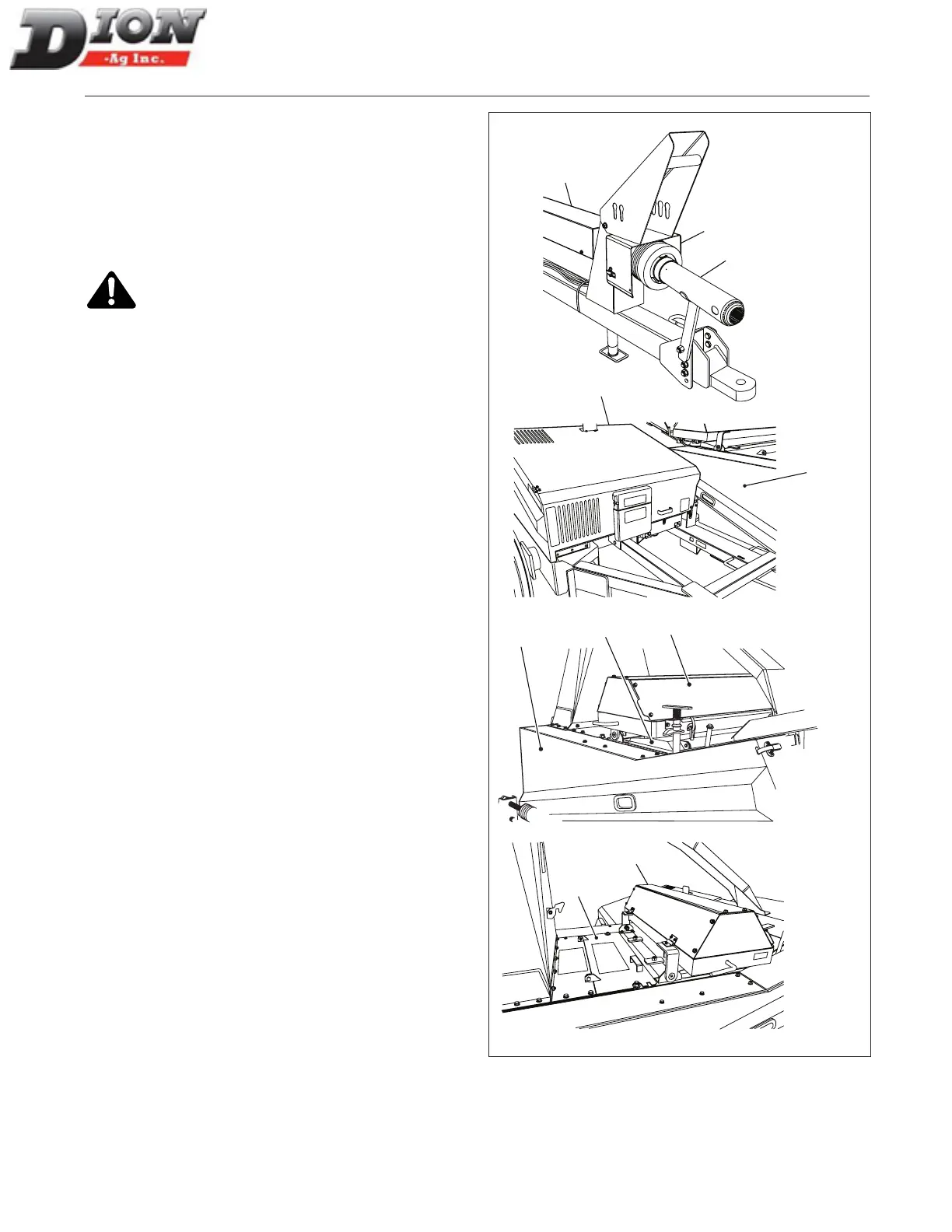

Figure 1 Guards and shields
SAFETY RULES
Manual No. F4117E987E V1.1
