92
OPERATING INSTRUCTIONS
1

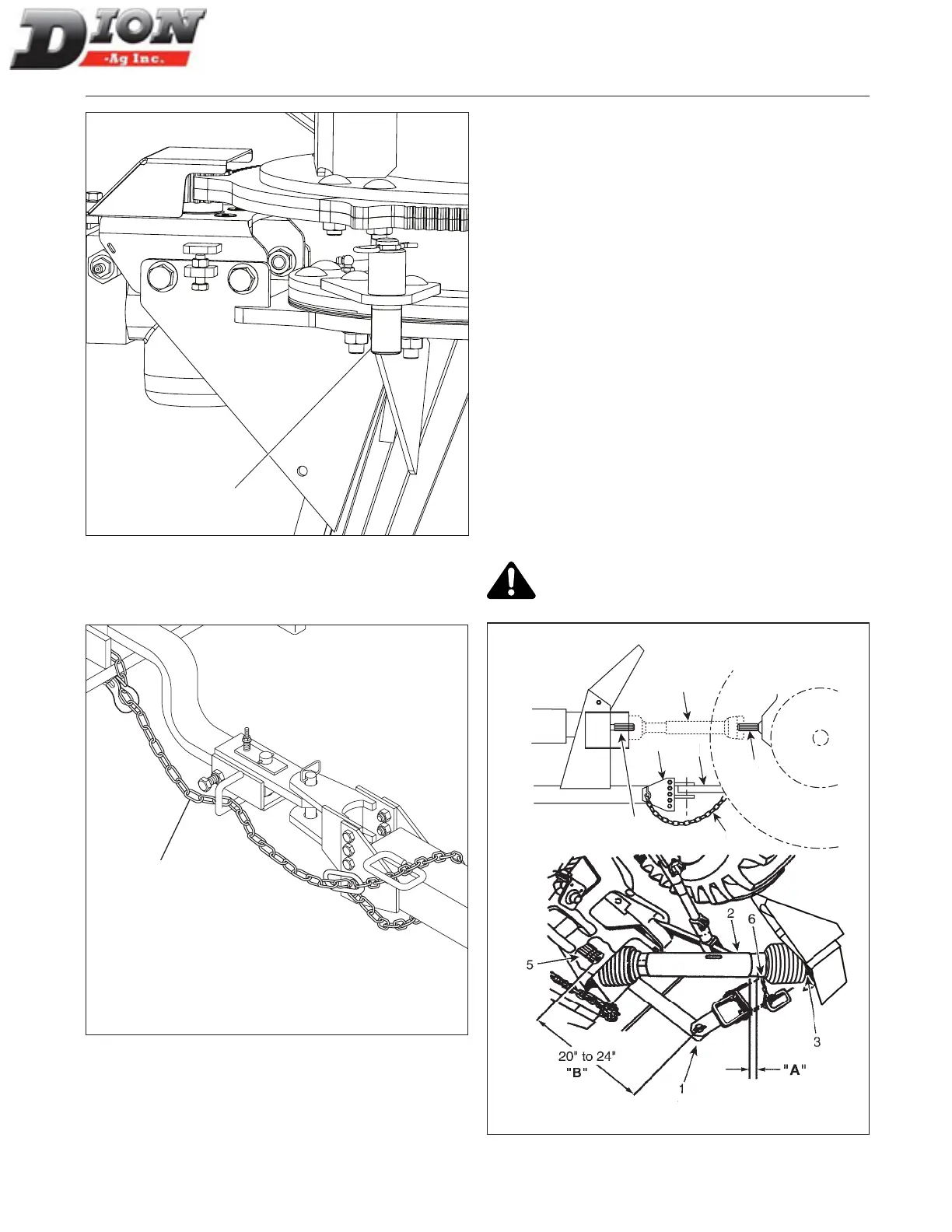

Figure 124 Locking pin in eld mode
NOTE: Always lower the attachments to the ground for
storage and when the machine is not in use.
7
Figure 125 Safety chain
PREPARING FOR FIELD OPERATION
NOTE: Once the machine has been assembled, ad-
justed, and lubricated, check carefully and make
sure that all nuts have been properly torqued,
tightened and every and all parts properly put in
place before operating.
HITCHING THE FORAGE HARVESTER TO THE
TRACTOR - FIGURE 126
The tractor drawbar (item 1) must be centered and
aligned with the telescopic power-take-off (PTO) (item
2). Align the telescopic PTO (item 2) and the tractor PTO
(item 5) with the Forage Harvester universal joints (item
3) by adjusting the height of the eight-bolt hitch bracket
(item 4).
Make sure distance “A” of the PTO rotating guard is
greater than “zero” when tractor is at its maximum turn-
ing angle. To increase the turning angle, lengthen tractor
drawbar within the range of measure “B” of 20” (50cm)
to 24” (60cm). If the draw bar is not long enough, use the
optional hitch extension.
CAUTION: Attach a safety chain (item 6) with
a minimum capacity of 20,000 lbs (9071 kg) for
transportation.
3
2
4
1
5
6
3
2
4
1
5
6
Figure 126 Tractor draw bar alignment
Manual No. F4117E987E V1.1
