Dion-Ag F41 - How to Make the Electrical Connections on the Spout (F41 Model Only)

31
ASSEMBLING INSTRUCTIONS
HOW TO MAKE THE ELECTRICAL
CONNECTIONS ON THE SPOUT - FIGURE 15
(F41 MODEL ONLY)
1. Connect the electrical cable to the deector motor
cable (item 1).
2. Tie the power cable of the deector motor to the
support bracket (item 2) using a tie-wrap.
3. Connect the electrical cable (item 3) to the deector
motor (item 1) cable (item 4).
NOTE: Make sure to leave sufcient electrical cable
length allowing spout to turn freely.
NOTE: The rotation motor is already connected.
4
3
2
1

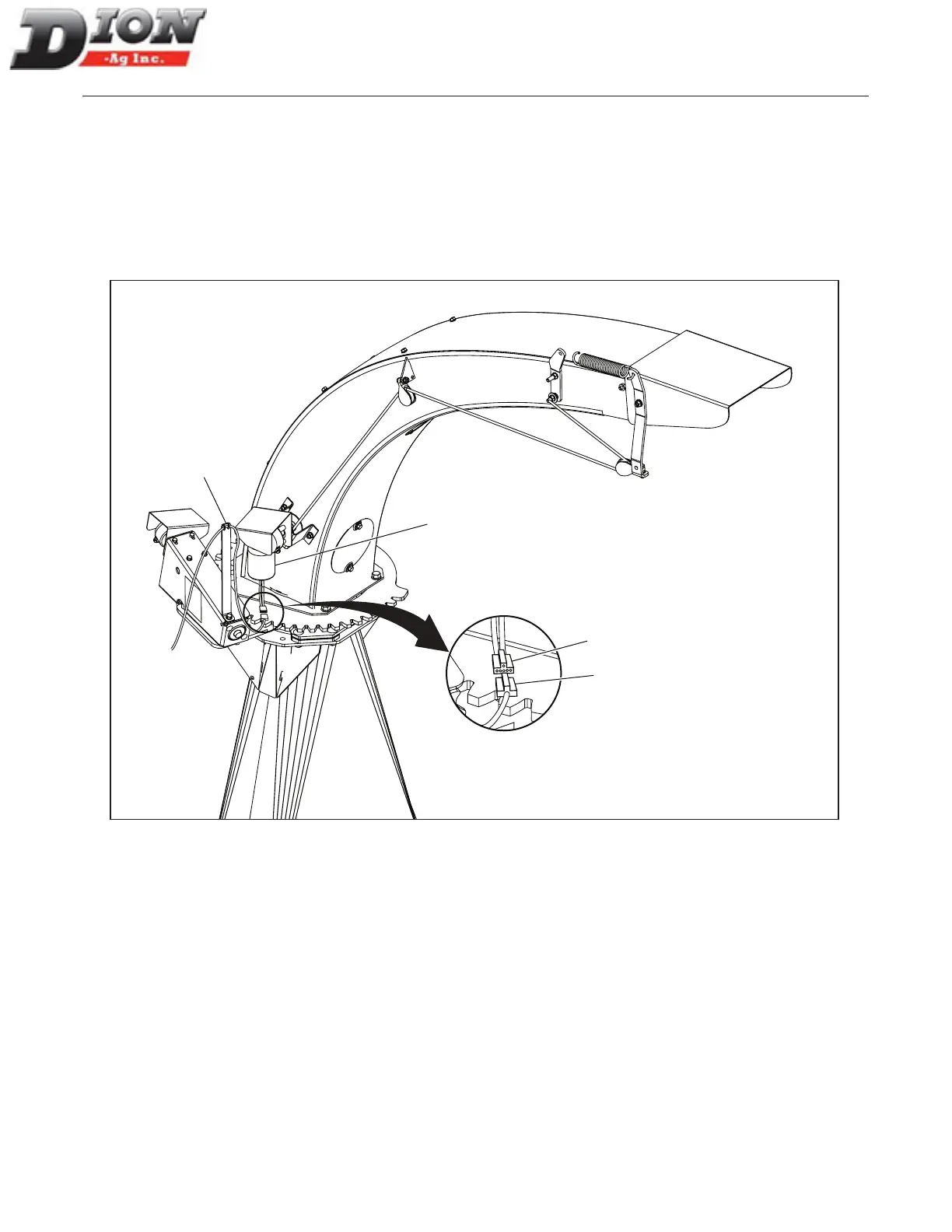

Figure 15 Connecting electrical cables on the spout
Manual No. F4117E987E V1.1
