112

LUBRICATION

40h

40h

10h

10h

10h

High-speed

grease tting

High-speed

grease tting

LEFT-HAND SIDE

RIGHT-HAND SIDE

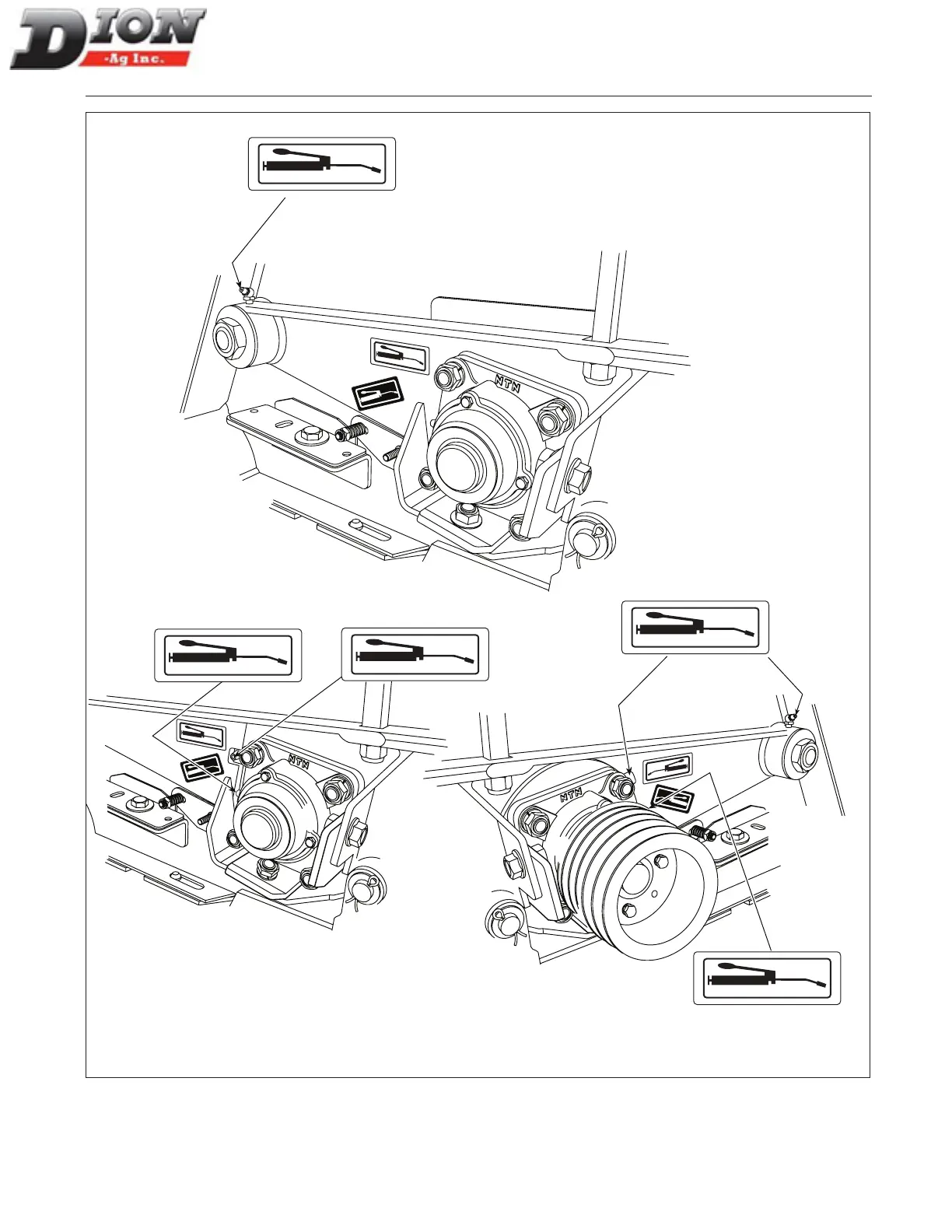

Figure 155 Corn Cracker

Manual No. F4117E987E V1.1
