46

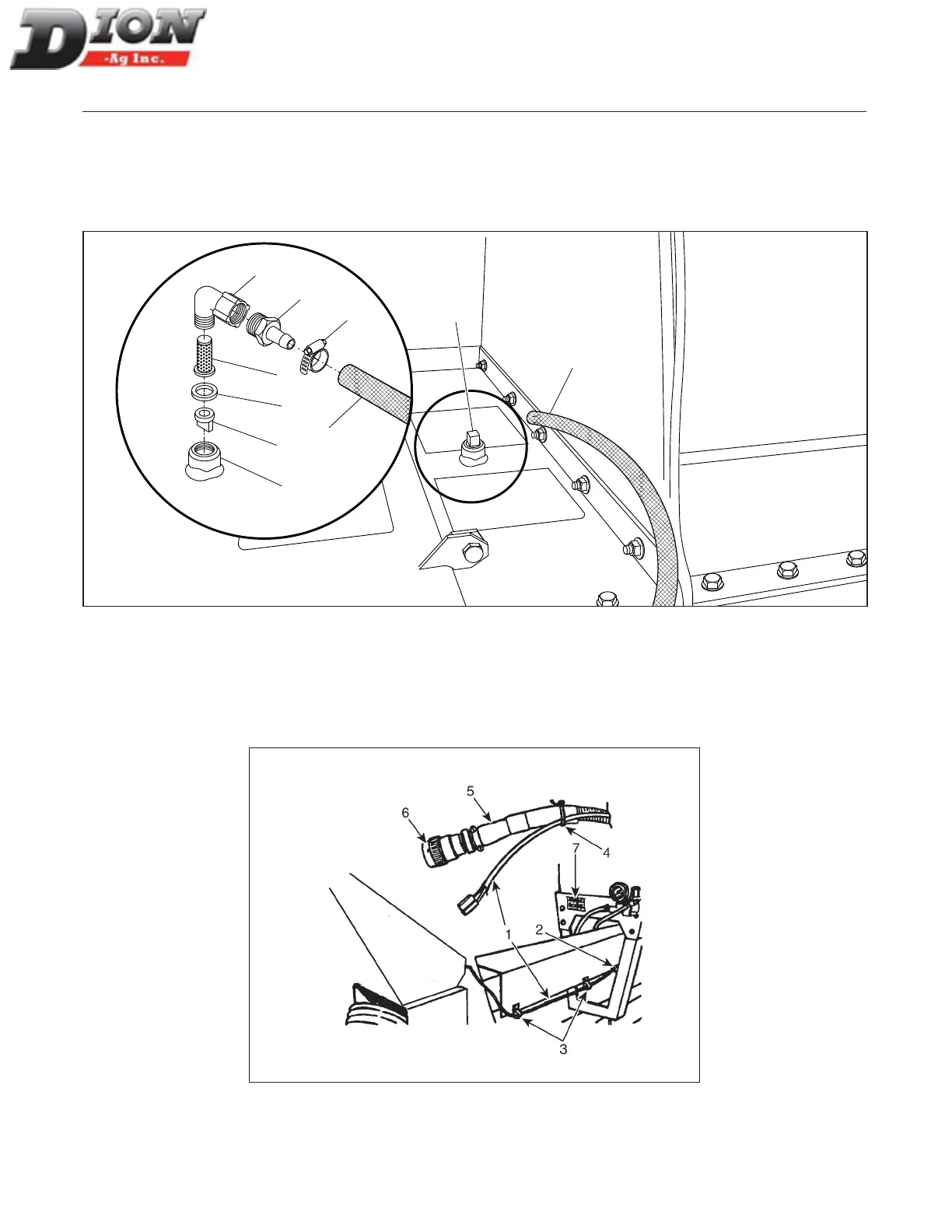

STEP 15
Connect the electric wire (item 1) to the wire on the motor (item 2) and attach to the Forage Harvester guard with two
wire clamps (item 3). Use the bolts already on the guard. Attach the wire with nylon tie-wraps (item 4) to the electric
wire (item 5) on the Forage Harvester, up to the main connector (item 6). Afx the decal (item 7).
Figure 43
ASSEMBLING INSTRUCTIONS - LIQUID INCORPORATION SYSTEM
STEP 14
Remove the cap (item 1). Insert the nozzle (item 2) in place by aligning the rectangular shape of the nozzle with
the one on the plate inside the adaptor (item 3). Insert the rubber washer (item 4) and the lter (item 5). Install the
elbow (item 6) by aligning it with the hose (item 7). Install the adaptor (item 8) and connect the hose (item 7) with a
hose clamp (item 9). Tighten properly.
1
2
3
4
5
7
7
8
9
6
Figure 42 Connecting the feed hose to the Forage Harvester
Manual No. F4117E987E V1.1
