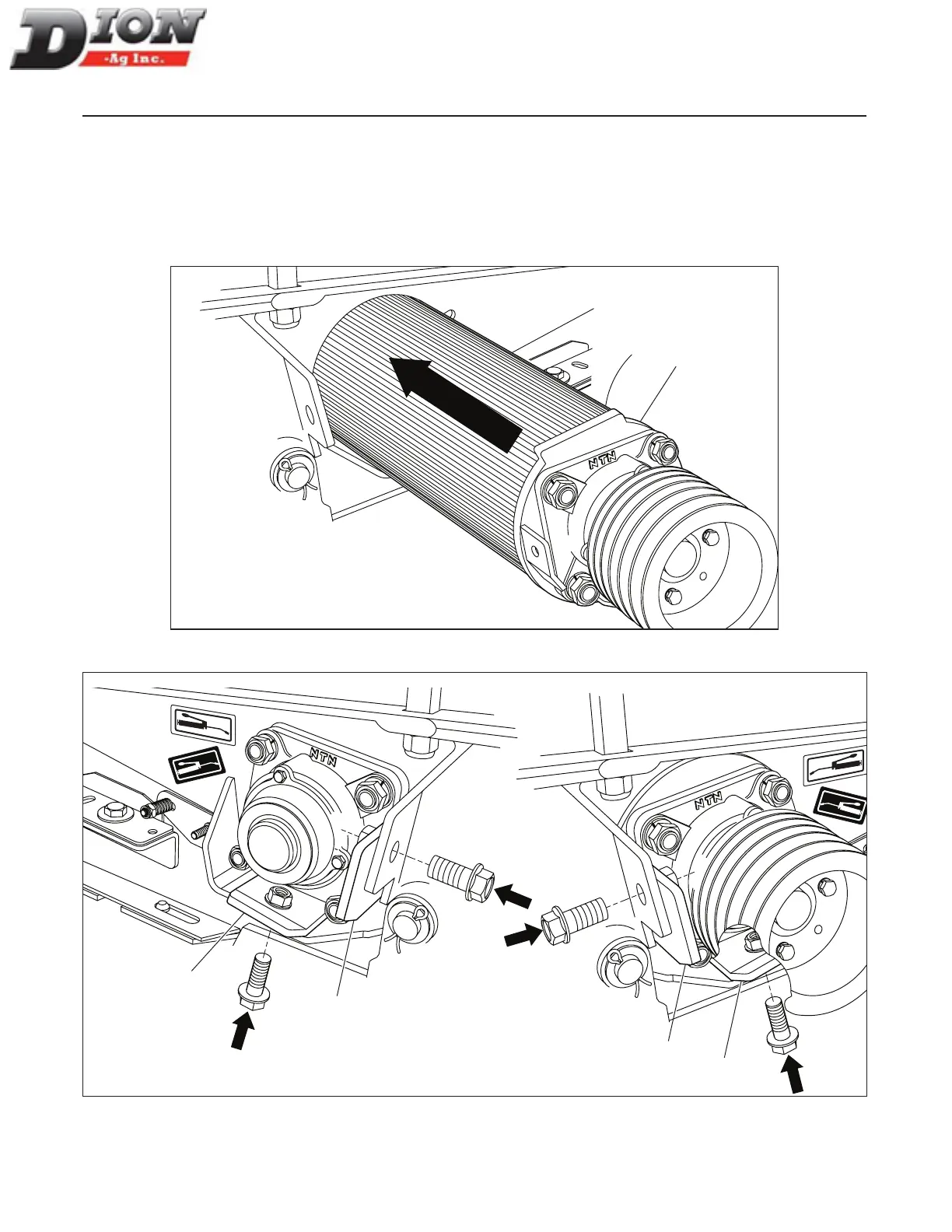

STEP 5 - FIGURE 110
Insert the upper roll assembly (item 1).
NOTE: When installing the roll, clean both half bottom
plates well by removing any hay silage residue,
before sliding in the upper roll.
STEP 6 - FIGURE 111
Secure the bearing support bracket (item 1) on both
sides (item 2). Each support bracket is held in place with
two 1/2” X 1” lg. ange bolts.
PARTIAL REASSEMBLING OF THE CORN CRACKER FOR CORN CROP
1
Figure 110
1
1
2
2
Figure 111
