137ECLYPSE APEX
Controller Model Subnetwork Data Bus Device Permitted Subnet ID
Addressing Range
Maximum Quantity
Allowed
ECY-APEX
Allure EC-Smart-Vue series 1 to 12
12
2
Allure EC-Smart-Comfort series
1 to 6
Allure EC-Smart-Air series
EC-Multi-Sensor series 1 to 4 4
Allure UNITOUCH
1 to 6 6
4
EC-Multi-Sensor-BLE
ECx-Light-4 / ECx-Light-4D / ECx-Light-4DALI
1 to 4 4
ECx-Blind-4 / ECx-Blind-4LV / ECx-Blind-4SMI
ECx-Display Not applicable 1

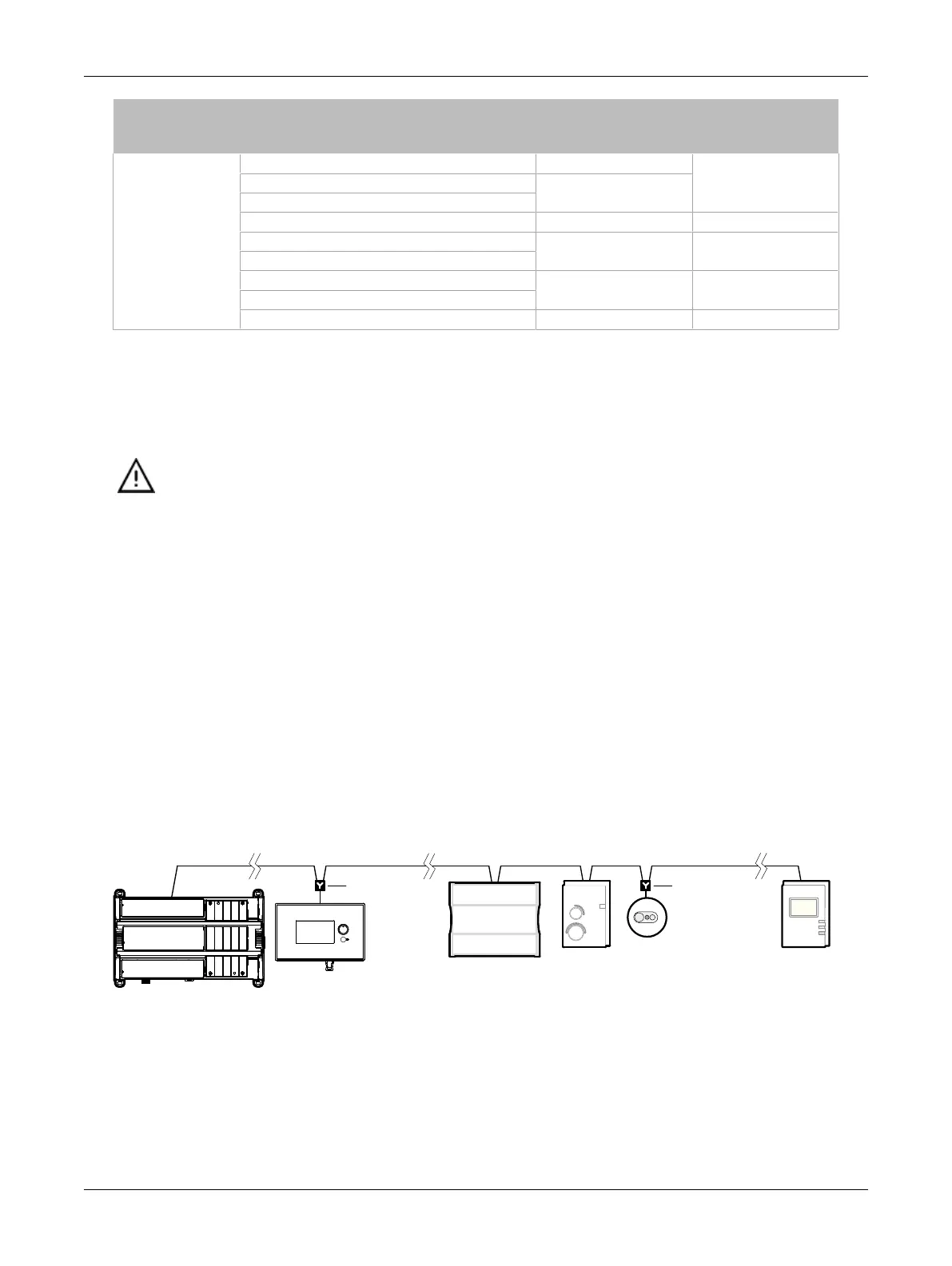

Table20: Subnetwork Module Compatibility and Maximum Supported Quantity Chart
1. A controller can support a maximum of two (2) Allure series sensor models equipped with a CO
2
sensor. Any remaining connected Allure series sensor models must
be without a CO
2
sensor.
2. A controller can support a maximum of 2 Allure UNITOUCH devices, regardless of the sensor model, and a maximum of 4 EC-Multi-Sensor-BLE devices.
The indicated addressing ranges group together the permitted addressing ranges for those devices:
The following devices use different Subnet address ranges so that the same Subnet ID of one device will not conflict
with that of another device that is on a different Subnet address range:
£ Address Ranges:
– 1 address range for Allure EC-Smart-Vue sensors
– 1 address range for Allure EC-Smart-Comfort and Allure EC-Smart-Air sensors
– 1 address range for EC-Multi-Sensors
– 1 address range for ECx-Light/Blind expansion modules
– 1 address range for ECx-Display
– 1 address range for Allure UNITOUCH and EC-Multi-Sensor-BLE
For example, an Allure EC-Smart-Vue sensor and an Allure EC-Smart-Air sensor can have the same Subnet ID, but
an Allure EC-Smart-Air sensor and an Allure EC-Smart-Comfort sensor must have a different Subnet ID.
Consequently, you cannot set both an ECx-Light-4 and an ECx-Blind-4 to have a Subnet ID as 1.
Subnetwork Module Connection
The following sections will provide further information needed to connect and configure the subnet-
work devices such as cable type, cable length, wiring, data bus termination, device addressing, and
more.
Subnetwork Bus: Typical Connection for Room Devices
Cat 5e Cable Subnetwork Bus
Light or Sunblind
Expansion Module
Typical Room Devices
ECx-Subnet
Adapter
Allure Series
Sensors
ECx-Display
ECx-Subnet
Adapter
ECLYPSE APEX
Figure111: Subnetwork Module Connection to the APEX Controller Example
Subnetwork Installation Guidelines
