RADIUS Server Architectures
Local Credential Authentication
Each device has its own credential database in the local credential authentication architecture. This
approach is labor-intensive as multiple credential database instances must be maintained.
EC-gfxProgram
EC-Net
A
ECLYPSE
Controller B
C
ECLYPSE
Controller A
B
Key:
Credential Database
Login Credential
1 2 3
4 4

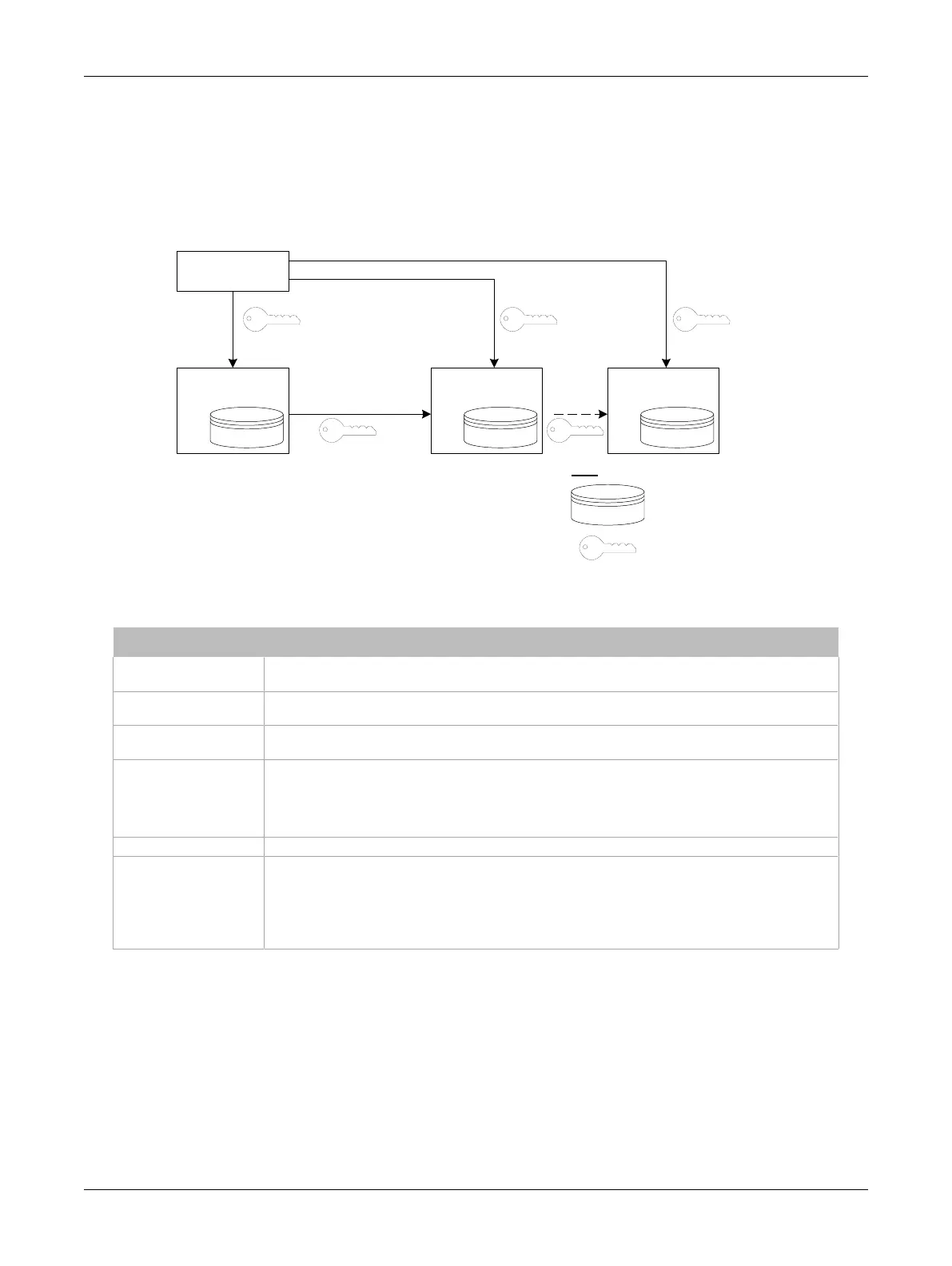

Figure31: Local Credential Authentication
This authentication method has the following components.
Component Description
Login Credential 1
This is the login credential used by an EC- gfx Program user to connect to the EC-Net station. This
credential is managed in the EC-Net User Service.
Login Credential 2
This is the login credential used by an EC- gfx Program user to connect to ECLYPSE controller A.
This credential is managed in controller’s A User Management credential database.
Login Credential 3
This is the login credential used by an EC- gfx Program user to connect to ECLYPSE controller B.
This credential is managed in controller’s B User Management credential database.
Login Credential 4
This is the login credential used by the EC-Net station’s RestService to connect to ECLYPSE
controller A and B. To program an ECLYPSE controller with EC- gfx Program through EC-Net, the
RestService must be configured on the EC-Net station with a login credential to all ECLYPSE
controllers. This credential is managed in this controller’s A and B User Management credential
databases.
Credential Database A This is the EC-Net station UserService credential database.
Credential Database B
and C
This is the ECLYPSE controller A’s credential database and ECLYPSE controller B’s credential
database. If EC- gfx Program users are to connect to either of these controllers through the EC-Net
station, the controller’s credential database must have the credentials for EC-Net station’s
RestService. Each credential database must also have the credentials for each user that will login to
ECLYPSE controller A (for example, administrators, direct connection EC- gfx Program users,
ENVYSION users, etc.). See User Management.
