Network Settings
The
Network
menu is used to configure the ECLYPSE controller’s network interface and setup the
wired and wireless network configuration parameters. The available menus are:
£ Ethernet
£ Wireless
£ Diagnostic
Ethernet
The Ethernet screen is used for any wired IP connections that are made through either one of the con-
troller’s
Ethernet Switch Pri
(mary) connector or
Ethernet Switch Sec
(ondary) connector. See Network
Connections for ECY Series Controllers. The Wired IP parameters can be auto-configured when the con-
nected network has a working DHCP server. The alternative is to manually configure the controller’s IP
parameters.

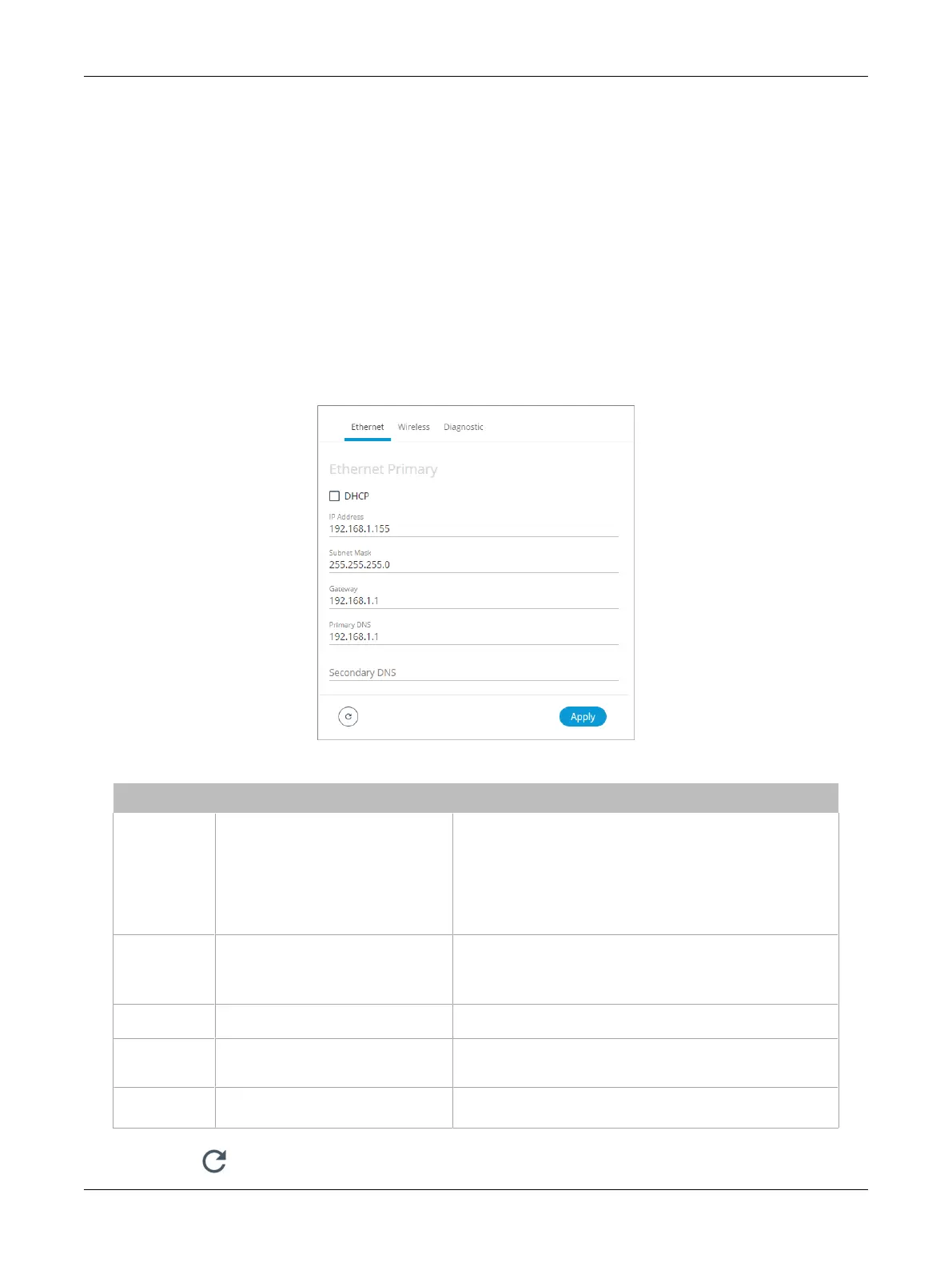

Figure38: Primary Ethernet Configuration in ECLYPSE Web Interface
Option DHCP Client: Enabled DHCP Client: Disabled
DHCP
If the controller is connected to a
network that has an active DHCP
server, enabling this option will
automatically configure the Wired IP
connection parameters. The Wired IP
parameters shown below are read only
(presented for information purposes
only).
If you want to manually configure the controller’s network settings
(to have a fixed IP address for example) or in the case where the
network does not have a DHCP server, disable this option. In this
case, you must set the Wired IP connection parameters shown
below to establish network connectivity.
See also DHCP Versus Manual Network Settings.
IP Address
IP Address provided by the network’s
DHCP server.
Set the IP address for this network device. See IPv4
Communication Fundamentals.
Ensure that this address is unique from all other device on the
LAN including any used for a hot spot’s IP addressing.
Subnet Mask
Subnet mask provided by the network’s
DHCP server.
Set the connected network’s subnetwork mask. See About the
Subnetwork Mask.
Gateway
Gateway IP address provided by the
network’s DHCP server.
The IP address of the default gateway to other networks. This is
usually the IP address of the connected network router. See
Default Gateway.
Primary DNS
Secondary DNS
Primary and secondary DNS IP Address
provided by the network’s DHCP server.
The connected network’s primary and secondary IP address of the
DNS servers. See Domain Name System (DNS).
When making changes to the network settings, click
Apply
to apply and save the changes. You can
click refresh to refresh the information in the screen.
ECLYPSE Web Interface
