Wireless Network Commissioning Architectures
Client to Access Point Configuration
A laptop is connected through Wi-Fi, as a Wi-Fi client, to any ECLYPSE Connected VAV controller
that has its wireless settings configured as an Access Point. The other ECLYPSE Connected VAV
controllers are configured as Wi-Fi Clients and are wirelessly connected to the same Access Point.
With this configuration, the laptop and all the controllers are on the same subnet, so either laptop user
has access to all networked controllers.
Wi
-
Fi Client
Wired IP
Daisy Chain
Wi
-
Fi
Access Point
Wi
-
Fi
Client
Wi
-
Fi
Client
Wi
-
Fi
Client
Wi
-
Fi
Client
Wi
-
Fi
Access Point
Wi
-
Fi
Client
Wi
-
Fi
Client
Wi
-
Fi
Client
Wi
-
Fi
Client
Subnet
1

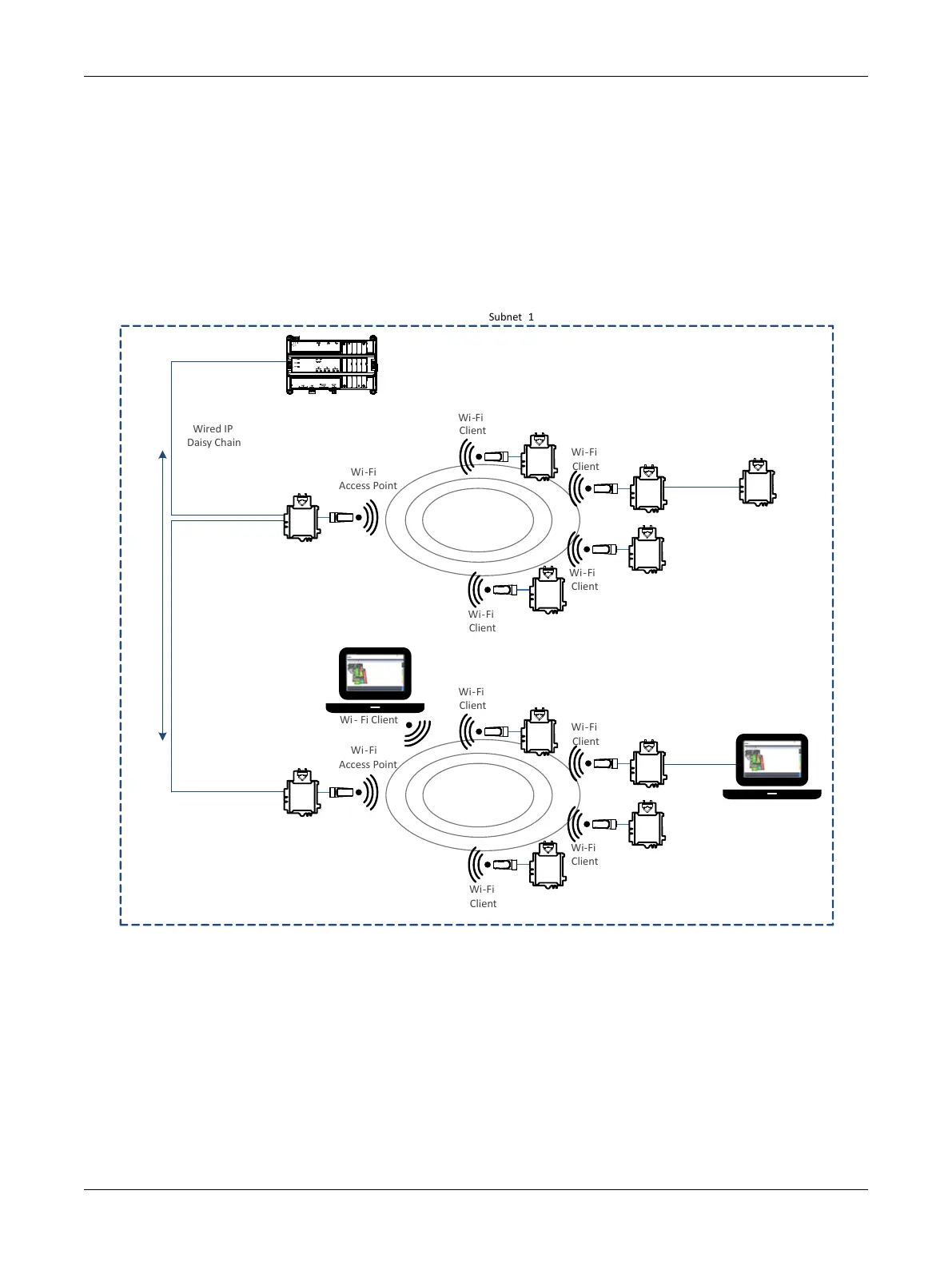

Figure25: Client to Access Point Configuration
