35ECLYPSE APEX
Maximum Number of Wireless Clients or Nodes for an Access Point
A wireless access point can service a maximum of 16 clients or nodes in total. The following examples
show what this limit can be composed of:
Wi-Fi Adapter in
Access Point Mode
Wireless to
Wired Bridge
Wi-Fi Adapter in
Client Mode
Wired IP Wired IP – Up to 15 Controllers

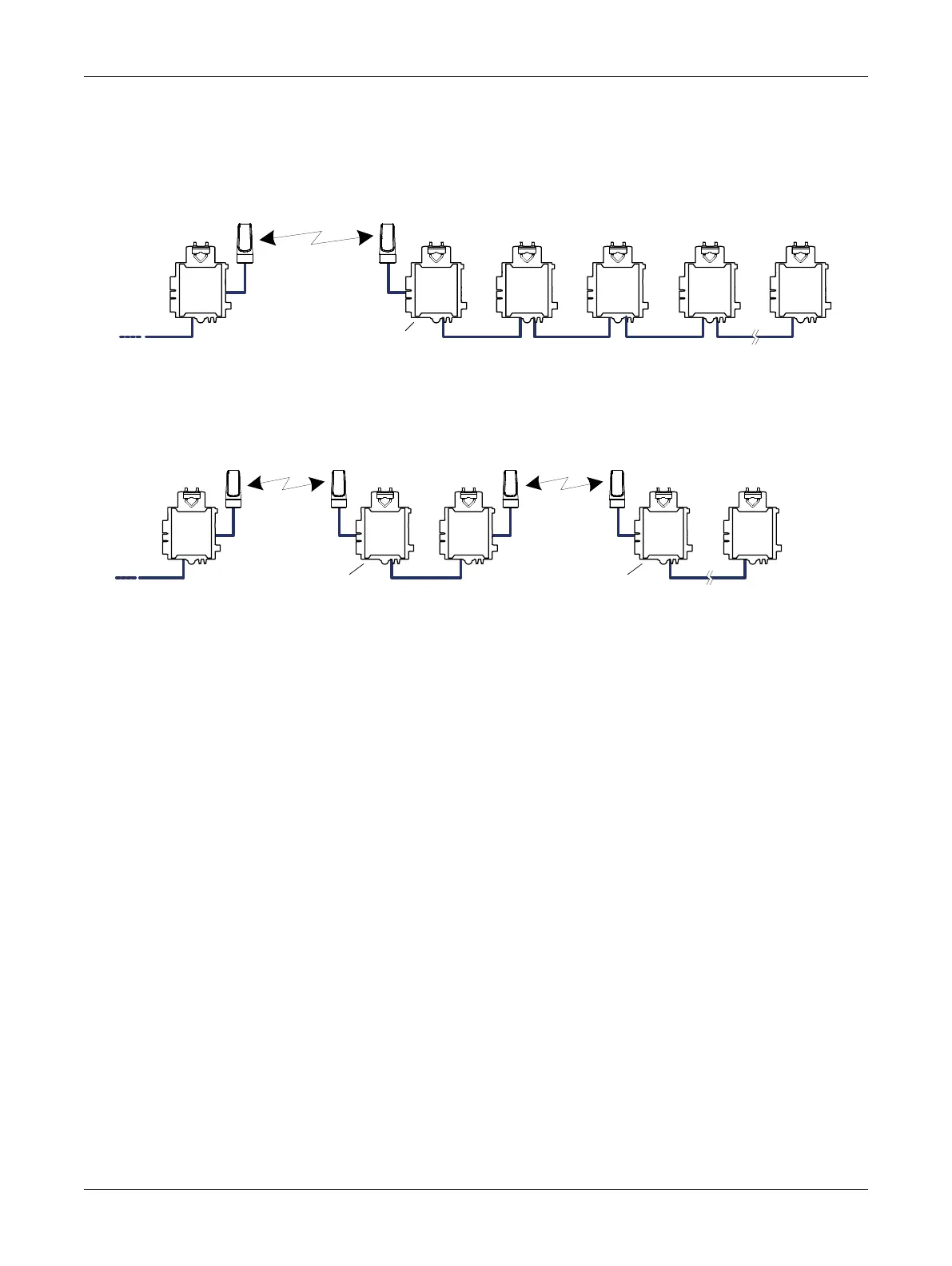

Figure23: Using an ECLYPSE Controller as a Wireless Bridge
£ One wireless bridged controller is connected to as many as 15 daisy-chained wired devices.
Wi-Fi Adapter in
Access Point Mode
Wireless to
Wired Bridge
Wi-Fi Adapter in
Client Mode
Wired IP
Wired IP – Up to 13
Controllers
Wi-Fi Adapter in
Access Point Mode
Wireless to
Wired Bridge
Wi-Fi Adapter in
Client Mode
Figure24: Using an ECLYPSE Controller as a Wireless Bridge
£ One wireless bridged controller is connected to one wired controller that is wirelessly connected to
one wireless bridge that is then connected 13 daisy chained wired devices.
If the access point is a Wi-Fi router:
1. The number of devices is limited by the total number of clients the router is able to support.
2. It can support many controllers acting as wireless to wired bridges.
3. Each wireless to wired bridge controller can support up to 15 controllers.
Connecting IP Devices to an IP Network
