58 ECLYPSE APEX
Routing
This enables the routing of BACnet packets between BACnet MS/TP controllers connected to the
ECLYPSE Connected System Controller’s RS-485 port and BACnet/IP controllers connected to the
ECLYPSE Connected System Controller’s Ethernet Switch ports. For example, routing must be en-
abled for EC-Net to discover the BACnet MS/TP controllers connected to the ECLYPSE Connected
System Controller’s RS-485 port.

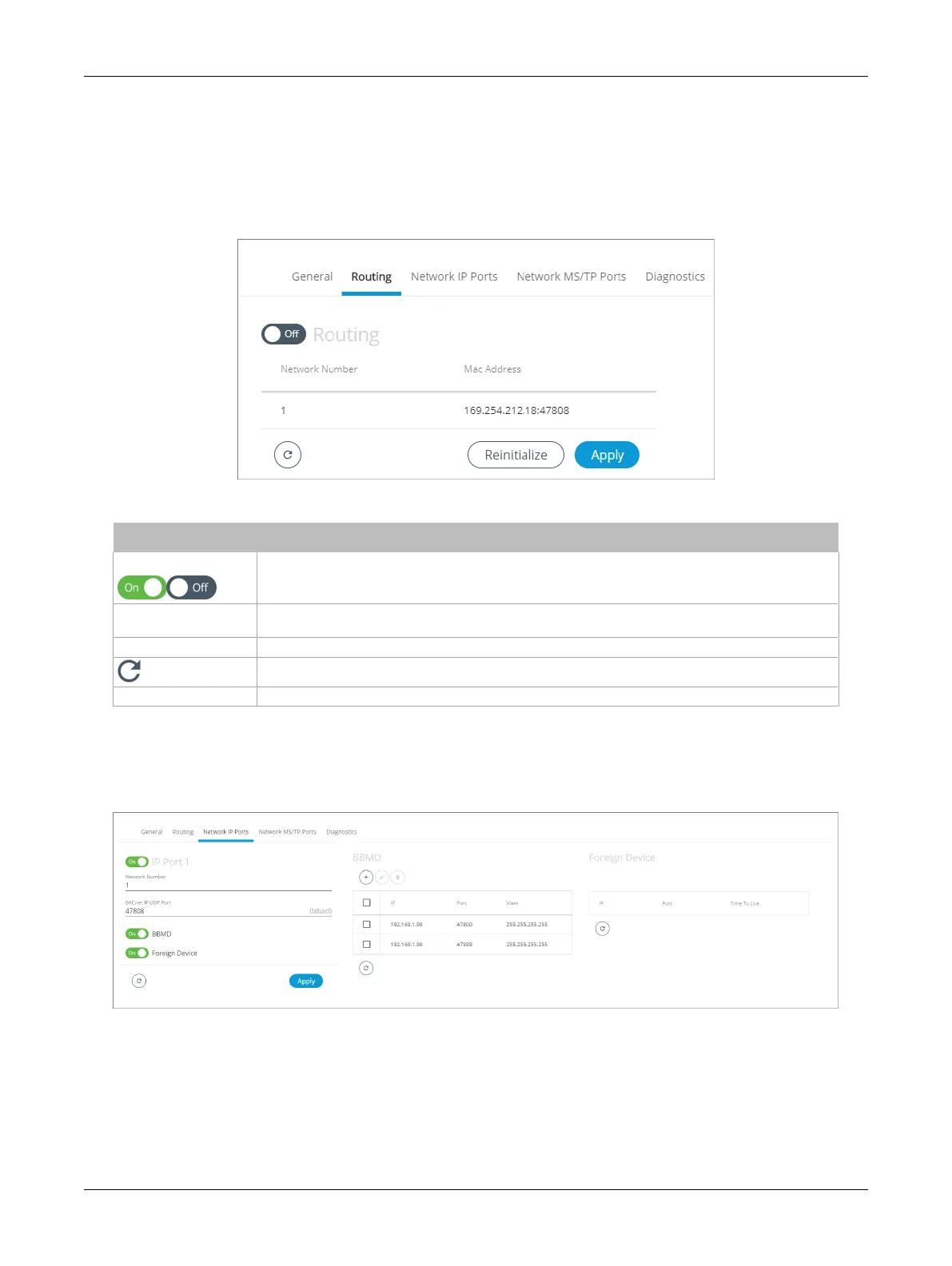

Figure43: BACnet Routing Configuration
Item Description
On / Off
Enables/disable the routing of BACnet packets between BACnet MS/TP controllers connected to the
ECLYPSE Connected System Controller’s RS-485 port and BACnet/IP controllers connected to the
ECLYPSE Connected System Controller’s Ethernet Switch ports.
Network Number
Network number that identifies a LAN for routing purposes. All controllers with the same network
number are members of the same logical BACnet network. See Device Addressing.
Mac Address Device Mac address.
Click to refresh the information in the list.
Apply Click
Apply
to apply and save the changes.
Network IP Ports
This sets the IP network configuration parameters (on-board port) as well as the BACnet Broadcast
Management Device (BBMD) and Foreign Device for intranetwork connectivity.
Figure44: BACnet IP Configuration - Network IP Ports
ECLYPSE Web Interface
