Bar Code
ID: MAC Address
Model: APEX
For example, for a MAC Address of : 76:a5:04:cd:4a:d1
The factory-default name for the Wi-Fi access point is ECLYPSE-CD4AD1
The factory-default hostname is eclypse-cd4ad1.local
Label

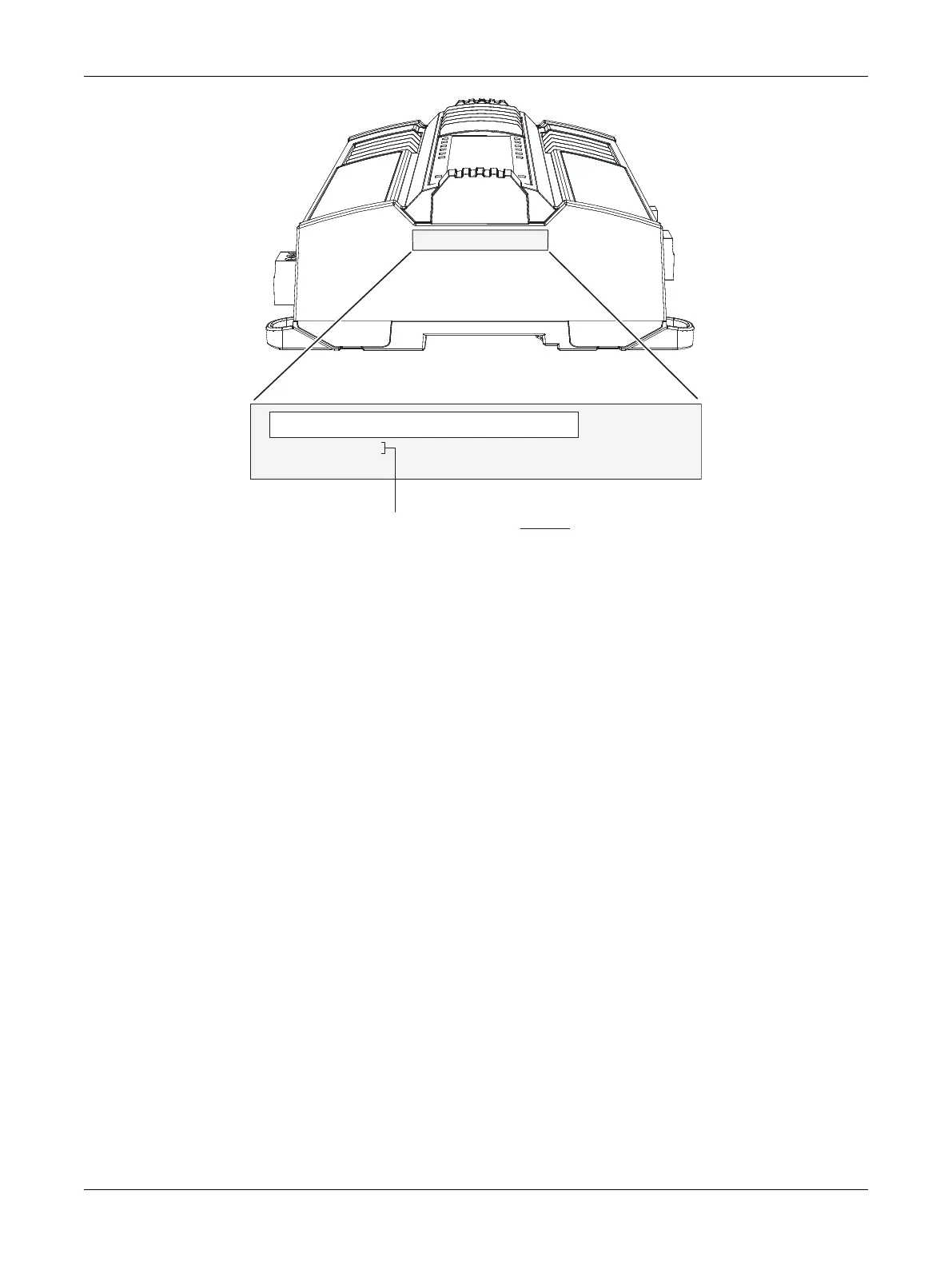

Figure27: Finding the Controller’s MAC Address
Ethernet Network Connection
Depending on the controller model, the way the controller is connected to the network will change ac-
cording to whether the controller is a Power over Ethernet (PoE) model or not.
£ For non-PoE controller models, see Network Connections for ECY Series Controllers.
£ For the ECY-VAV-PoE controller, see Network Connections for ECY-VAV-PoE Model Controllers.
See also Connecting IP Devices to an IP Network for network wiring considerations.
Network Connections for ECY Series Controllers
Connect the controller to the network as follows:
1. Connect your PC’s network card to the controller’s PRI Ethernet port using a Category 5e Ethernet
cable.
If you are commissioning more than one controller, connect the controllers and PC to a network
switch. Two or more controllers can be connected to the network by daisy-chaining them together by
using Cat 5e network Cables to connect the
Ethernet Switch Sec
(ondary) connector of one controller
to the
Ethernet Switch Pri
(mary) connector of the next controller.
