Dnepr MT9 - Diagram of the Electrical Equipment and Colour Coding of Wires

~
-l
il , r
2 J

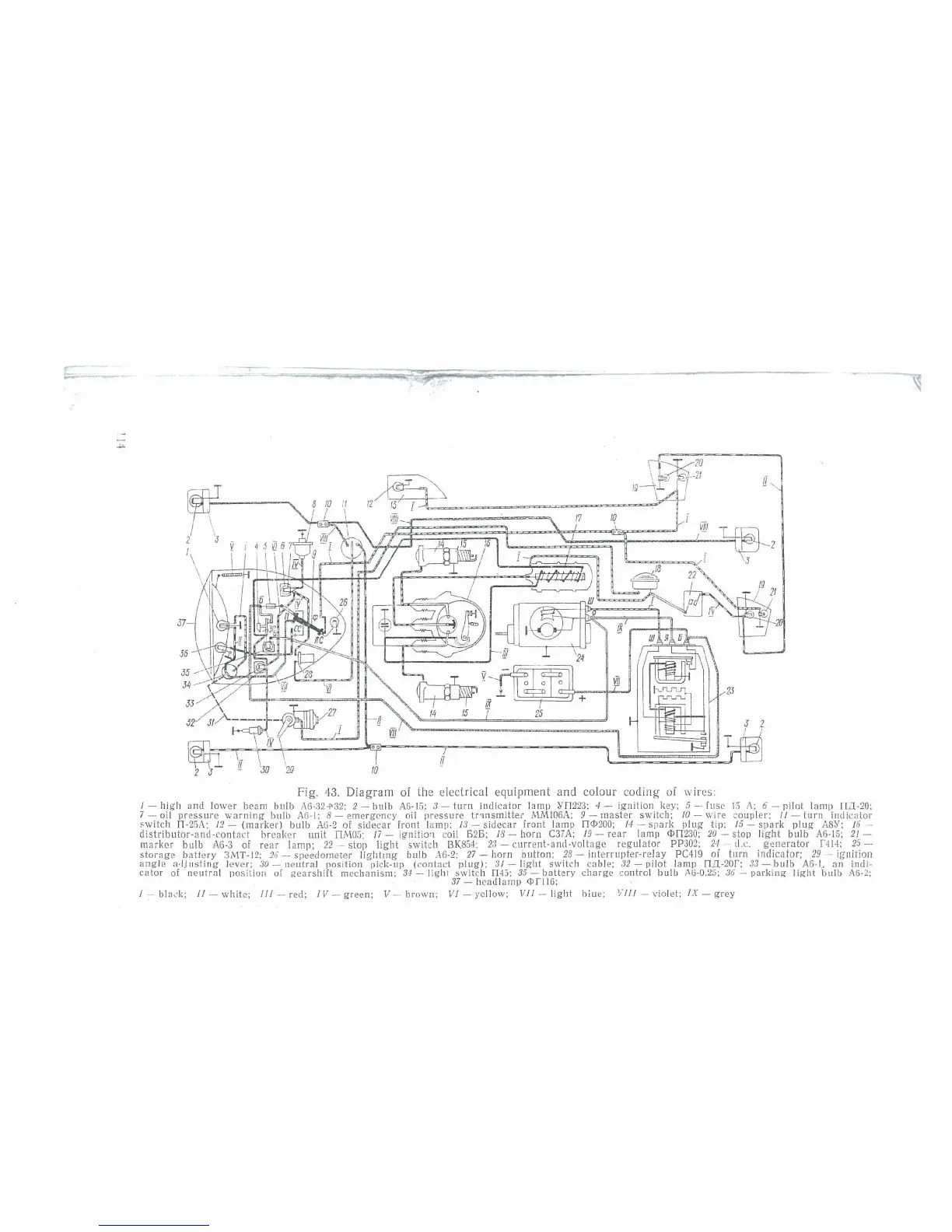

Fig. 43. Diagram of the eleclrical equ ipment and colour coding of wi res:
I - hi gh and low er beam bulb AG-32;>32: 2 - bulb AG-15; 3- turn ind icator lamp :Y n22 3; 4- ignition key; 5- fu se 15 i\; 6- pilot lamp 11;1-20;
7 ----:- oil pr ess ur e \Varning bulb AG-1; 8- e merg ency oil pressure tr'=l nsm itter J\1M \0 6A; 9- mast er swit ch; 10 - wi re coupler; II - turn indic ator
"v1tch TI-25A: 12 - (marker) bulb .-\.G-2 of sidecar front lamp; / 3- sidecar front lamp n<I> 20 0; 14 -- spark p lu g tip: 15 - spark plug A8:Y; f (j --
distributor- and-contact brcal <er unit TIJ>\05; /7 - i!!nition c oil 525; 18- horn C37A; 19 - rear lamp <~n230; 2 0- stop li ght bulb A6-15; 21-
ma r ker bulb A6 -3 or rear lam p; 22 - stop l ight switch BK SS<l: 23- c urrent-and-volt age reg ulator PP30 2; 24 d.c. ge ne rator f414; 2 5-
storage batt e ry 3MT-12; 26- speedometer Ji gl1tlng bulb AG·2; 27- horn outton; 28- int e rrupt er-relay PC419 of turn indicator; 29 - ig niti on
<.~ ng /e a •IJ n:::ding lever; 30- ne utra l position pick· up (co nlact plug) ; 31 - li ght swit ch c abl e; 32- pilot l amp n )l-20f; 33- bu lb A6-l., an imli-
cator of ne utnll po silio n or geo. rs hift m ec hanism; 34- li ght swi tch fl 45; 35- batter y charge co ntrol bulb /16-0.2:3; 36- parking light bulb A6-2;
37- l1 ea dlamp <l>rtlG;
I - blii, ·k ; II - whit e; //I - red; IV- green; V - brown; Vi - ye llow; VII - ligiJt hiu e; 'ill/ - vio let; IX- grey
~
