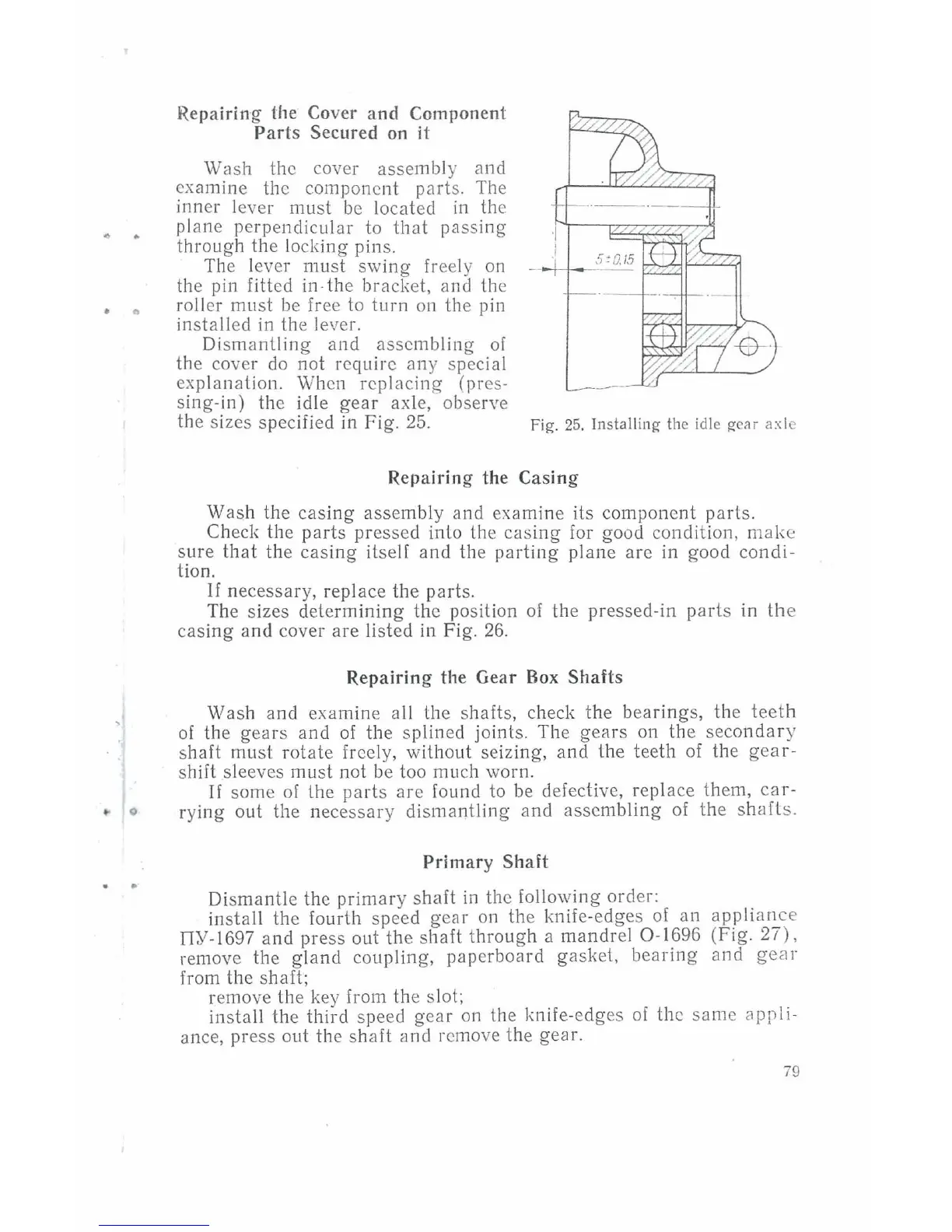

Repairing the Cover and Component
Parts Secured on it
Wash the cover assembly and
exam in e the compone nt parts. The
inner l ever must be located in the
plane perpendicular to that passing
t hrou gh th e lockin g pins.
The l
ever mu st swing freely on
the pin
fitt ed in the brack et, and the
roller
must be free to turn on the pin
installed in the lever.
Dismanlling and assembling of
the cover do not require any special
expl
anatio n. When replacing (pres-
s
in g-in) th e idle gear axle, observe
the sizes spec ifi ed in Fig. 25. Fig. 25 . I nstalling the idle gear axl e
Repairing the Casing
W as h th e casing assembly and examine its component pa rt s.
Check the part s pre sse d inlo the cas ing for good cond ition, make
sure that th e ca s ing it se lf a nd the parting plan e arc in good condi-
tion.
If necessar y, replace th e part s.
The sizes dete
rmining the position of the pressed- in parts in the
cas ing and cover are listed in Fig. 26.
Repairing the Gear Box Shafts
Wa sh and examine a ll the sh afts , check the bea ring s, the t eet h
of the gears and of the splined joint s. Th e gears on th e seconda ry
s
haft must rotate freely, witho ut seizing, and lh e te e th of the gear-
shift sleeves mu st not be too mu ch worn.
If some of lhe pa rts are found to be defective, repl ace them, ca r-
~ o ryi ng out th e n ecessary di smantli ng and assemb ling of the sh afts.
Primary Shaft
Di sma ntl e the primary shaft in the follovving orde r:
in sta ll the fourth speed gear on the knife-edges of an app li ance
TI Y -1 697 a nd pre ss out the s haft thro ugh a mandr el 0-1696 (Fig . 27),
remove the gl and coupling, paperboard gasl<et, bearing and gear
from the shaft;
remove th e key from th e slot;
insta ll the third speed gear on the knife-ed ges of the same app li-
ance, press o ut th e sh aft and remove the gear.
79
