using a specia l appliance PI1-1690, in se rt the clutch release rod
toge th er with the gland into the ope ning of ·lhe pri ma ry s hall so
l hat the sq ua re e nd of the rod can ente r the square hole of the clutch
pressure disk. Before in sta llation, slig htl y grea se th e glar1d and the
rod neck for the g l and. When installing , tak e care not to d<~mage the
g lan d;
fit the rod was her;
in se rl th e thrust ba ll bea ring a fter first lu bricati ng it with
g r ease;

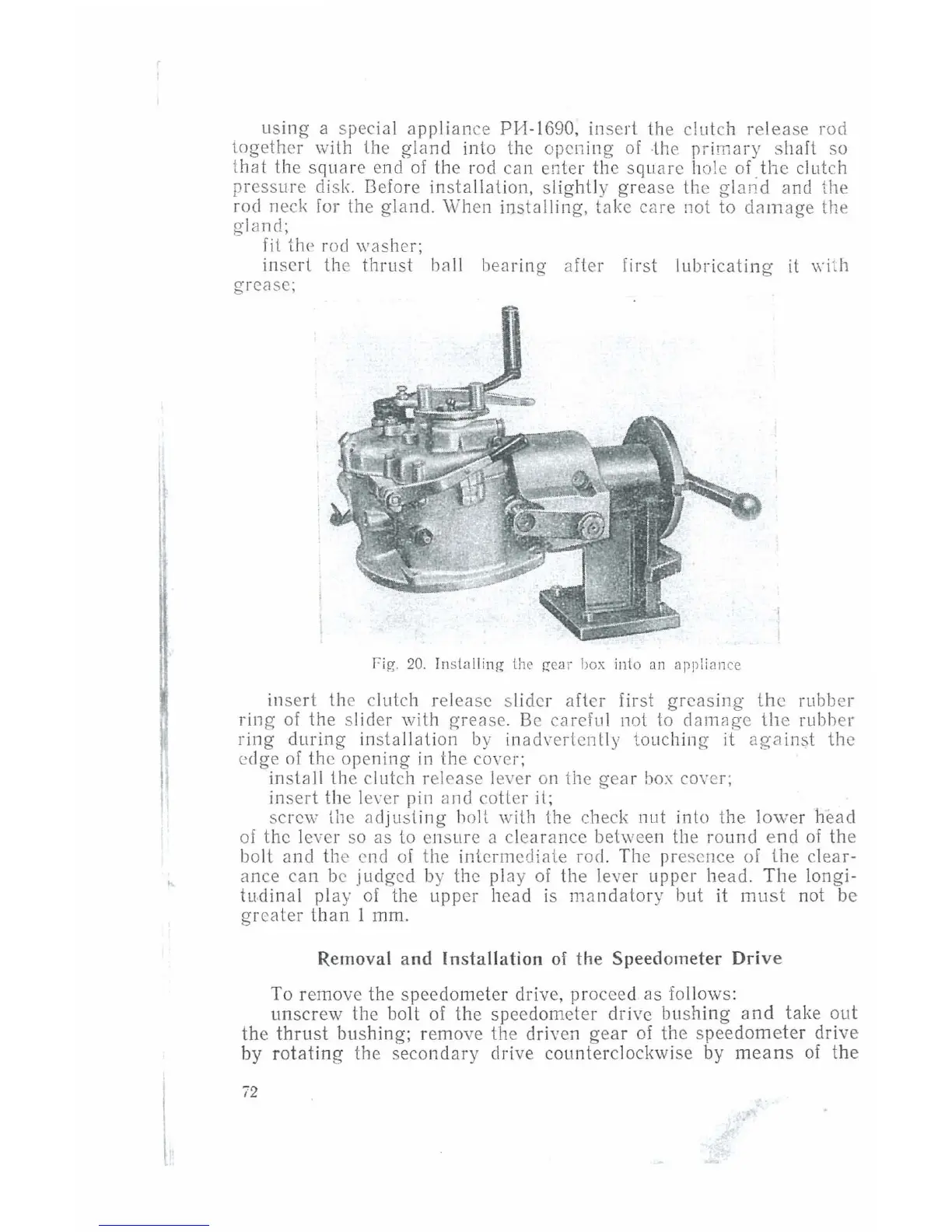

f'i v,. 20. In s talling ihr gear box int o an app liance
in se rt the c lut ch rel ease s li der after first greasing the rubber
rin g of the slider with grease. Be ca reful not to damilge th e rubber
ring during ins tallation by inadvert en tl y to uching it aga in st th e
e dg e o[ the opening in the cover;
install the clutch rel ease lever on the gea r box coYer;
in se rt th e le\·er pin a nd cotter i!;
sc rew lhe a djusting boll wilh lhe check nut into lhe lowe r head
of the le ve r so as to ens ur e a clea r ance betw een th e round e nd of th e
bolt and th e end of the interm edi ate ro d. Th e pr esence of lh e cl ea r-
ance ca n be judged by the pl ay of the lever upper head. The lon gi-
tu . dinal pla y of the upper h ead is mandatory but it must not be
greater than 1 mm.
Removal and Installation oi the Speedometer Drive
To remove the speedometer drive, proc eed as follows:
unscrew the bolt of the speedometer drive bus hing and take out
the thrust bushing; remo ve the driven gear of the speedo meter drive
by rotating the seco ndary drive counterclockwise by means of the
72
