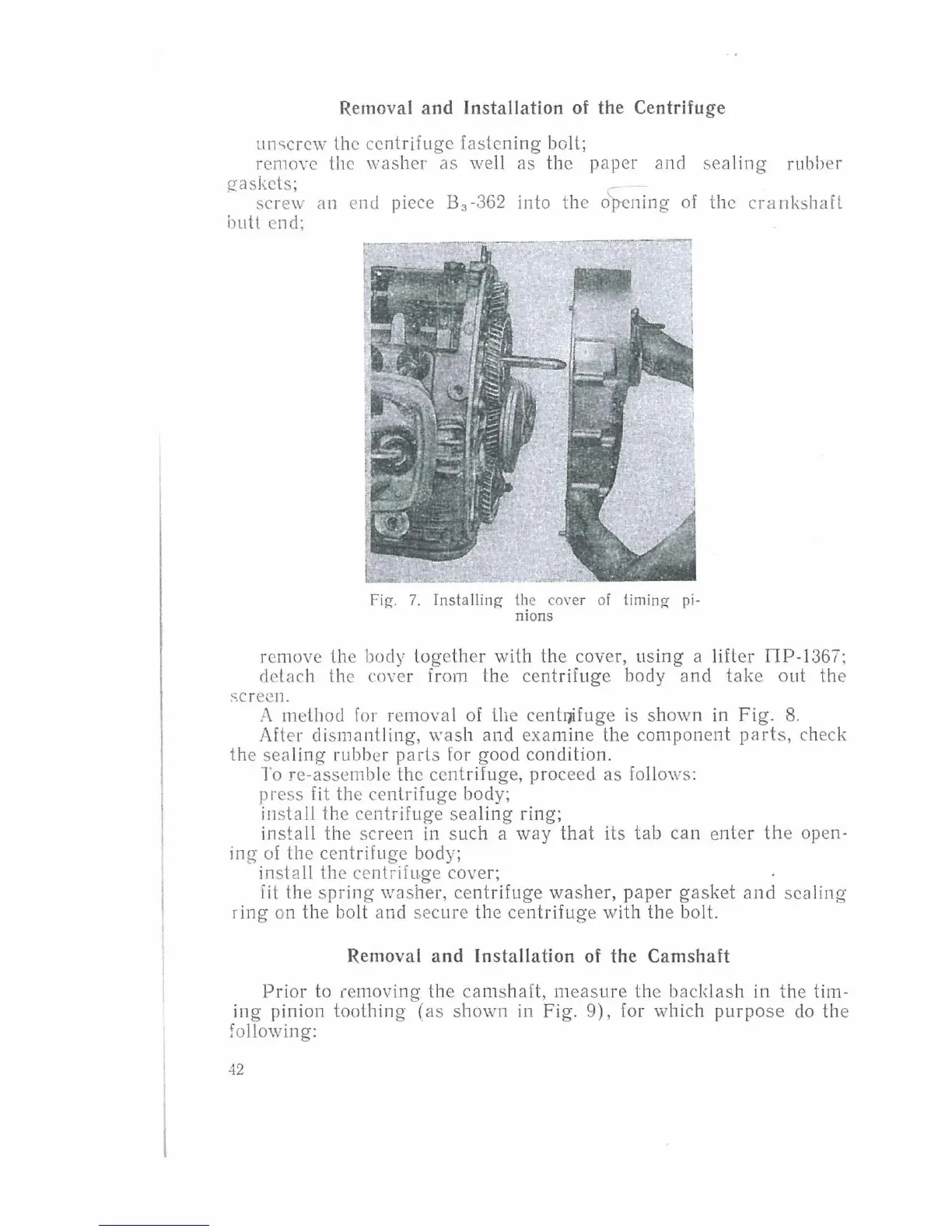

Removal and Installation of the Centrifuge
unc;crcw lhc ce ntrifuge fastening bolt;
r emO \ 'C the was h er as well as the paper and se aling rubber
gaskets ;
screw an e nd piece B
3
-362 int o the o);ening of the cra nk sha ft
butt end;
Fig. 7. Installing the cO\·er of liming pi-
nions
re move lhe body together with the cover, using a lifter TIP-1367:
detach th e cover from the centrifuge body and take out the
screen.
A
me thod for re moval of llie cenlijifuge is shown in Fig . 8.
After di sm antling, was h and exami ne the component parts, check
the sea ling rubber parls for good condition.
To r e-assemb le the cent rifug e, proceed as follows:
pr
ess fi t the centrifuge body;
ins
tall the centrifuge sea ling ring;
ins tall th e sc reen in s uch a way that its tab can e nt er the open-
ing of the centrifuge body;
inst all the centrif uge cover;
fit the spri ng washer, centrifuge washer, paper gasket and scaling·
ring on the bolt and sec ur e the centrifuge with the bolt.
Removal and Installation of the Camshaft
Prior to cemoving the ca ms haft, mea s ure the b ac klash in the tim-
ing pinion toothing (as shown in Fig. 9), for which purpo se do th e
fo llowing:
42
