Dnepr MT9 - Secondary Shaft

Re-assemble the shaft· in reverse order, lhe only difference being
that lhe third speed gear is first pressed on not to the full extent,
but to that part of lhe shaft whose out er diameter is sma ll er, so that
the gear is free to rotate on the shaft. Insert the key into the shaft
slot a nd press on the fourth spee d gear until it is en gaged with the
end face teeth of the third gea r, following w hi ch press the both gears
home.
Press on the bearing, fit the paperboard gasket oncl th en the gland
co upling.
A-A )

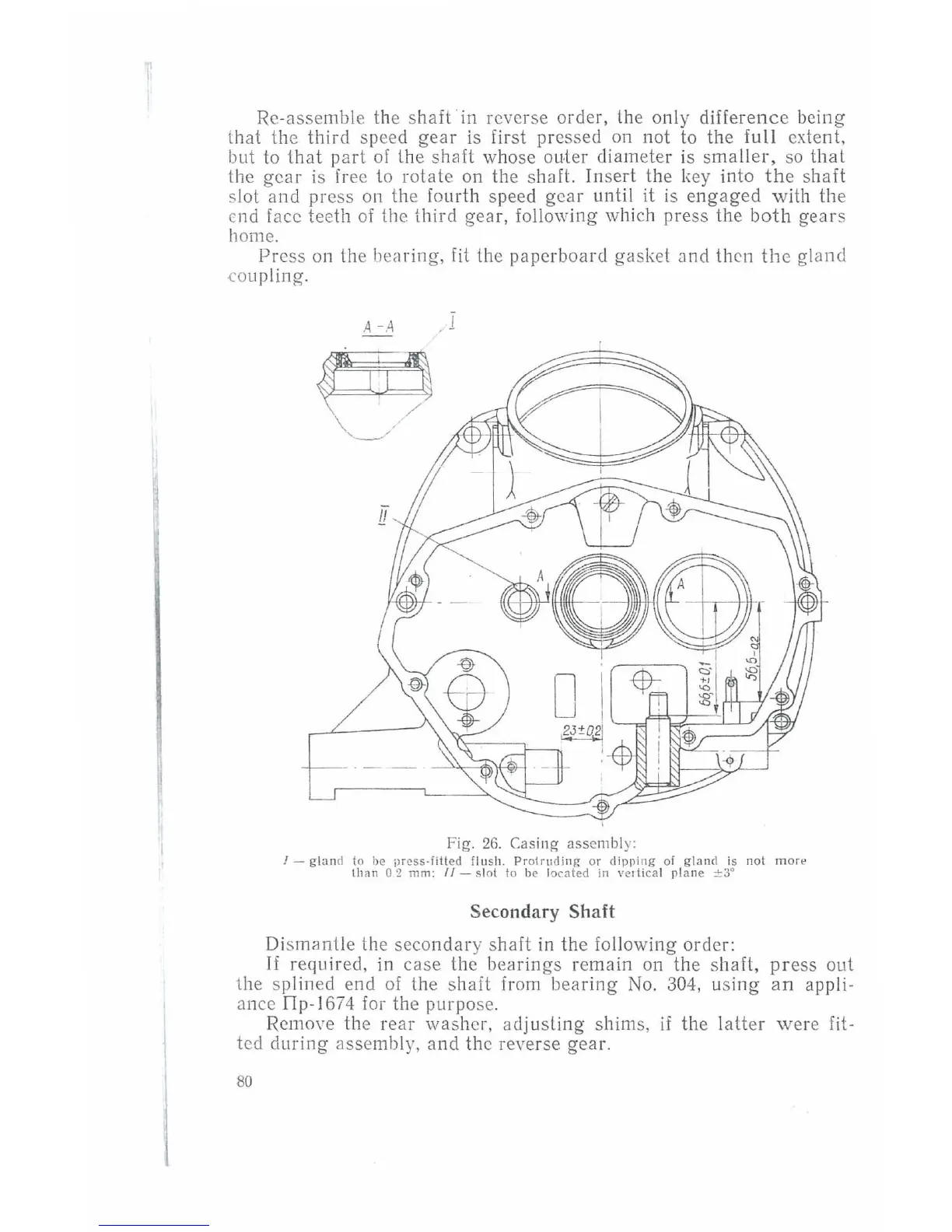

Fig. 26. Casing assembly:
I- gland to be press-iitted flush. Prolruding or dipping of gland is not more
lhan 0 2 mm: //- s l ol to be lo\ated in vei!ical plane ±3°
Secondary Shaft
Di sman tle the secondary shaft in the following order:
If required, in case the bear in gs remain on the shaft, press out
the sp lined end of the shaft from bearing No. 304, usin g an appli-
ance Tip-1674 for the purpose.
Remove th e rear \vasher, adjusti ng shims, if the l atter we re fit-
ted during assembly, and the rever se gea r.
