Dnepr MT9 - Final Steps in Assembling the Gear Box; Installation of the Cover

. ..
. .
install the reverse gear with the fork on the seco ndar y s haf t and,
:1t the sa me time, insert the upper e nd of the reverse l eve r into the
fo rk slot;
shift lhe fork and r everse gear to the end fro nt positi on;
fit th e r ea r ·w as her a nd bearing No. 304 on the secon d ary sh aft;
place a pape rb oa rd gas ket on the parting· plane of the casi n g-;
using an appliance ]\3·
t794, measure th e di stance
(clearance) betw een the gas-
ket and the oute r fa ce of the
rear bea rin g of sec ondary
sha ft (Fig. 22).
If the di sta nce is found
to be less th an 43.8 mm, r e-
move the bea ring . by m ea ns
of a lifter
Dp-1674 a nd fit
a
djusting shims between the
bearing and r ear was her so
that the distance is with in
44 _
0
~ mm;
inst all the s tar tin g me-
cha ni sm gears, two thrus t
\\ as h ers and spring- on the
int ermedi ate shaft;
" .
_ .. -:_:::: _ -~.~ --

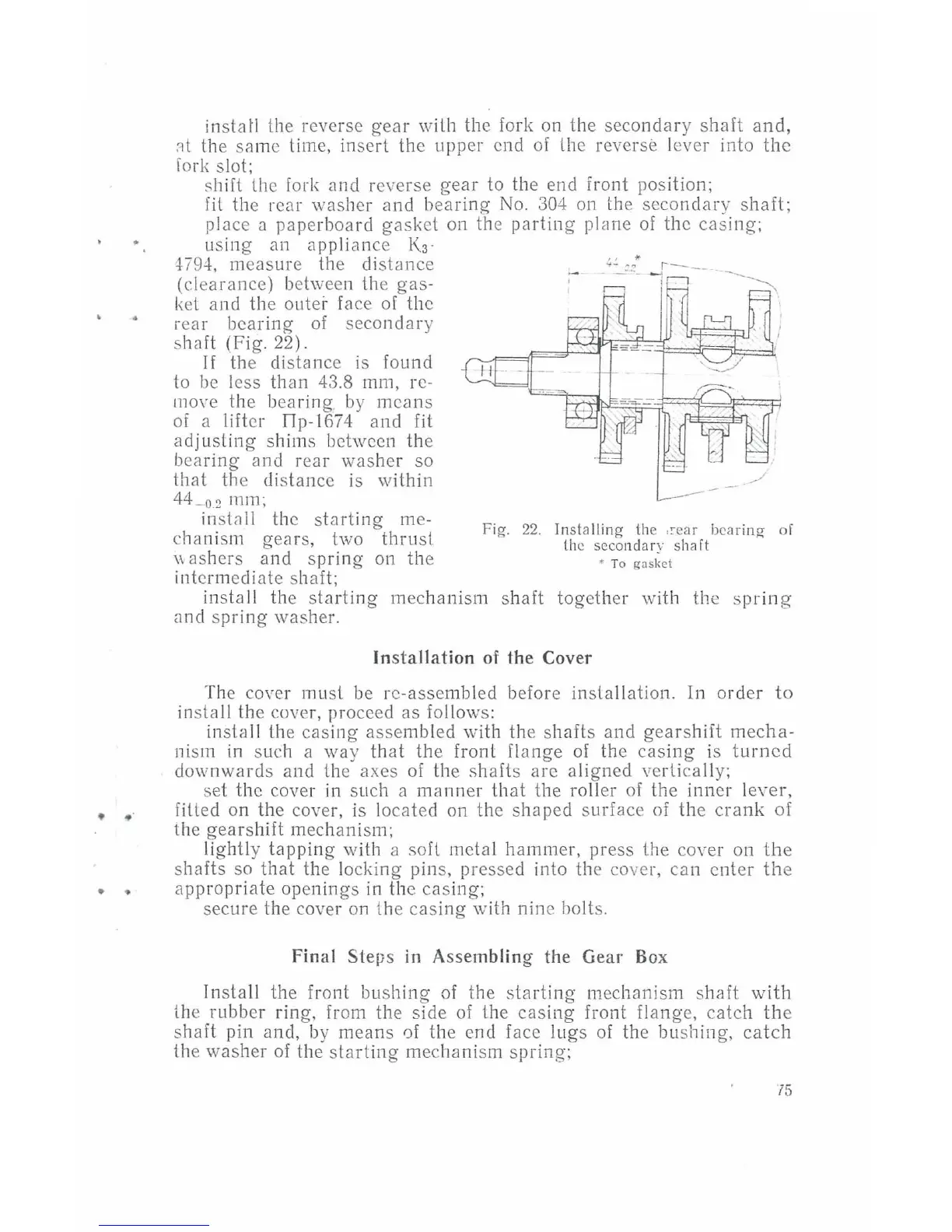

Fig. 22. In sta lling the . >:ear bearing of
the seco nd ary s ha ft
"" To gasket
install th e starting m ec hanism shaft tog e ther with the sp rin g
and
spr ing washer.
Installation of the Cover
The cover musl be re-a sse mbled befor e installation. In order to
in sta ll the cover, proceed as follow s:
install lh e cas ing assembled with the s haft s and gearshift mecha-
nism in such a way that th e front fl a nge of the cas ing is turned
downwards and lhe axes of the shafts are aligned vertica ll y;
se t the cover in such a manner that the roll er of the inn er l ever,
filled on the cover, is lo cate d on the sh aped surface of th e crank of
the gear s hift mechani sm ;
lightl y tapping with a so ft metal hammer, press the cove r on the
sha
fts so that the lo cking pins, pressed in to the cover, can ente r th e
ap
propriate openings in th e cas ing;
secure the cover on lhe cas ing w ith nin e bolts.
Final Steps in Assembling the Gear Box
Install the front bushing of the starting- mech anis m sh af t with
the rubb er ring, from th e side of lhe cas ing front fla ng e, ca t ch th e
sh
af t pin and, by means of the e nd fac e lugs of the bu shin g- , catch
lhe was her of the start ing mec hani sm spring-;
