V.
REPAIRING THE GEAR
BOX
(the
gear
box removed from the motorcycle)
Th
; cross-sectional view
of
the
gear
box and lay-out
of
the
shafts
are
present<"rl
in
Fig
s.
18
and 19.

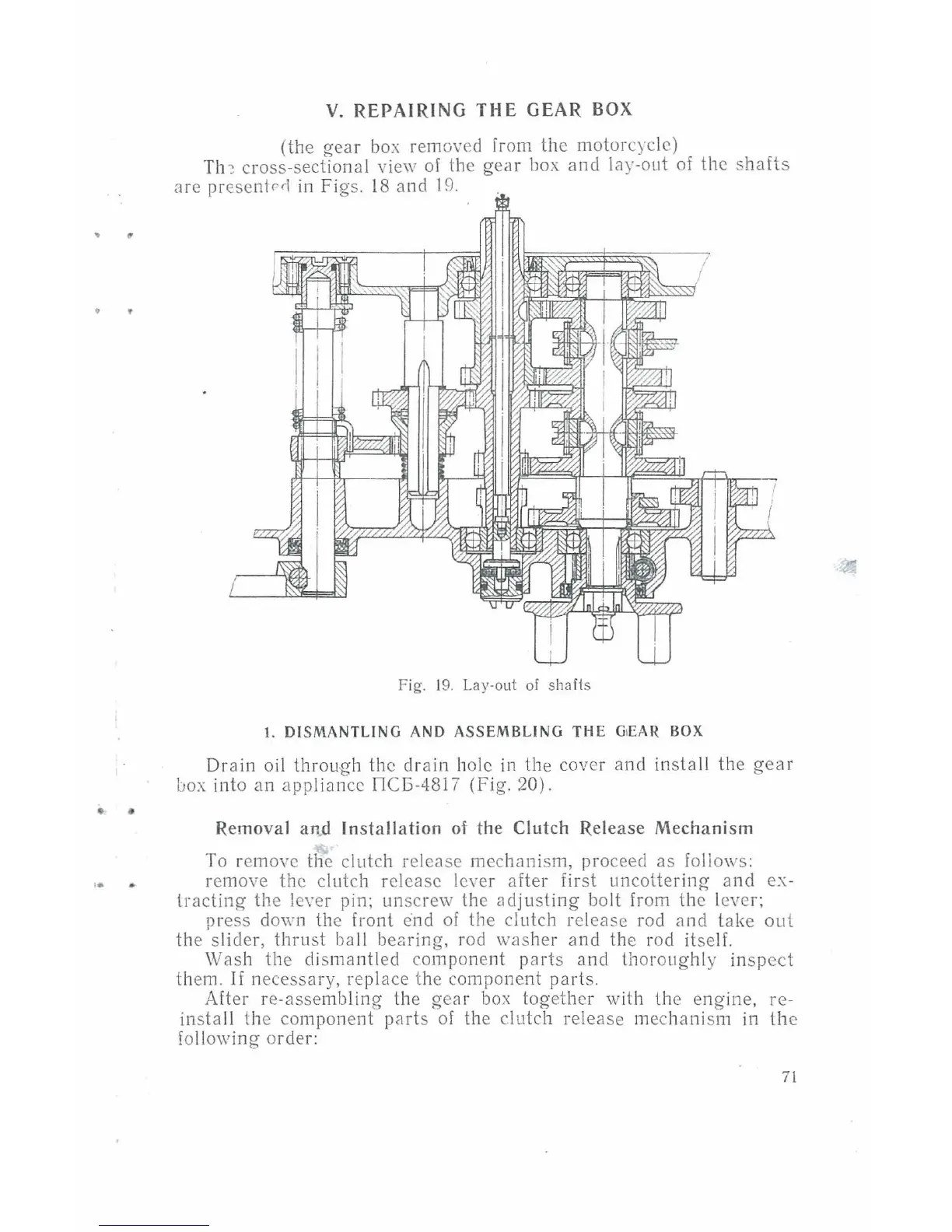

Fig. 1
9.
Lay-out of shafts
I.
DI
SMA
NTLING
AND
ASSEMBLING
THE
GEAR
BOX
Drain oil through the drain hole
in
the cover and install the
gear
box into an appliance
nC5-4817
(Fi
g.
20).
Removal
an
.d Installation
of
the Clutch Release Mechanism
To
remove the clutch release mechanism, proceed as follows:
remove the clutch release
lever after first uncottering and ex-
tracting
the
lewr
pin; unscrew the adju
sting
bolt from
the
lever;
press down
th
e front e·nd
of
the
cl
utch release rod
e111d
take
out
the slider,
thrust
ball bec;ring, rod washer and the rod itse
lf.
Wash the dismantled
co
mp
onent
parts
and thoroughly
in
spect
them.
lf
necessary, replace the component parts.
After re-assembling the
gear
box
together
with lhe
engine
, re-
install the component
parts
of
the clutch release
me
chanism in
the
following order:
7l
