install an appliance
f!P
-
11
35 and unscrew the flywheel
fastening
bolt
by
means
of
a wren
ch
IIP-1256, remove the lock washer;
fix an appliance
DP-1258;
remove the flywheel from the
crankshaft
cone (Fig. 12),
fo
ll
ow-
ing which unfasten the appliance .

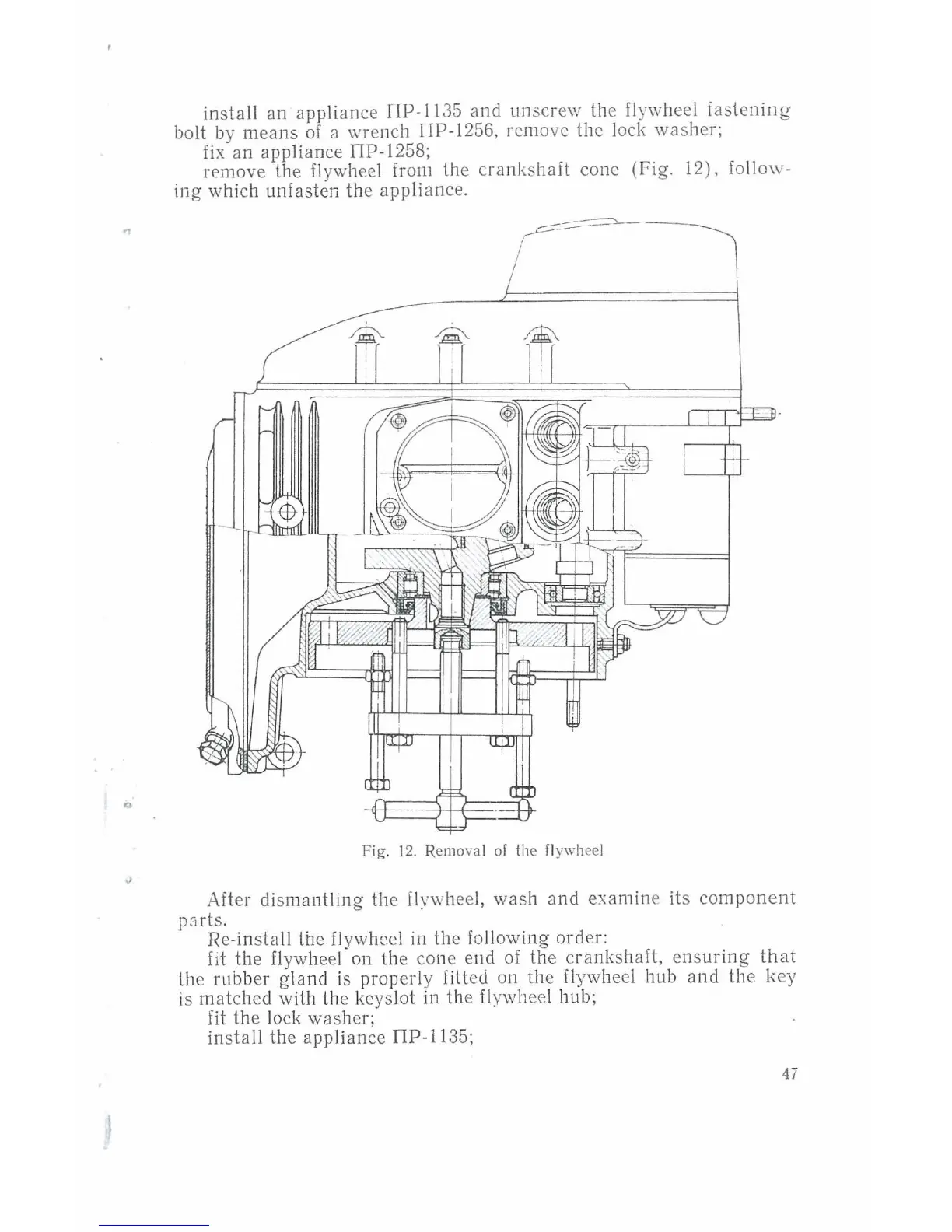

Fig.
12.
Removal
of
the
fl
ywheel
After dismantling the
f
l~
r
wheel,
wash and examine its
component
p::-.rts.
Re-in
sta
ll
the flywheel in the following order:
fit
the
flywheel on the cone end of
the
crankshaft,
ensuring
that
the rubber gland is properly fitted on the flywheel hub
and
the key
is
matched with the keyslot in the
fl
ywheel hub;
fit the lock washer;
install the appliance
DP-1135;
47
