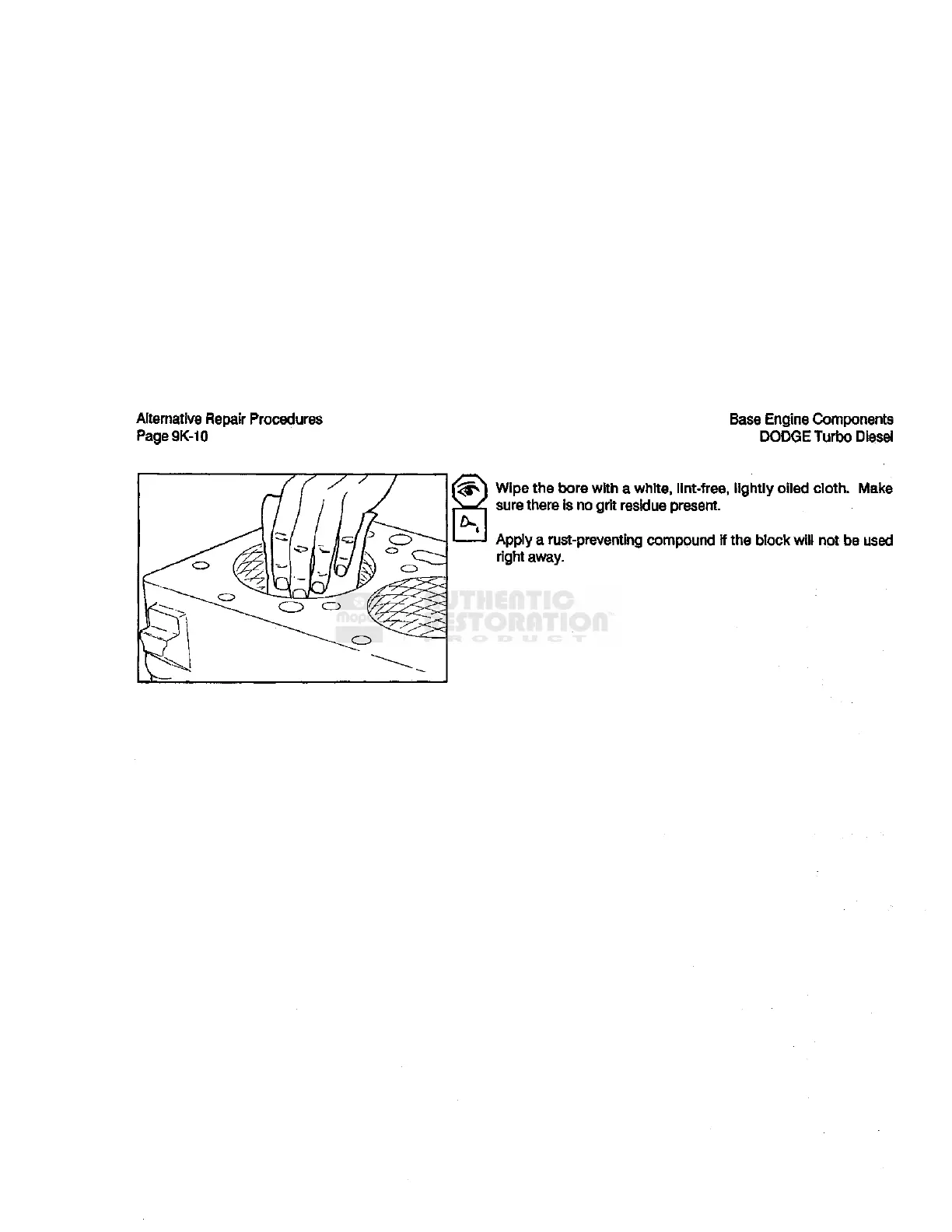

Alternative Repair Procedures

Page9K-10

Base

Engine Components

DODGETurbo Diesel

^j

Wipe

the bore

with

a white,

lint-free,

lightly

oiled cloth.

Make

sure

there is no

grit

residue present.

Apply a rust-preventing compound if the block

will

not be used

right

away.
