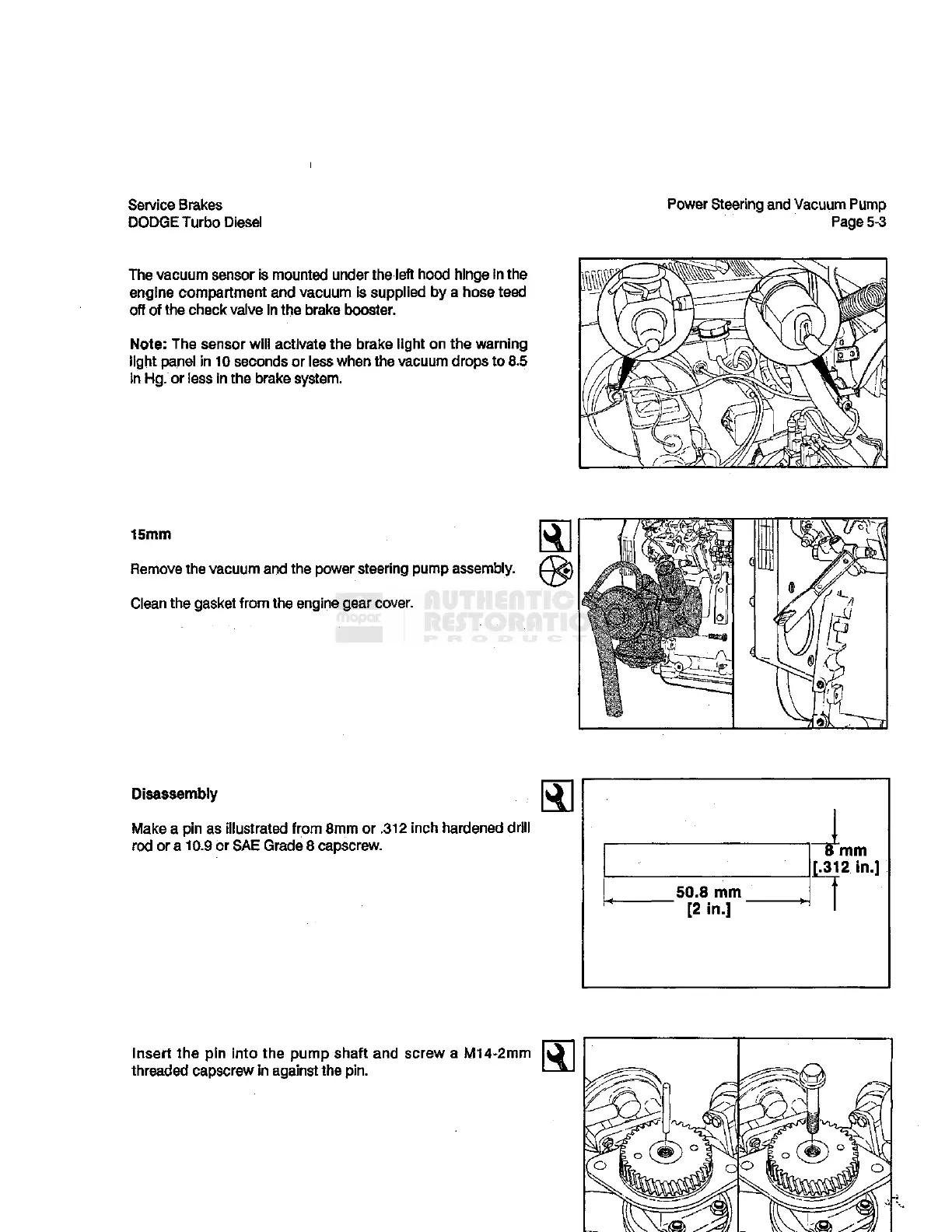

Service
Brakes
DODGE
Turbo Diesel
Power Steering and Vacuum Pump
Page 5-3
The vacuum
sensor
is mounted under the
left
hood hinge in the
engine compartment and vacuum is supplied by a hose teed
off of the check valve in the brake booster.
Note:
The sensor
will
activate the brake
light
on the warning
light
panel in 10
seconds
or
less
when the vacuum drops to 8.5
in Hg. or
less
In the brake
system.
15mm
Remove the vacuum and the power steering pump assembly.
Clean
the gasket
from
the engine gear cover.
Disassembly
Make
a pin as illustrated
from
8mm or .312 inch hardened drill
rod or a 10.9 or
SAE
Grade 8 capscrew.
Insert the pin
into
the pump shaft and screw a
M14-2mm
threaded
capscrew
in against the pin.
