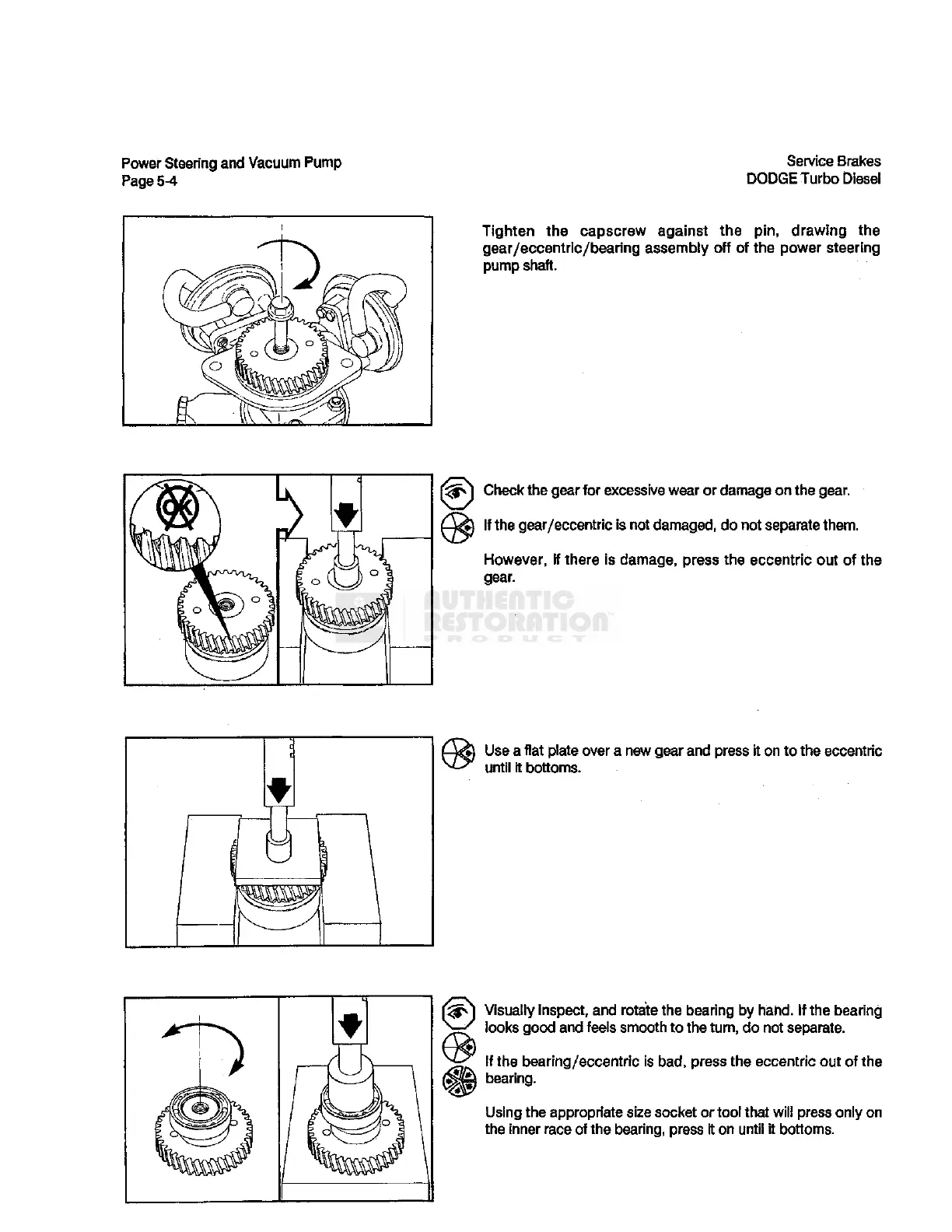

Power Steering and Vacuum Pump
Page 5-4
Service
Brakes
DODGE
Turbo Diesel
Tighten the capscrew against the pin, drawing the
gear/eccentric/bearing assembiy off of the power steering
pump
shaft.
^f*j
Check
the gear for
recessive
wear or damage on the gear.
» If the gear/eccentric is not damaged, do not separate them.
However, if there is damage, press the eccentric out of the
gear.
|) Use a
flat
plate
over a new gear and
press
it on to the eccentric
until
it bottoms.
^f*j Visually
inspect,
and
rotate
the bearing by hand. If the bearing
looks good and feels smooth to the turn, do not separate.
If the bearing/eccentric is bad,
press
the eccentric out of the
dUd^ bearing
Using
the appropriate
size
socket or
tool
that
will
press
only on
the inner race of the bearing,
press
it on
until
it bottoms.
