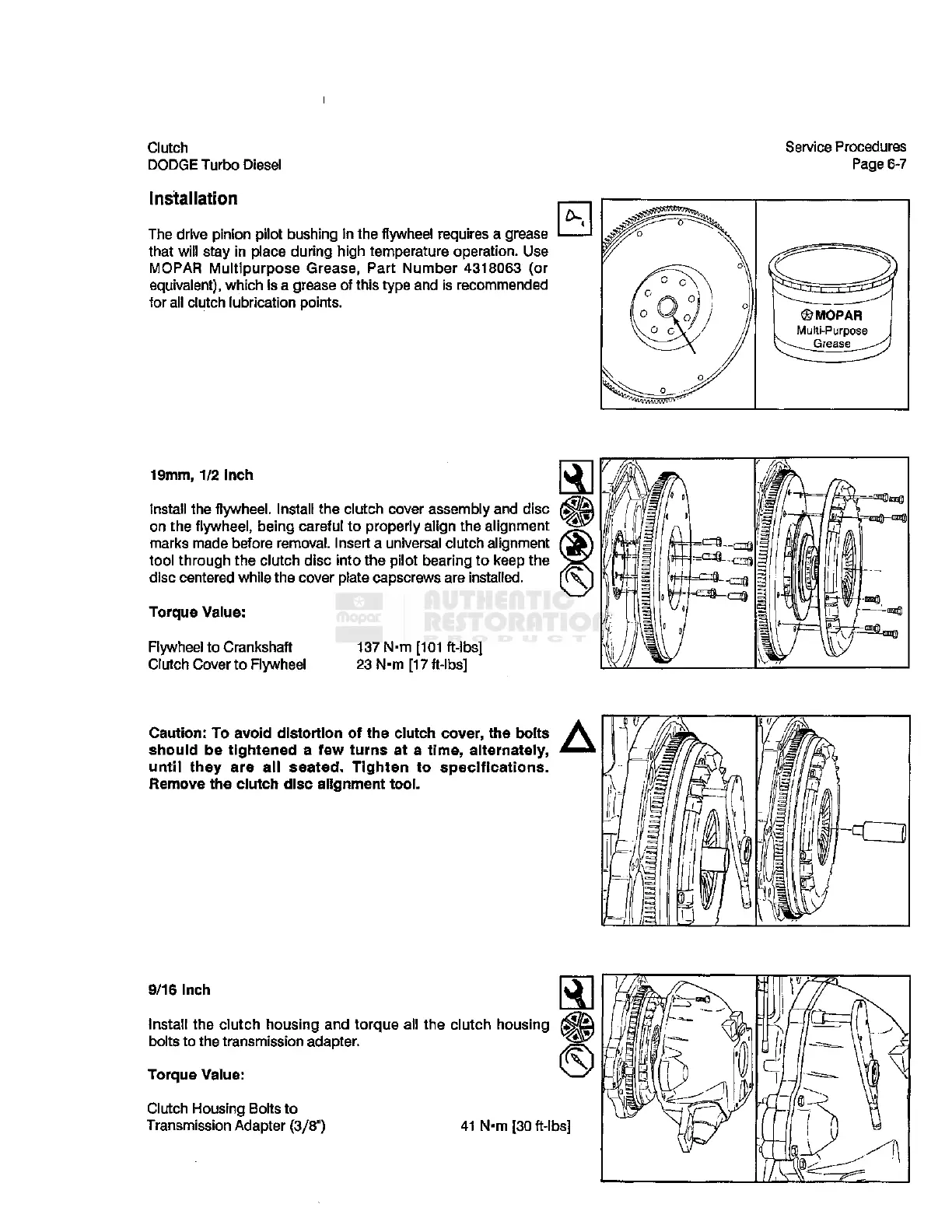

Clutch
DODGE Turbo Diesel
Service Procedures
Page 6-7
The drive pinion pilot bushing in the flywheel requires a grease
that will stay in place during high temperature operation. Use
MOPAR Multipurpose Grease, Part Number 4318063 (or
equivalent), which is a grease of this type and is recommended
for ail clutch lubrication points.
19mm, 1/2 inch
Install the flywheel. Install the clutch cover assembly and disc
on the flywheel, being careful to properly align the alignment
marks made before removal. Insert a universal clutch alignment
tool through the clutch disc into the pilot bearing to keep the
disc centered while the cover plate capscrews are installed.
Torque Value:
Flywheel to Crankshaft
Clutch Cover to Flywheel
137 N-m [101 ft-lbs]
23 N-m [17 ft-lbs]
Caution: To avoid distortion of the clutch cover, the bolts
should be tightened a few turns at a time, alternately,
until they are all seated. Tighten to specifications.
Remove the clutch disc alignment tool.
