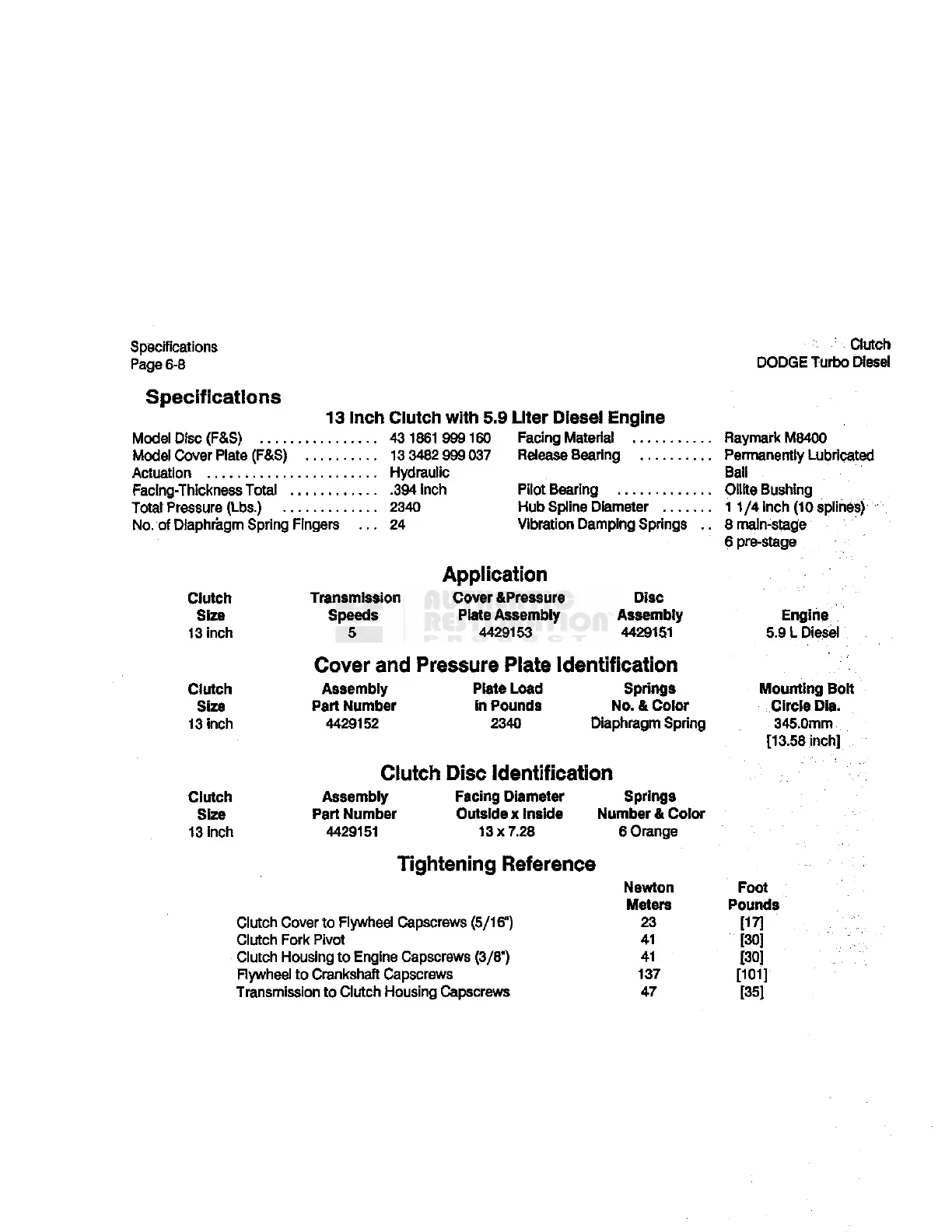

Dodge D250 1990 - Page 89

Specifications
Page 6-8
Clutch
DODGE Turbo Diesel
Specifications
13 Inch Clutch with 5.9 Liter Diesel Engine
Model Disc (F&S) ................ 43 1861 999160
Model Cover Plate (F&S) 13 34S2 999037
Actuation Hydraulic
Facing-Thickness Total 394 inch
Total Pressure (Lbs.) — 2340
No. of Diaphragm Spring Fingers ... 24
Facing Material
Release Bearing
Pilot Bearing
Hub Spline Diameter ....
Vibration Damping Springs
Clutch
Size
13 inch
Clutch
Size
13 inch
Clutch
Size
13 inch
Transmission
Speeds
5
Application
Cover &Pressure
Plate Assembly
4429153
Disc
Assembly
4429151
Cover and Pressure Plate Identification
Plate Load Springs
Assembly
Part Number
4429152
in Pounds
2340
No, & Color
Diaphragm Spring
Raymark M8400
Permanently Lubricated
Bail
Oiiite Bushing
1 1/4 inch (10 splines)
8 main-stage
6 pre-stage
Engine
5.9 L Diesel
Mounting Bolt
Circle Dia.
345.0mm
[13.58 inch]
Assembly
Part Number
4429151
Clutch Disc Identification
Springs
Number & Color
6 Orange
Facing Diameter
Outside x Inside
13x7,28
Tightening Reference
Clutch Cover to Flywheel Capscrews (5/16")
Clutch Fork Pivot
Clutch Housing to Engine Capscrews (3/8")
Flywheel to Crankshaft Capscrews
Transmission to Clutch Housing Capscrews
Newton
Meters
23
41
41
137
47
Foot
Pounds
im
[30]
[30]
[101]
[35]
