- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
7.5.1.4 Final check
• Check the flawless condition of assembly
(Damage, dirt, and function).
Turbine shaft with bell disk must move freely.
A T T E N T I O N
Risk of property damage and production disruption
In case of wrong assembly, shaping air ring and bell disk can rub
against each other. Shaping air ring and bell disk can be damaged.
Check the distance between shaping air ring and bell disk. The bell
disk should not rub against the shaping air ring.
Pos: 50 /INP/ Bell2/07_05_0 2 Düsenwe chsel_AA @ 56\m od_14931 12255543_2 0.docx @ 617 329 @ 3454 @ 1
7.5.2 Installing and dismantling the nozzle
The nozzle is located at the end of the paint tube and can be reached
via the opening of the turbine shaft.
7.5.2.1 Dismantling the nozzle
Prerequisite is that the bell disk is dismantled.
The disassembly of the bell disk is described in chapter "Installation
and dismantling of bell disk”.
• Place the special tool on the nozzle.
• Unscrew the nozzle counterclockwise from the paint tube using the
special tool.

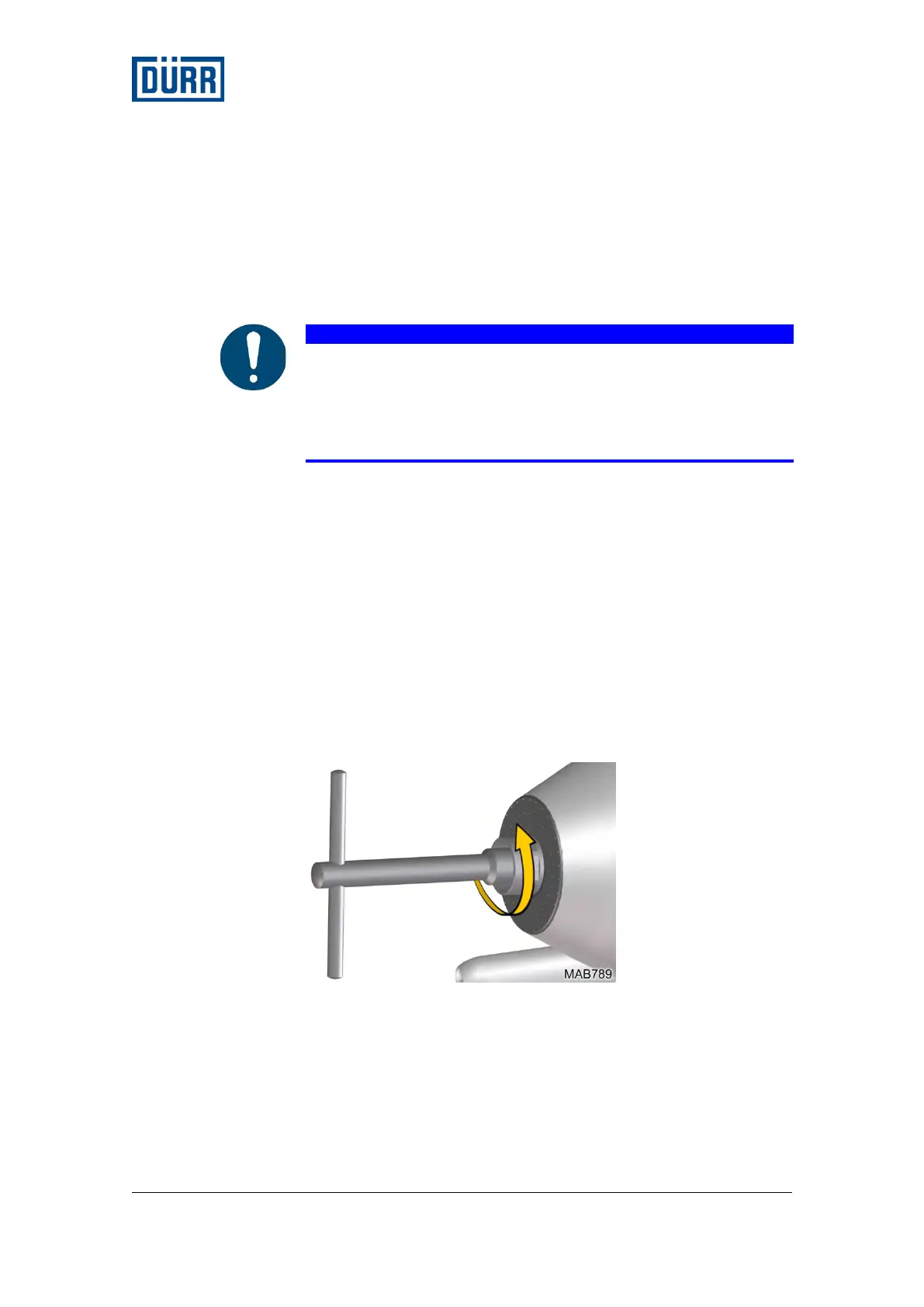

Fig. 53: Unscrew and remove the nozzle with the special tool
Checking the nozzle
• Check the condition of the nozzle.
