- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

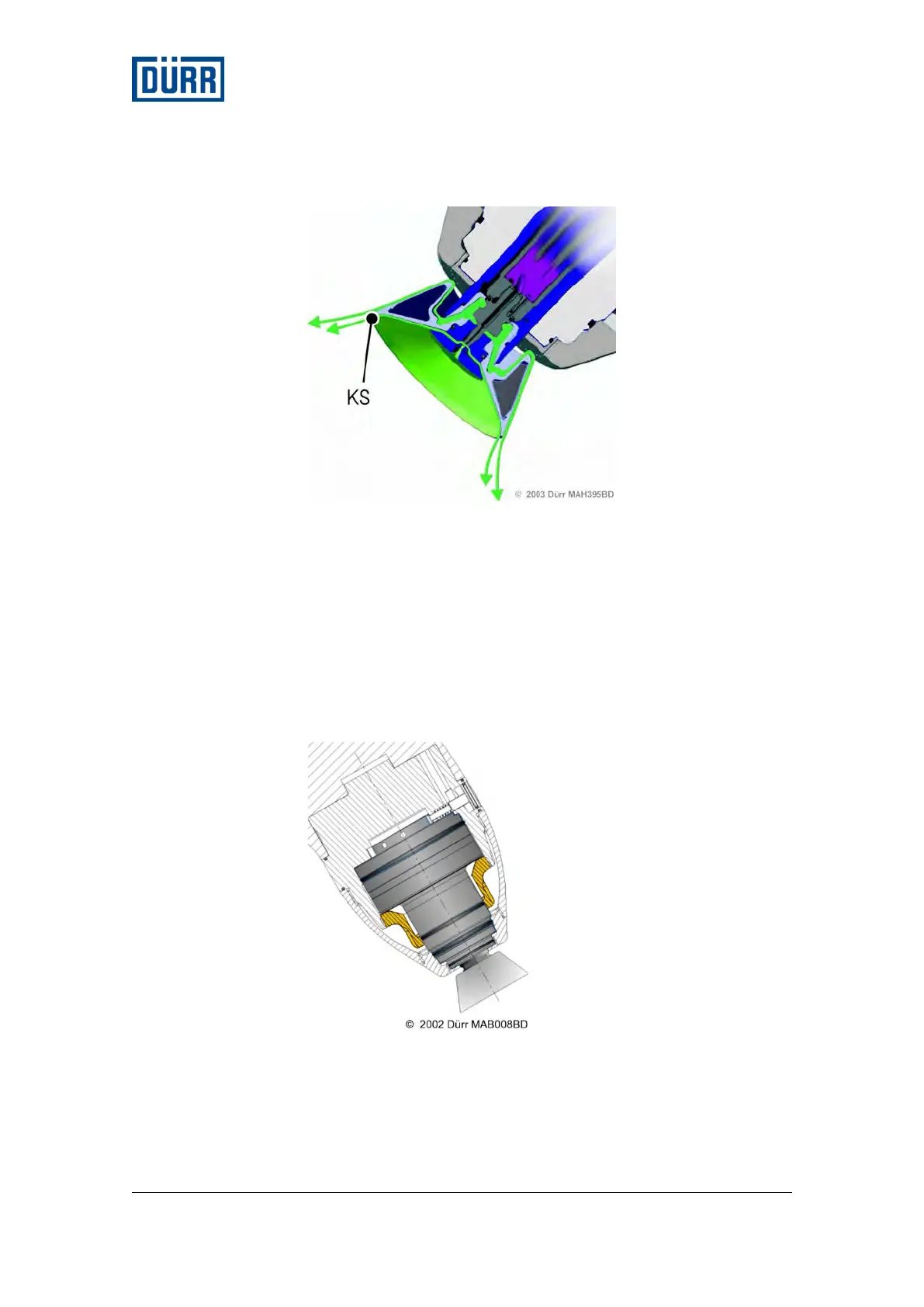

Fig. 6: Rinsing the bell disk
KS rinsing agent for quick rinse
The frequency of the quick purge depends on the intensity of staining
and the requirements in operation.
Pos: 25 /INP/ Bell2/04_03_0 2 Turbine _AA @ 57\mod_ 1506416845 619_20.do cx @ 621629 @ 34 44 @ 1
4.4.2 Turbine
The turbine is a pneumatic motor. The bell disk is screwed to the
turbine shaft end. A large cap nut holds the turbine in the valve block.
Fig. 7: Turbine with cap nut on the atomizer
The turbine consists of the bearing housing and the hollow shaft. The
shaft rotates in the bearing housing with no contact to the air bearings.
The shaft is pneumatically driven and braked.
