- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
Finally mount the bell disk if required. Information for mounting the bell
disk can be found in the chapter “Mounting the bell disk”.
Pos: 62 /INP/ Bell2/08_06 T urbine Montag e @ 57\mod_ 1503999877 195_20.do cx @ 620193 @ 2 333 @ 1
9.2 Mounting the turbine
To dismantle the turbine, the atomizer body must be dismantled. The
information regarding dismantling the atomizer body is found in the
chapter "Dismantle atomizer body"
9.2.1 Dismantling the turbine

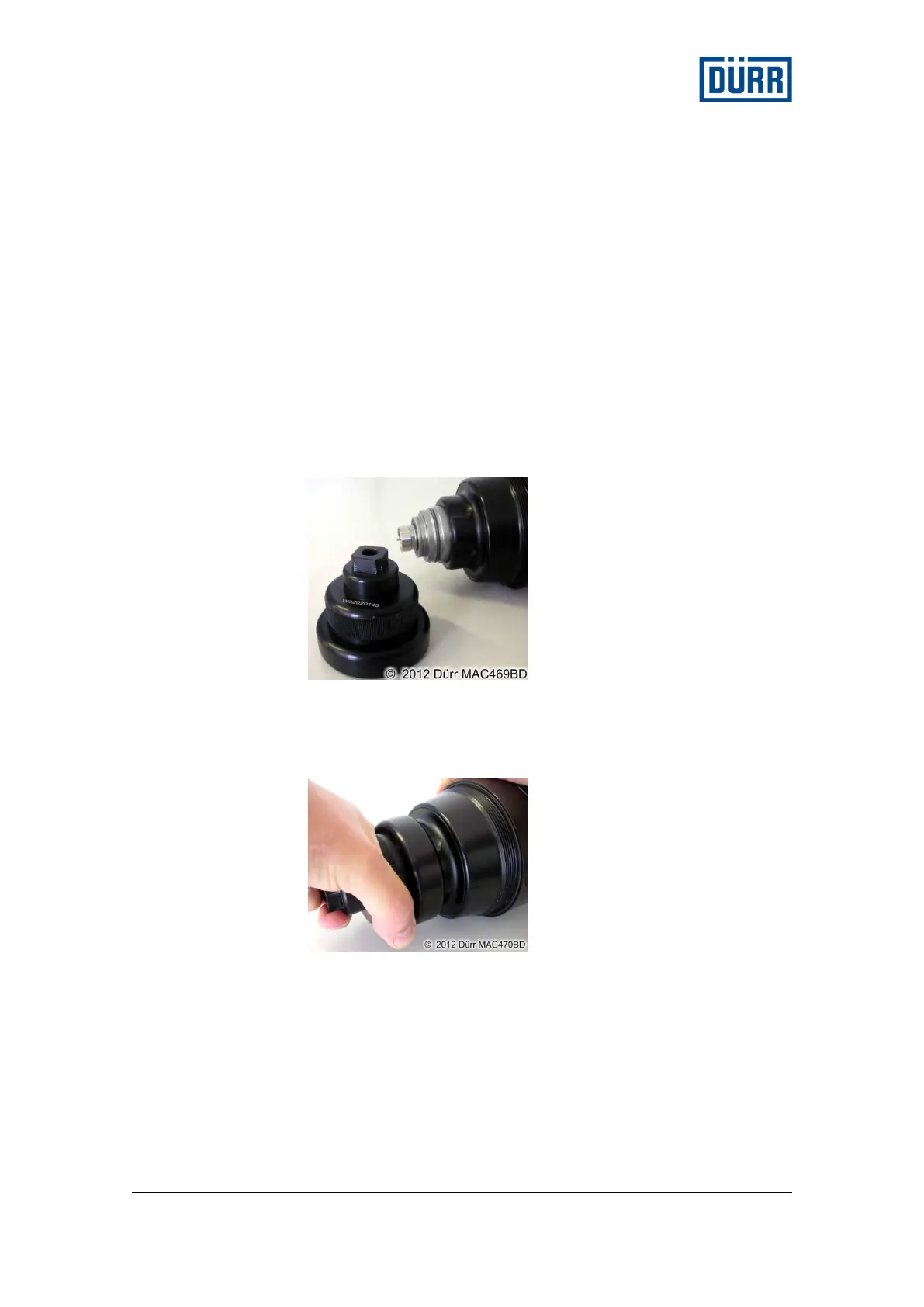

• Place the special tool on the screw cap of the turbine.
Fig. 64: Special tool for screw cap
• Turn the screw cap counterclockwise.
If necessary, a half-inch wrench can be fixed on the special tool.
Fig. 65: Unscrew the screw cap
• Remove the screw cap from the turbine.
