- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
9.6.5 Mounting the paint pipe
The following is prerequisite for mounting the paint pipe on the valve
block:
- The paint pipe is clean.
- The seal of the paint pipe on the valve block is new or like new.
- The flange surface on the valve block is clean and undamaged.
Following steps are to be undertaken:
• Put seal in the sealing surface on the valve block.
• Align the paint pipe to the flange surface of the valve block.
Check the markings in the paint pipe and the valve block.

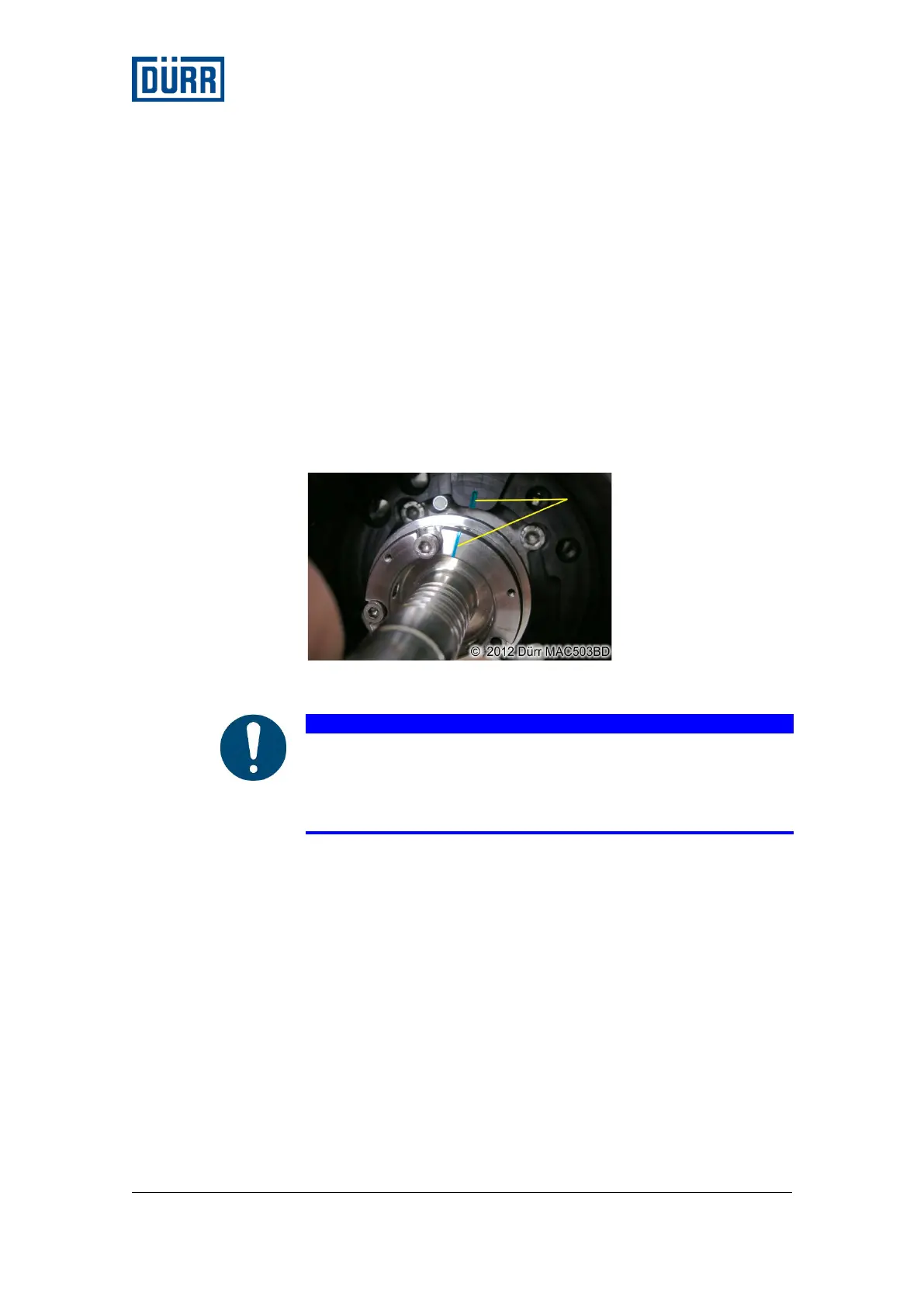

Fig. 92: Markings on the paint pipe and valve block
A T T E N T I O N
Risk of property damage and production disruption
Over-tightening the screws will pull the thread inserts from their
housings.
Observe the tightening torque.
• Tighten the three screws in turn with 0.8Nm max.
Once the paint tube is installed, the following work is yet to be carried
out:
- Mount the contact ring.
- Attach the nozzle.
- Mount the main needle valve.
- Attach the chuck.
- Assemble the shaft detent.
- Attach the valve block.
