Dorr EcoBell2 SL EC - O-Ring 7 X1.5; Sealing Ring D9; O-Ring 4 X1.5

Operating Manual
© Dürr Systems AG
148 / 156
EcoBell2 SL EC
- Rotating Atomizer with External Charging
Technical Data
Document No.: MRA00001EN
Version:: 07 • As of:: 01/2020

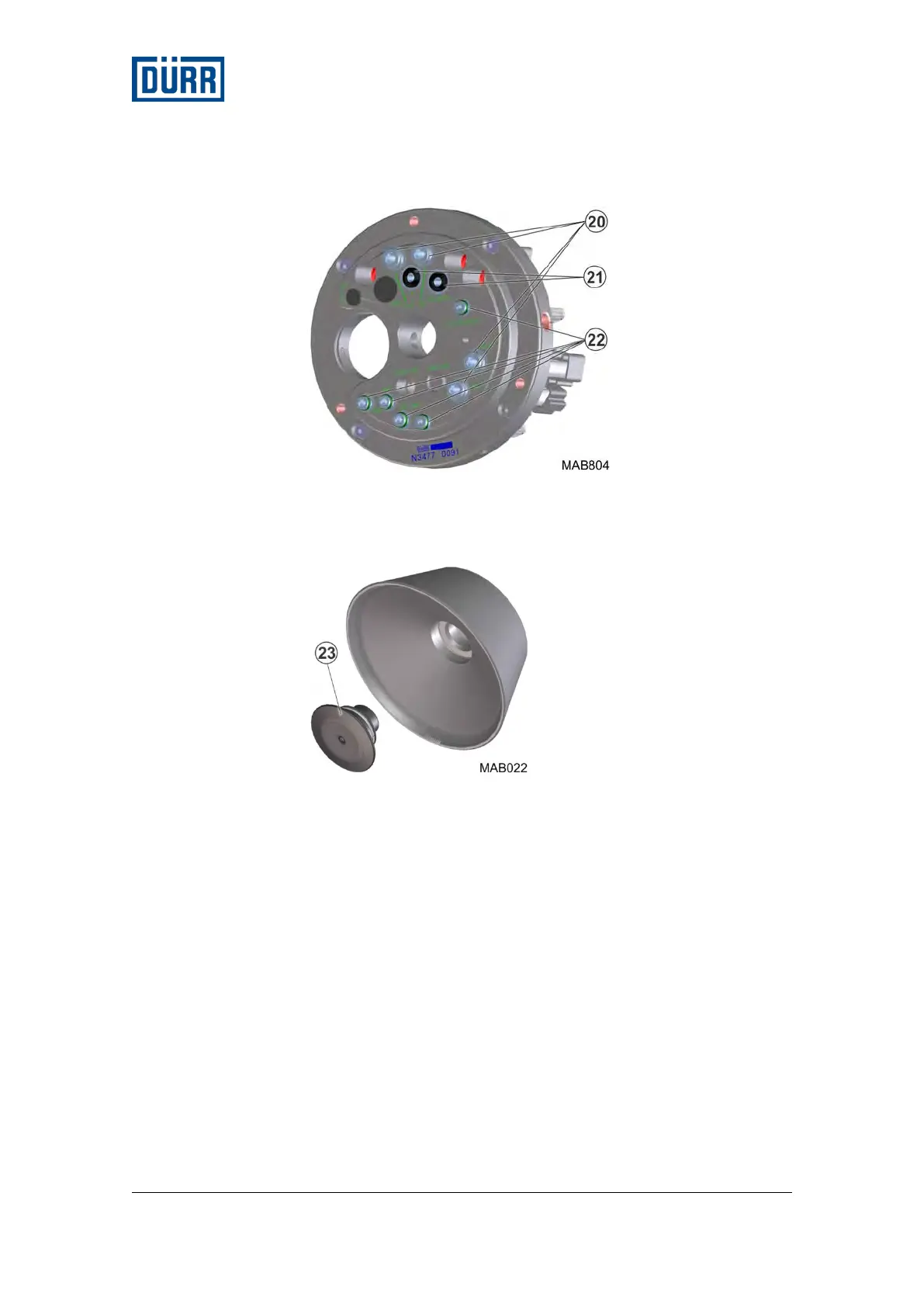

Fig. 103: Repair set for flange assembly
20 O-ring 7x1.5
21 Sealing ring D9
22 O-ring 4x1.5
Fig. 104: Repair set distributor disk (complete)
23 Distributor disc D22
