- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

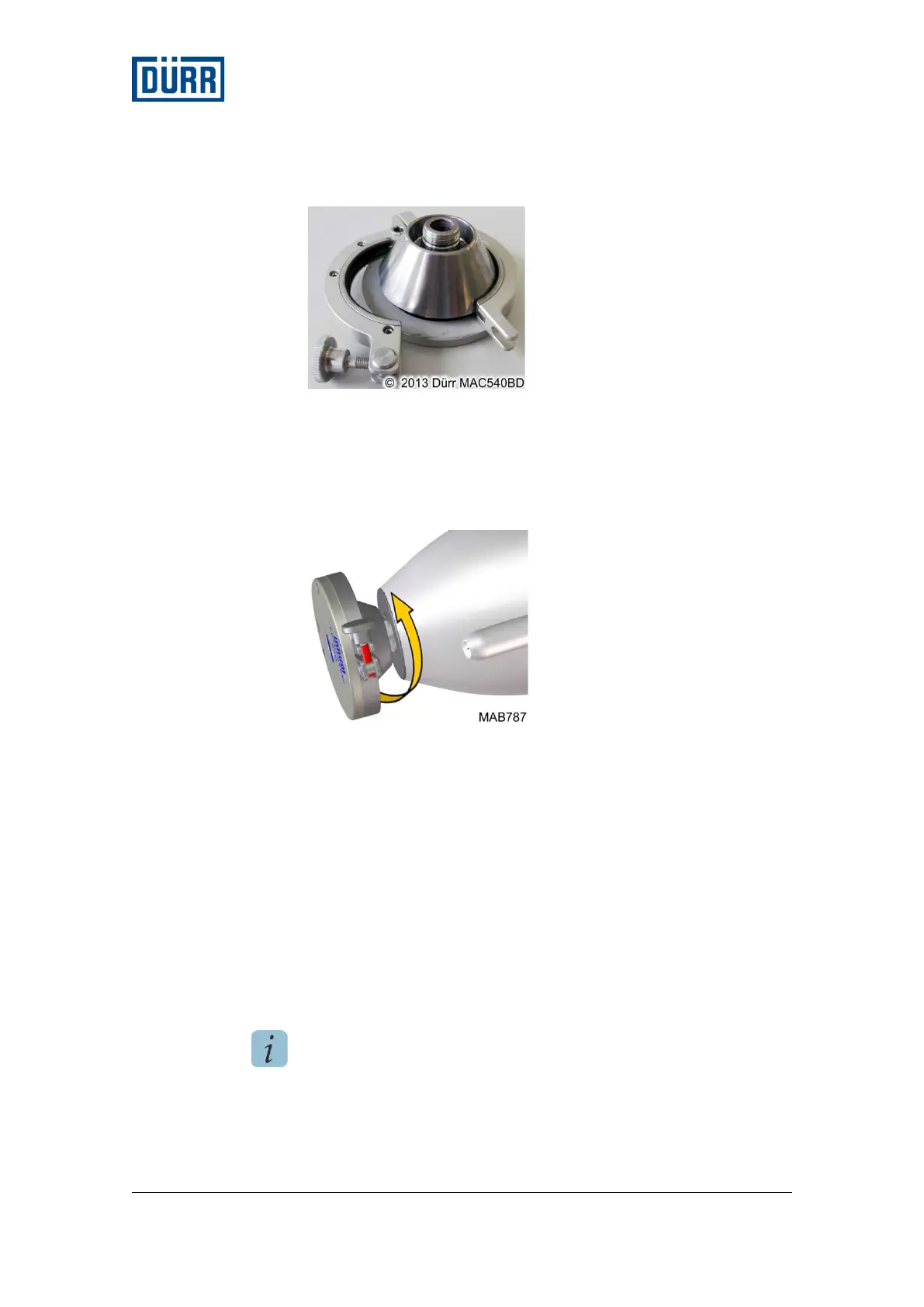

Fig. 46: Special tool on the bell disk
• Close the clamp carefully and tighten the knurled screw with light
manual force.
Only when the bell disk is in the correct position can the clamp be
closed with minimal effort.
• Screw the bell disk counterclockwise from the shaft using the tool.
Fig. 47: Unscrewing the bell disk
• Remove the special tool from the bell disk.
7.5.1.2 Checking the distributor disk
The distributor disk can be dismantled, checked, and mounted again
on the removed bell disk.
Dismantling the distributor disk
An assembly tool is required to remove the distributor disk from the
bell disk housing (see chapter “Tool kit”).
The edge of the bell disk must not be damaged.
Place the edge of the bell disk on a soft, clean cloth on a flat working
surface.
