- Rotating Atomizer with External Charging
MRA00001EN
Version:: 07 • As of:: 01/2020
4.5.2.2 High voltage line

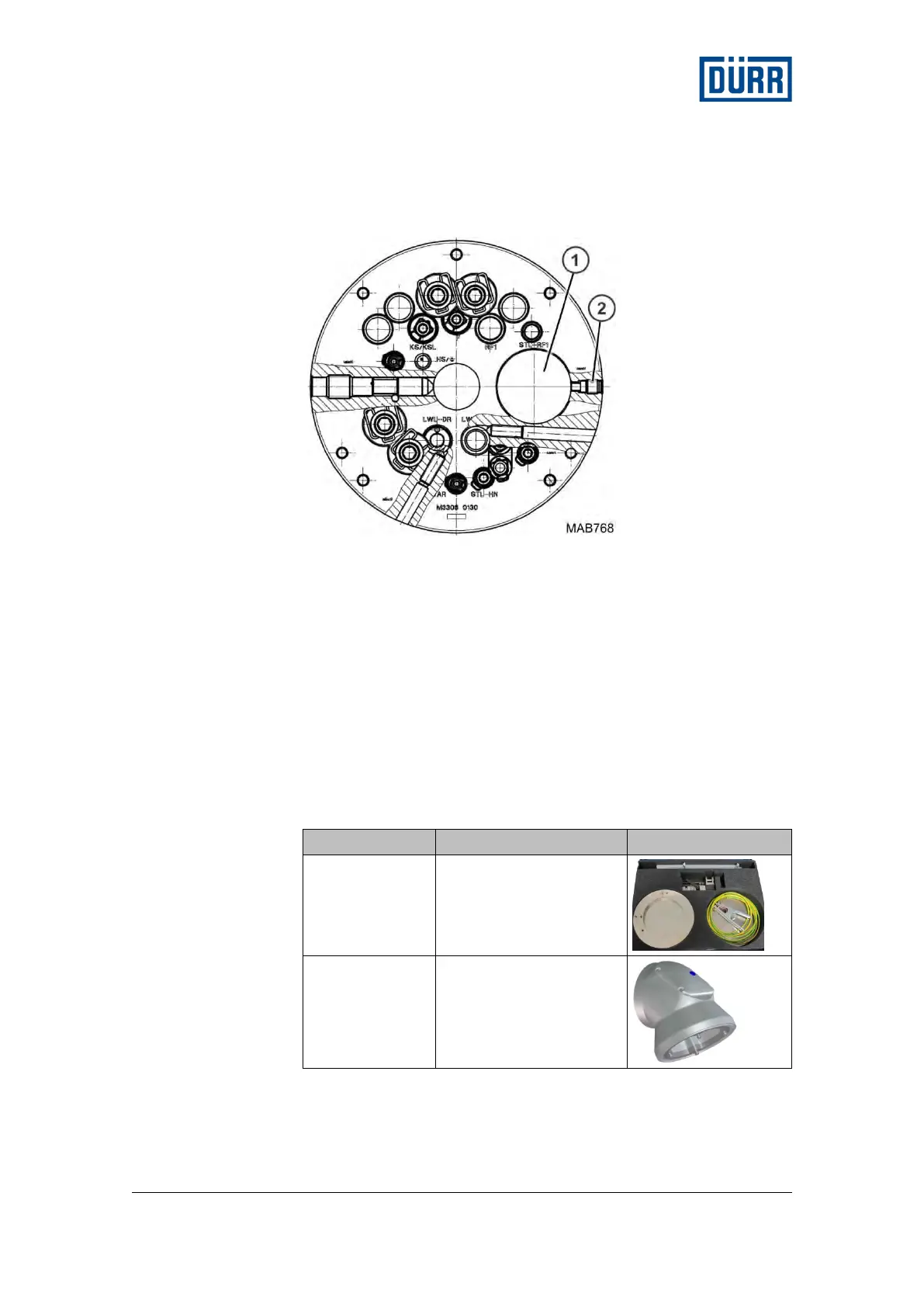

Fig. 18: Back of the flange
1 Grommet for the high voltage plug
2 Grub screw for mounting the high voltage plug
The plug of the high voltage cable is mounted on the flange.
The high voltage terminal is located at the electrode ring. At the time
of later assembly of the electrode ring, the high tension cable plug is
connected to the connection in the electrode ring.
Pos: 32 /INP/ Bell2/04_05 Z ubehör_AA @ 57\mod_15 0399353216 4_20.docx @ 620073 @ 2344 4444444443 444 @ 1
4.6 Accessories and Related Parts
4.6.1 Accessories
Material number Denomination Figure
W50020096 Apparatus to check high
voltage disconnect for
category G2 devices
N34850018 Atomizer attachment 60°
(Elbow)
