- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

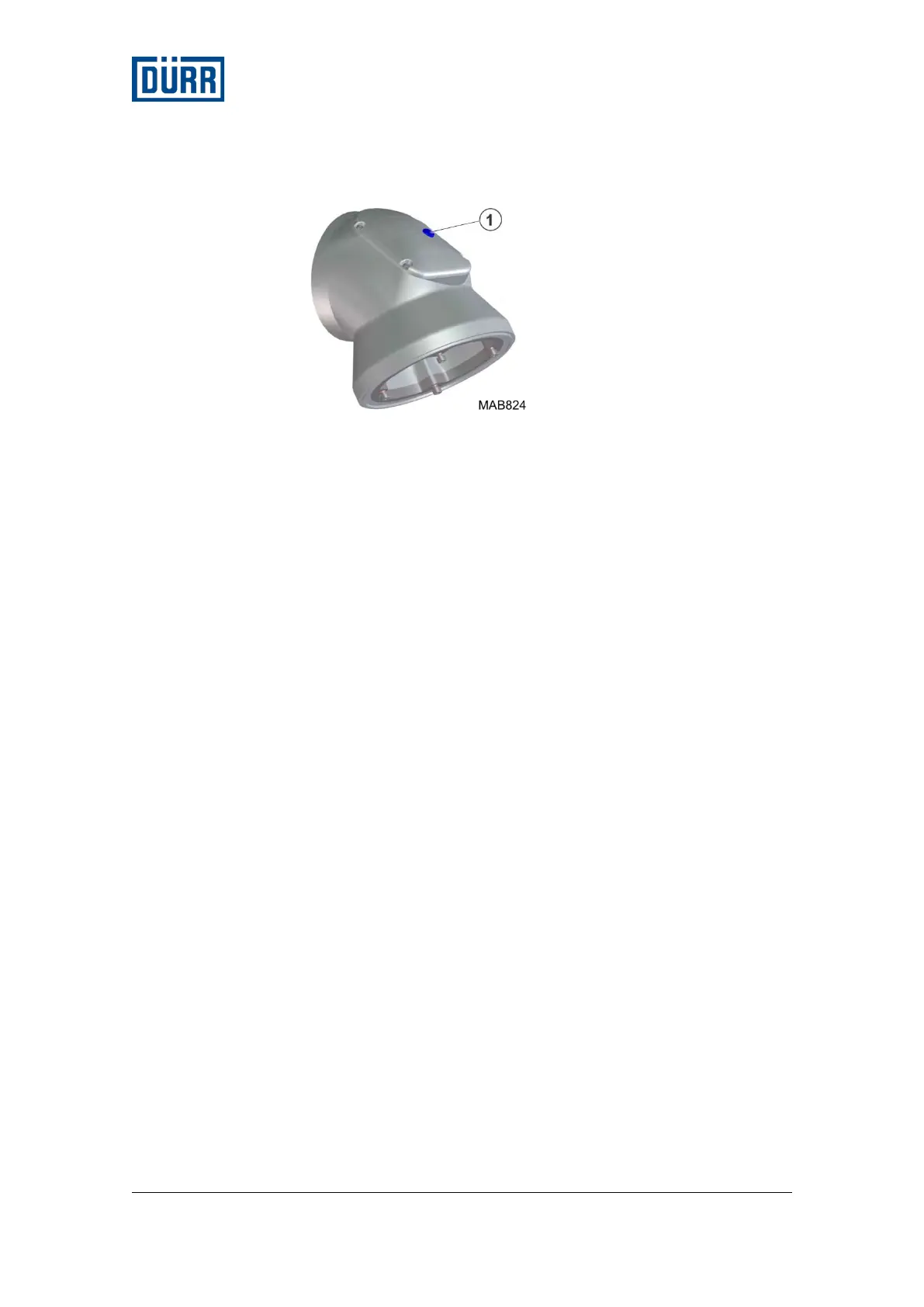

Fig. 8: Elbow
1 Push-button for shaft detent
Option (3):
The operator must provide compressed air that can trigger the shaft
detent.
Option (4):
The operator must provide compressed air, that can be activated via
the push-button on the elbow:
• Activate compressed air.
• Push button on elbow.
The shaft does not move as long as the button is pressed.
4.4.2.2 Shaping air
The turbine housing bores conduct the shaping air to the inner
shaping air ring. The arrangement of the holes ensures an even
distribution of the shaping air.
