Operating Manual

EcoBell2 SL EC

- Rotating Atomizer with External Charging

Faults

Document No.: MRA00001EN

Version:: 07 • As of:: 01/2020

121 / 156

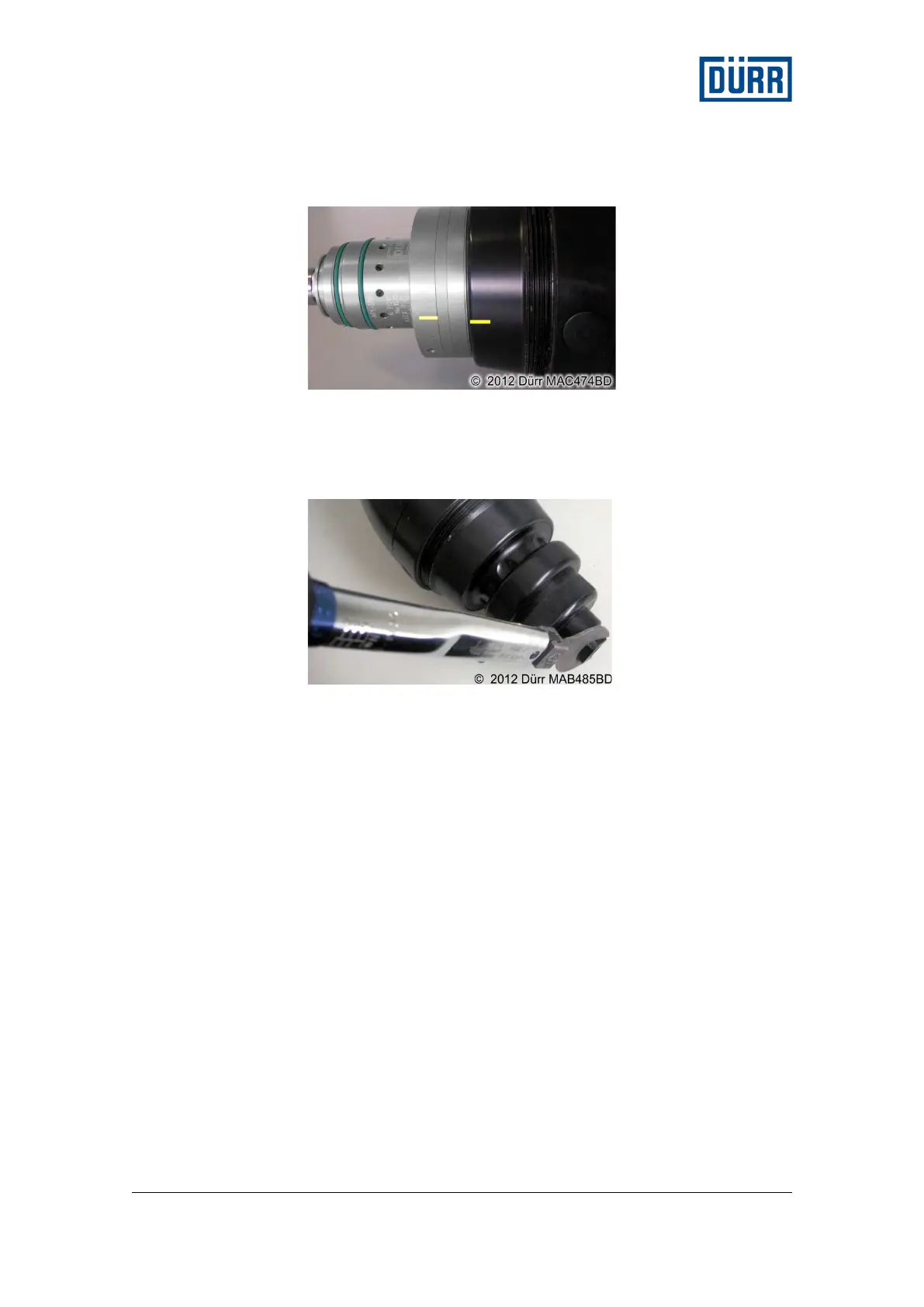

Fig. 69: Markings

• Set the turbine in the valve casing.

• Place the swivel nut.

• Tighten the swivel cap with the specialized 8 Nm tool.

Fig. 70: Tightening the screw cap

After installation of the turbine, the position of the nozzle must be

checked.

9.2.3 Checking the position of the nozzle

• Instead of the bell disk, screw the test sleeve into the shaft.

• Visually inspect the centric position of the nozzle.
