- Rotating Atomizer with External Charging
Installation and assembly
Version:: 07 • As of:: 01/2020
5.2.5 Attach the atomizer to the flange package.
Prerequisite:
- Electrode ring is mounted on the flange assembly.
- Chuck is checked:
- Spigot is lightly greased.
- Interimediate piece in the spigot moves easily.
The atomizer is attached to the flange assembly.

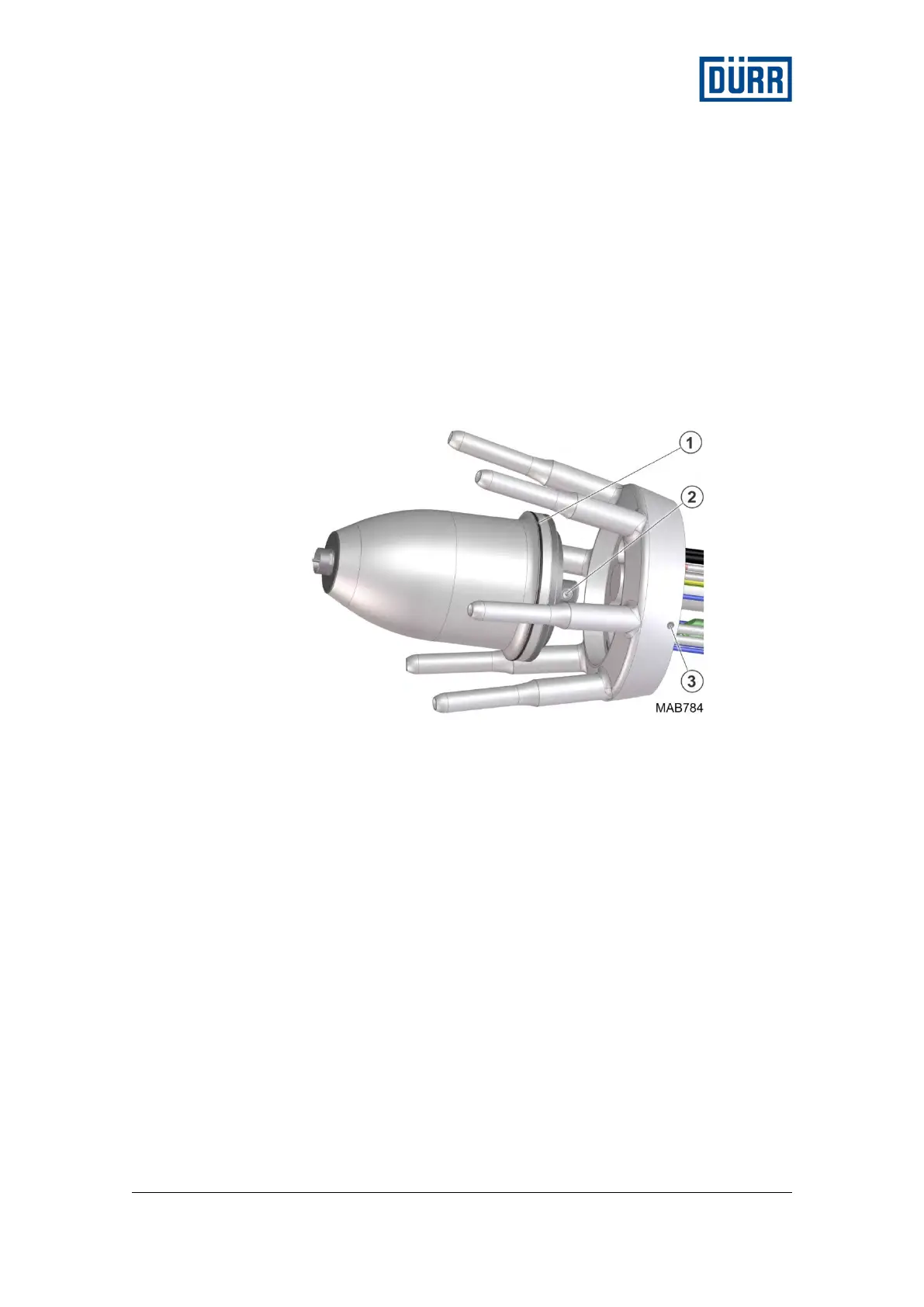

Fig. 29: Attaching the atomizer
1 O-ring
2 Clamping device
3 Clamping screw
• Wet the O-ring (1) on the atomizer with 2 ml of petroleum jelly.
• Set up atomizer in its correct position.
Opening of the chuck (2) in the direction of the clamping screw (3).
• Push in atomizer until it reaches the stopper.
Move atomizer slightly up and down. The atomizer fits only in one
position.
• Tighten chuck (2) using the clamping screw(3) with 11 Nm.
No gap between atomizer and electrode ring.
• Fill the hole of the clamping bolt (3) with 2 ml of petroleum jelly.
• Remove excess white petroleum jelly.
