- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

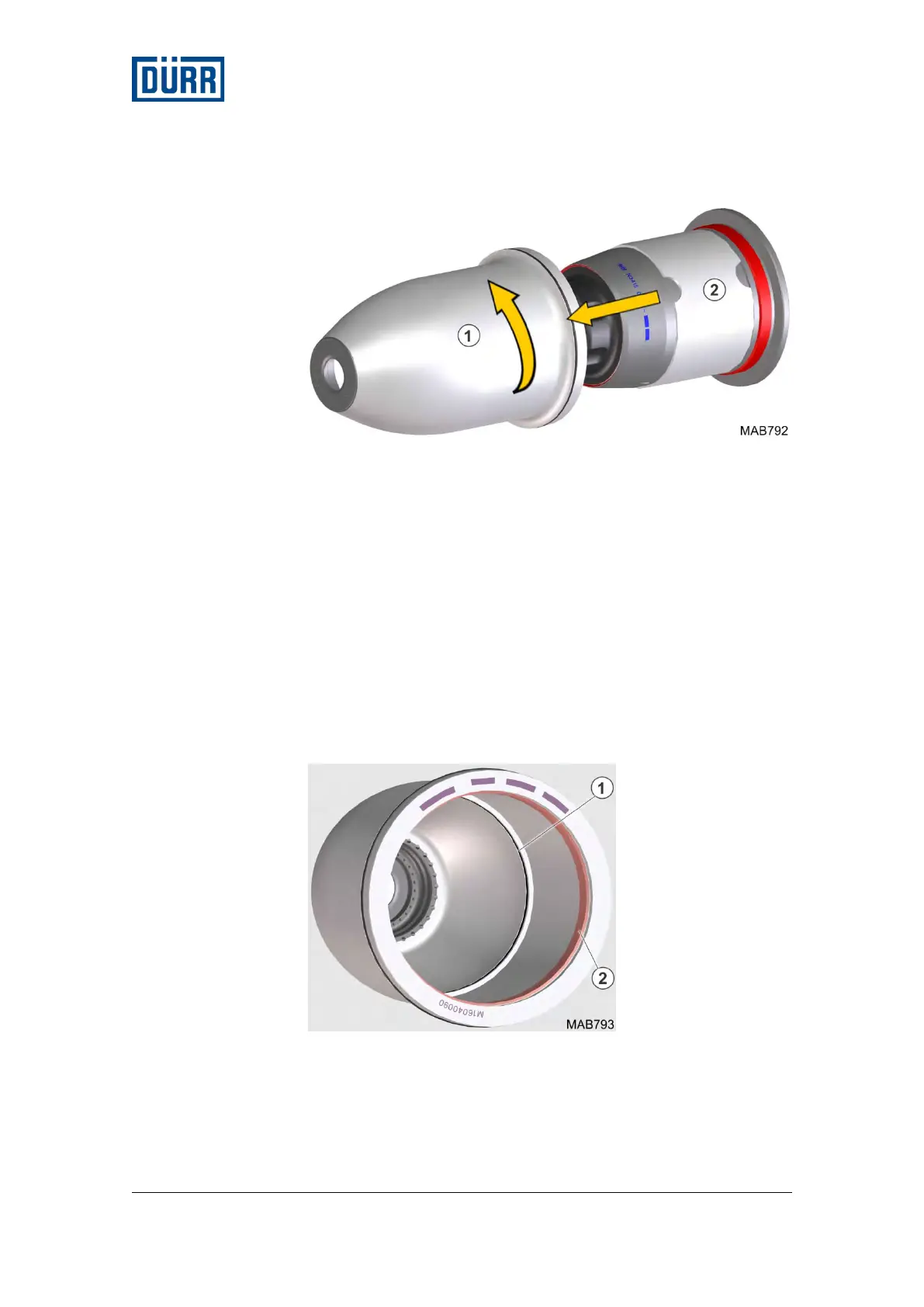

Fig. 56: Removing atomizer body and sleeve
1 Atomizer body
2 Sleeve
• Hold atomizer body (1) with both hands.
• Unscrew the atomizer body (1) counterclockwise.
• Pull off sleeve (2).
The sleeve must be removed only if work is needed on the valves.
7.5.4.2 Install atomizer housing
Use only an atomizer body in mint condition.
Damage to the atomizer body, especially at the shaping air ring,
negatively affect the paint result.
Fig. 57: Interior view of the atomizer body
1 O-Ring
2 Thread
