- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

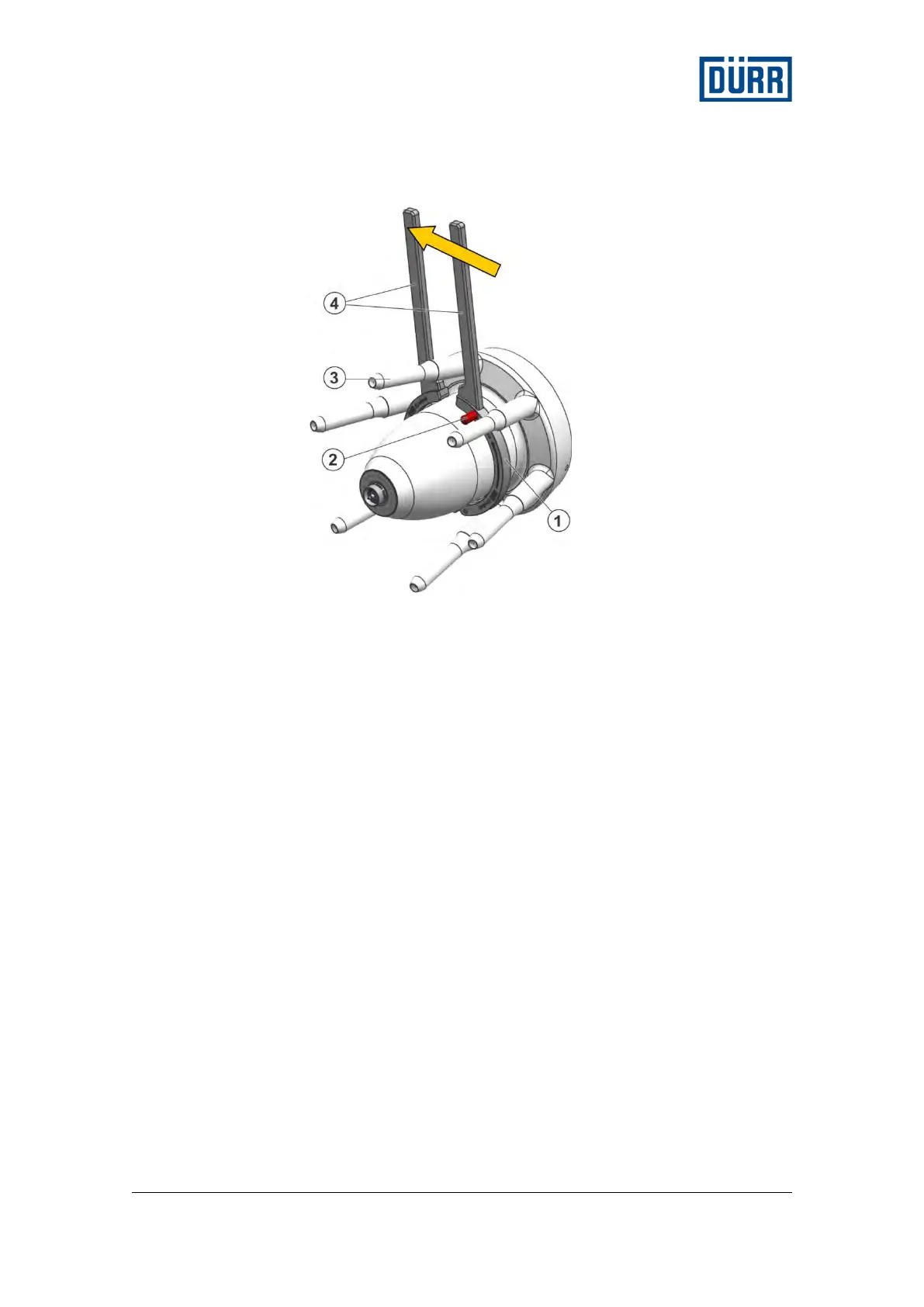

Fig. 55: Pliers on the atomizer body
1 Pliers 3 Uppermost Finger
2 Bolt 4 Handle
• Place pliers (1) around the atomizer body
Bolt (2) must point forward.
• Position handle of the pliers (4) pointing up around the topmost
finger (3).
• Loosen atomizer body carefully using the pliers.
Do not damage the finger. Set multiple number of times if
necessary.
• Remove pliers (1).
