Operating Manual

EcoBell2 SL EC

- Rotating Atomizer with External Charging

Operating principle

Document No.: MRA00001EN

Version:: 07 • As of:: 01/2020

47 / 156

4.6.2.2 R/O converter

The R/O converter converts optical signals from the speed

measurement into electrical signals. The electrical signals are further

processed by the control.

Pos: 33 /INP/ Bell2/04_06 W erkzeuge _AA @ 59\mod_1 5801357185 82_20.do cx @ 666215 @ 23 33445 @ 1

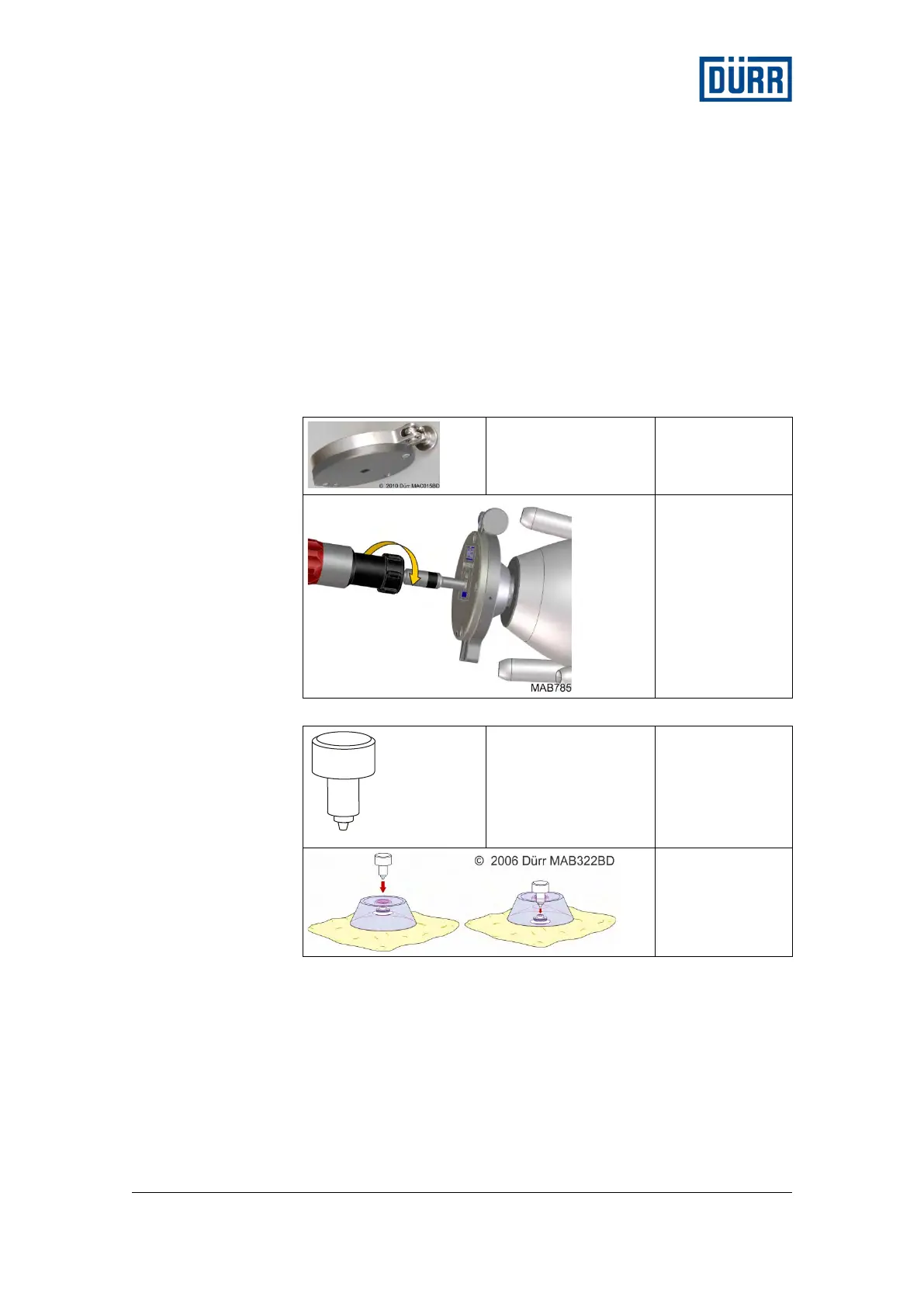

4.7 Tools

4.7.1 Tool kit

Tool for

Bell disk

M-Bell D55,

W02020234

Tool for the

assembly of the

bell disks with

torque sensor.

Tightening torque:

6Nm

Disassembly tool

Distributor disk

W03010004

Tool for pressing

the distributor disk

out.
