9.8 Replacing the hose at the flange assembly
A T T E N T I O N
Risk of damage to property and production disruption
Hoses not meeting the Dürr-quality requirements may cause
production disruptions.
Only use the original Dürr hoses. The original hoses are specially
designed to meet the requirements of the atomizer.

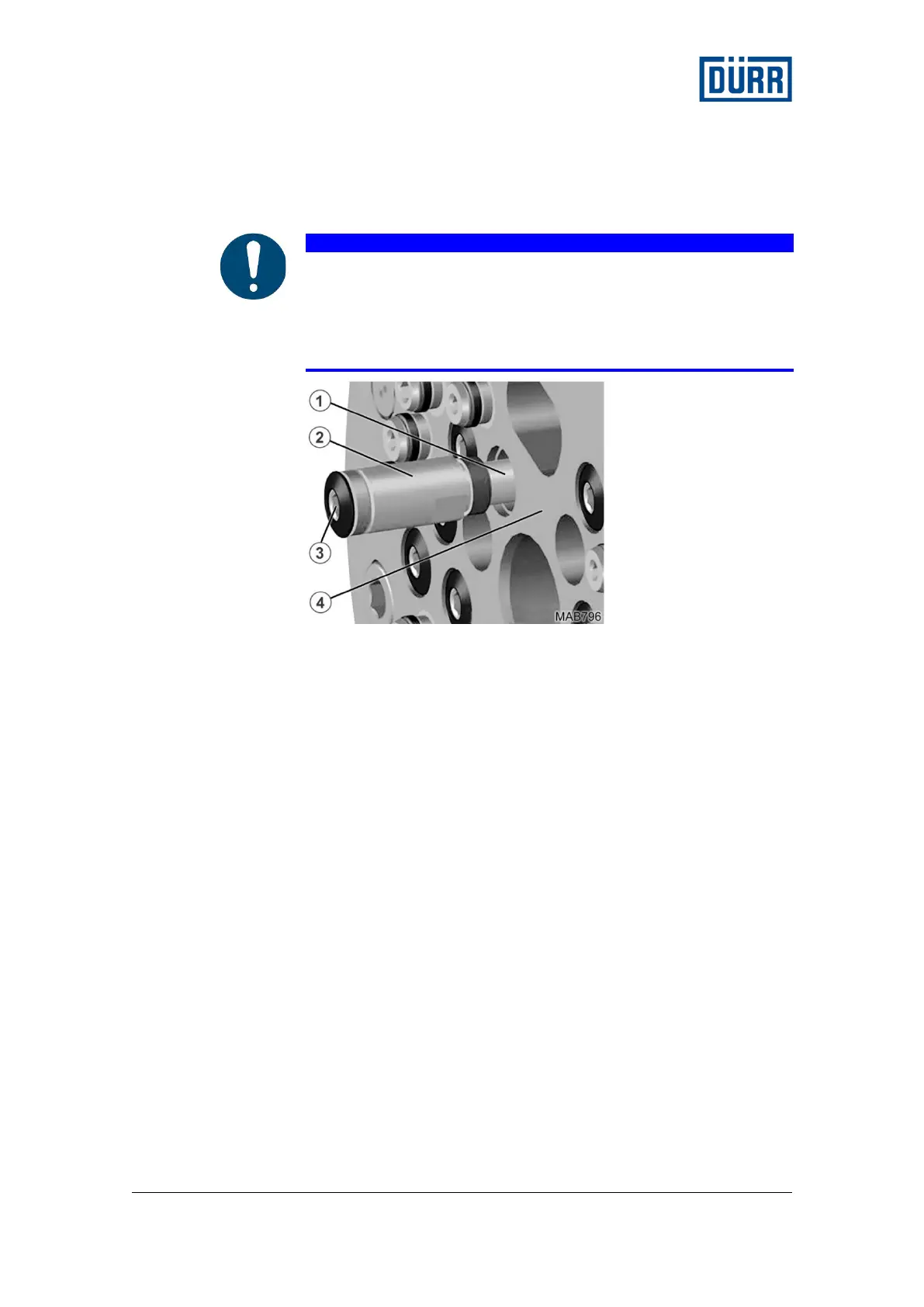

Fig. 95: Hose connection on the flange
1 Hose
2 Hose connection
3 Hexagon socket
4 Flange assembly
Ensure the following when working on the hose connections:
- Do not bend the hoses.
- Observe minimum bend radius of the hoses.
- Do not twist the hoses.
- Coat the hoses with a thin layer of Vaseline.
Requirements:
- Atomizer was removed from the flange assembly.
- The other end of the defective hose is free.
The hose connections are screwed into the flange assembly.
• Unscrew the defective hose from the flange assembly with a
hexagon socket.
• Remove the hose.
• Insert new hose with hose connection in the flange assembly.
• Screw hose connection into the flange packet with a tightening
torque of 1.5 Nm.
