- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
A special tappet holds the flange and the atomizer together. By
tightening the grub screw in the flange, an axial force is created
between the flange and the atomizer, which is required for
pressurizing the seal.

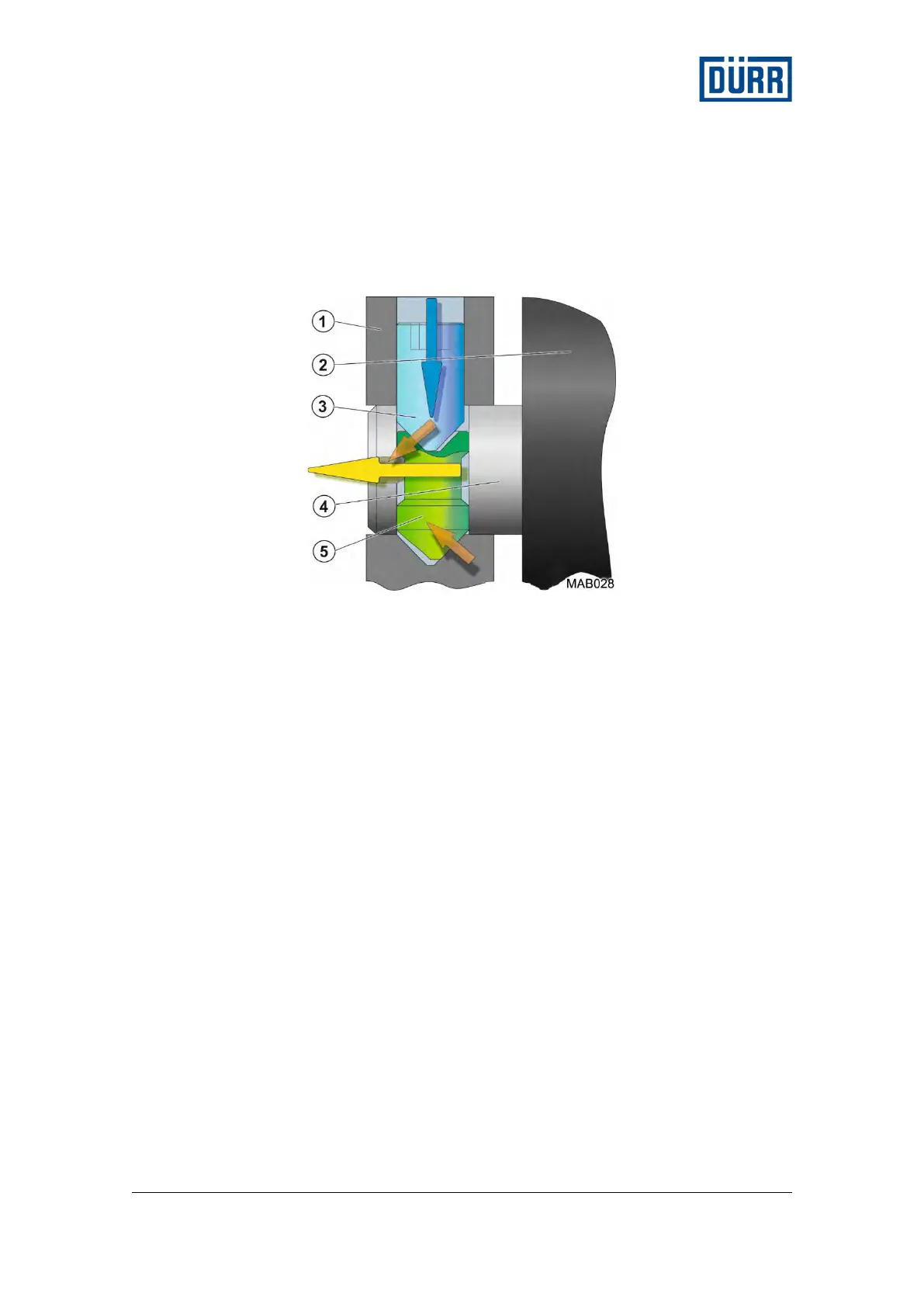

Fig. 116: Connection of flange and atomizer
1 Flange
2 Atomizer
3 Grub screw in the flange
4 Tappet in the atomizer
5 Interim piece in the tappet
Pos: 31 /INP/ Bell2/04_04 A nschlüsse_ AA @ 57\mod_15 0399267606 4_20.docx @ 620049 @ 233 44 @ 1
4.5 Connections
4.5.1 Interfaces
The interfaces of the atomizer are located at the connection surface of
the valve block. The connection surface should be connected with the
flange packet. The connections required for the operation of the
atomizer are located at the flange packet:
- Air connections
- Material connection
- Rinsing agent connection
- Light conductor for monitoring rotation speed
The purchase order number of the configured flange packet is
available in the chapter “Accessories".
