- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
• Screw the nozzle holder on the paint tube.

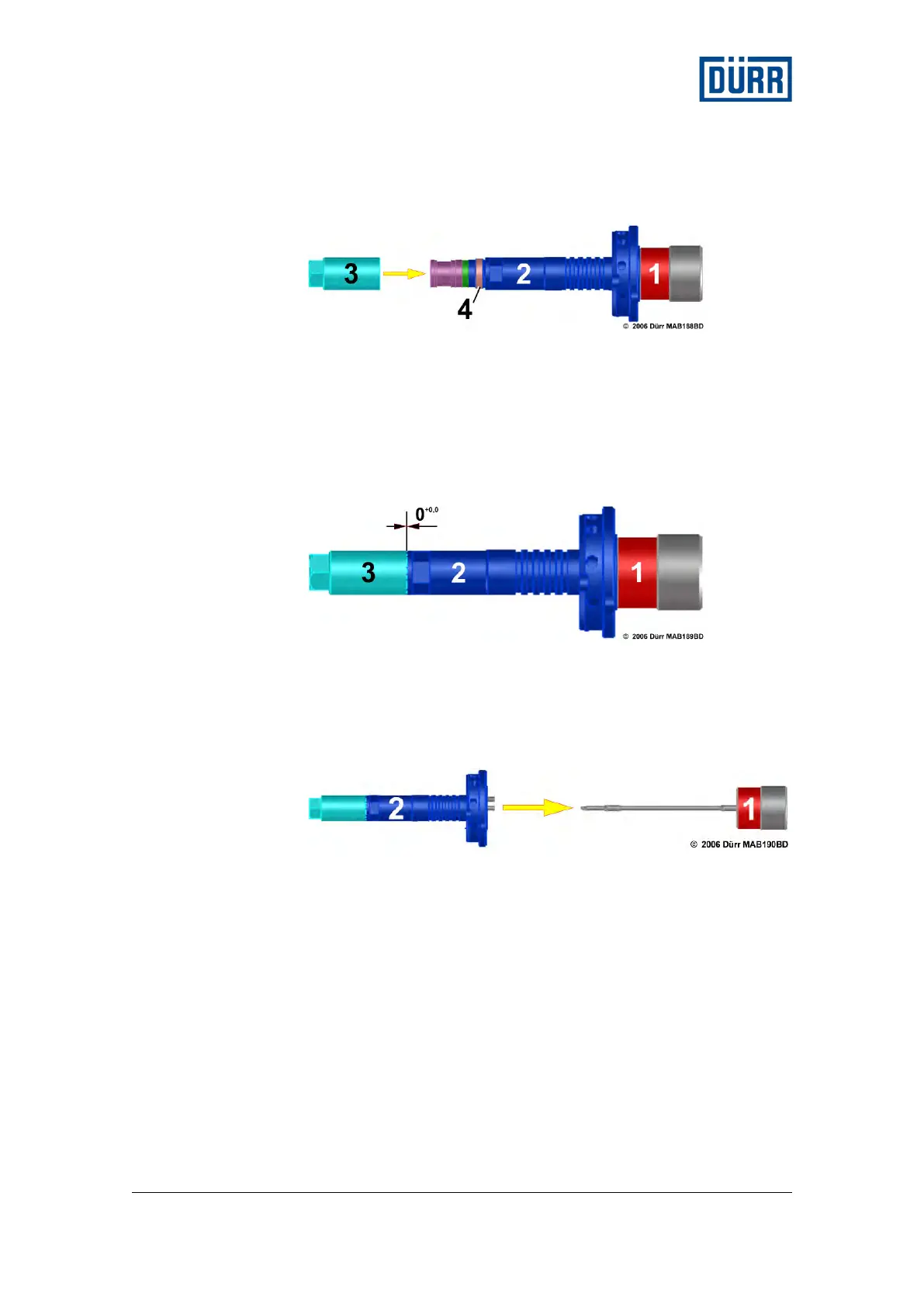

Fig. 89: Attaching nozzle holder
1 Assembly tool
2 Paint pipe
3 Nozzle holder
4 Coat thread with Screwlock
• Tighten nozzle holder with 12 Nm on the paint tube.
Make sure the nozzle holder is flush with the paint pipe after the
tightening.
Fig. 90: Making sure the nozzle holder is flush
1 Assembly tool
2 Paint pipe
3 Nozzle holder
• Once work is completed, carefully pull the assembly tool out of the
paint pipe.
Fig. 91: Removing the assembly tool
1 Assembly tool
2 Paint pipe
• Insert seal at the foot of the paint tube.
