- Rotating Atomizer with External Charging
EN
Version:: 07 • As of:: 01/2020

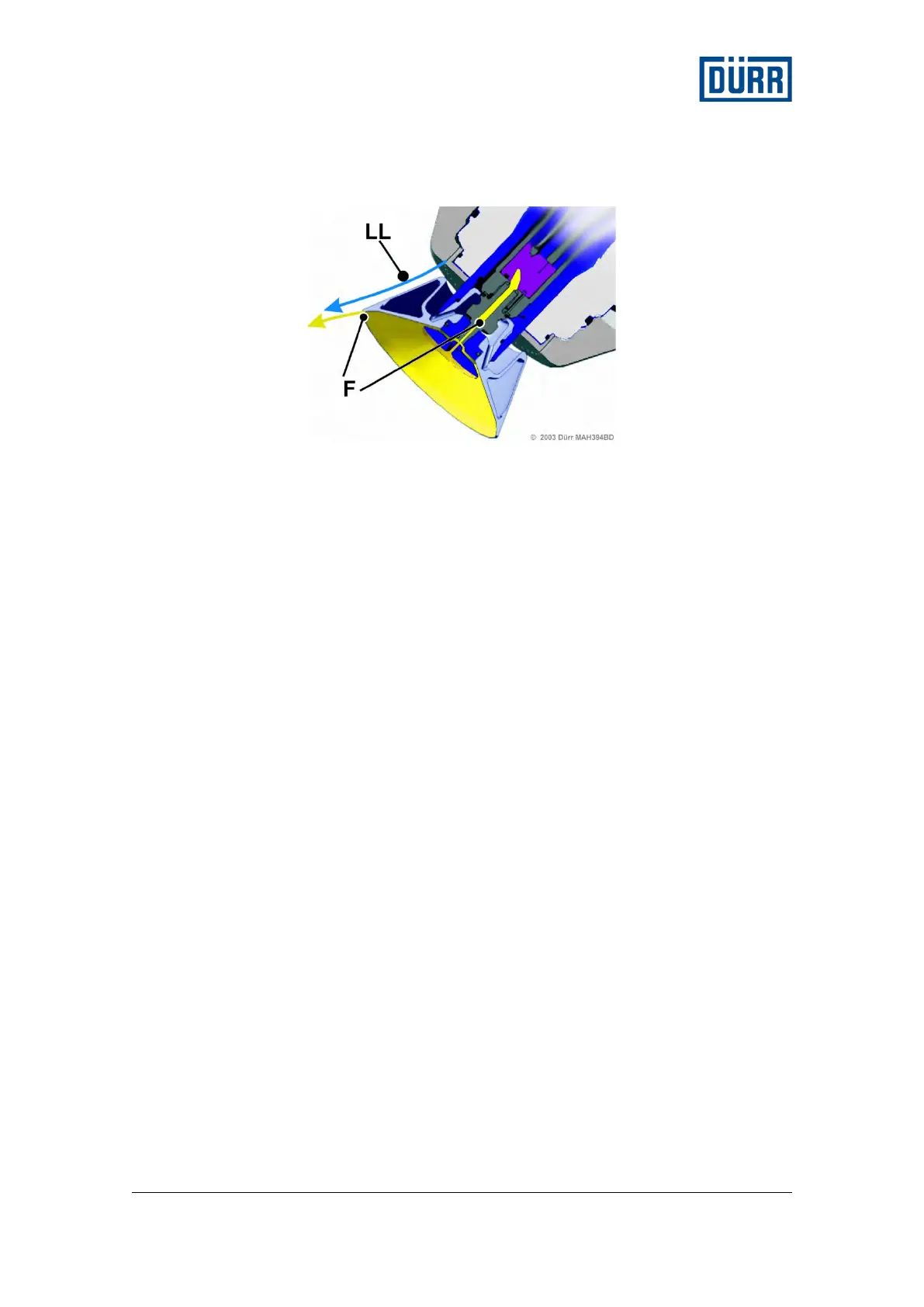

Fig. 5: Paint and shaping air in the bell disk
F paint
LL shaping air
Rinsing the bell disk
To ensure that there are no paint residues or stains in and on the bell
disk, the bell disk is completely cleaned out with the rinsing agent.
Stains might reach the surface to be painted and might lead to faults
in the painting.
For the cleaning, the so-called "Kurzspülen" [quick purge], the speed
of the bell disk is reduced considerably. Instead of paint, rinsing agent
flows into the bell disk.
The rinsing agent flows through the bores at the back of the bell disk,
over the back and exterior sides of the bell disk, and removes the
stains there.
