- Rotating Atomizer with External Charging
Installation and assembly
Version:: 07 • As of:: 01/2020
• Screw on the potential equalization cable (2) to the flange (1) using
the cable lug.

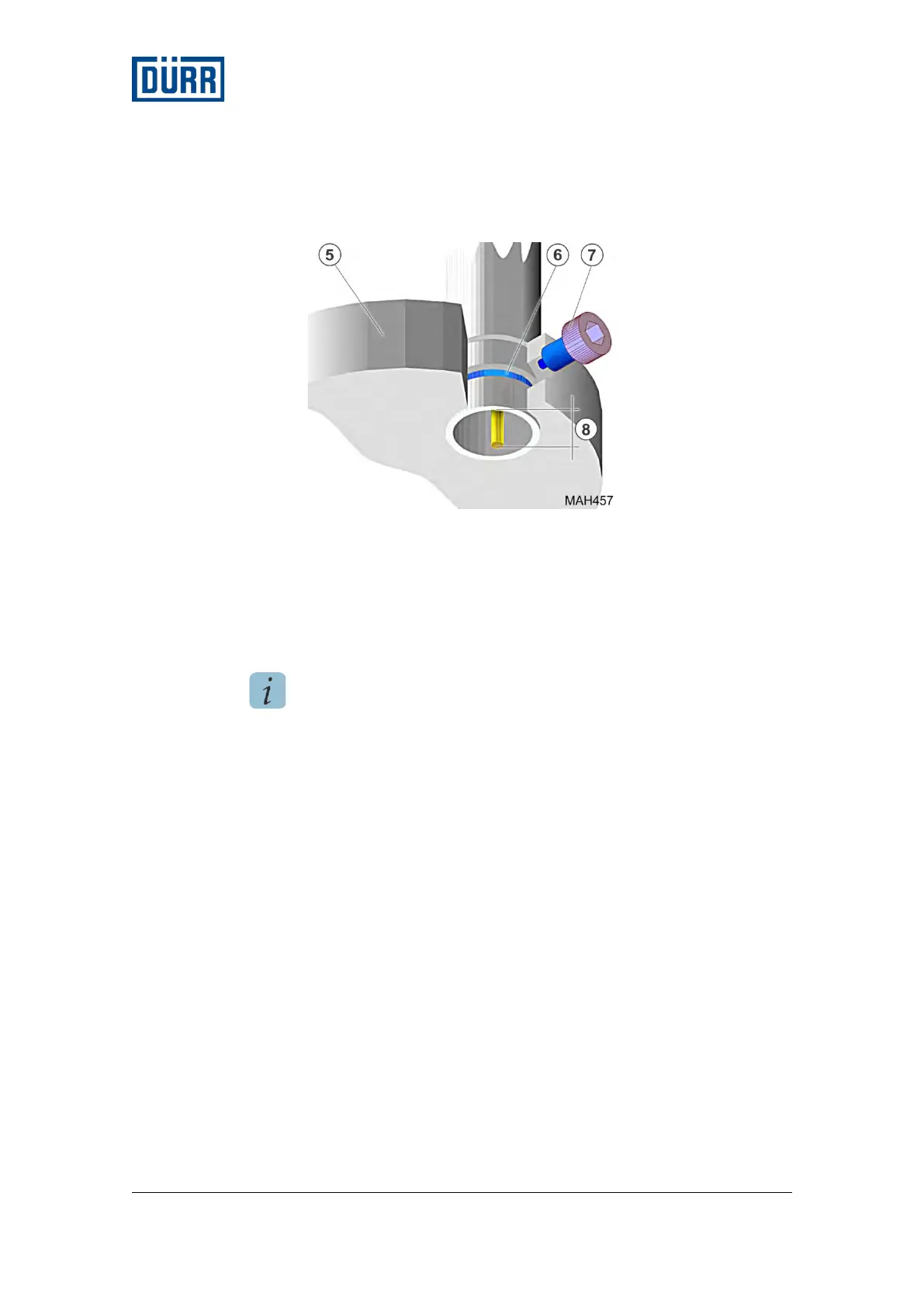

Fig. 21: Groove for the grub screw
5 Flange
6 Position of the groove on the plug
7 Grub screw
8 Degree of protrusion
• Push plug of the high voltage line through the flange (5) and
secure it with the grub screw (7).
The grub screw (7) glides into the groove of the plug housing (6).
The high voltage connection is prefabricated and must not be
changed. The plug must not be opened. Only in the original state are
safe operation and correct assembly guaranteed.
The projecting dimension (8) of the high voltage terminal shall be
within 8 mm ± 1 mm. The projecting dimension (8) is the dimension,
by which the high voltage plug protrudes from the plug housing.
• Guide flange assembly with all hoses and lines through the
atomizer mount or the elbow.
