- Rotating Atomizer with External Charging
Installation and assembly
Version:: 07 • As of:: 01/2020
- Lines and hoses should be routed separately, e.g. in cable ducts or
pipes with partitions.
Separation by:
- High voltage line
- Hoses for media (paint, detergent)
- Hoses for pneumatics
- Cable for potential equalization

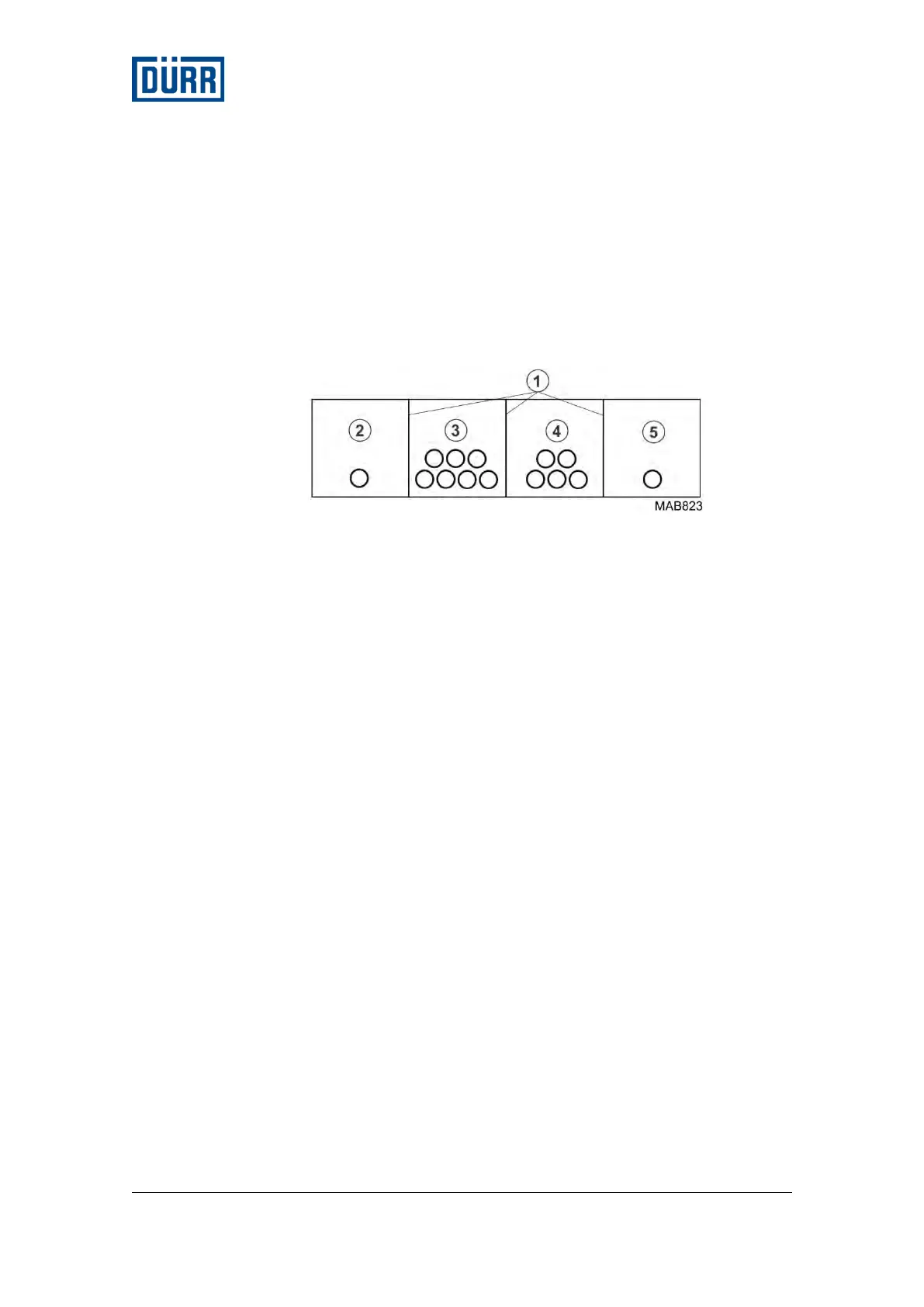

Fig. 23: Example of cable duct
1 Partition in the cable duct
2 High voltage cable
3 Hoses for pneumatics
4 Hoses for media
5 Cable for potential equalization
- Use for each atomizer a separate duct or own pipe.
- Cable ducts or pipes must be made of non-conductive material.
- Do not screw cable ducts or pipes on a large area to metal.
(Danger of propagating brush discharge).
- Shorten lines and hoses to the required length. Especially the high
voltage line must not be laid in loops.
- The interfaces of the hoses and lines on the cabin wall must be
tight on the outside of the cabin.
The atmosphere of the cabin may not be transferred outside the
cabin.
- The media hoses must be connected to a grounded power supply.
Laying outside the cabin
Lines and hoses must be laid in a closed housing and grounded. This
ensures that protection against direct contact is available and people
and objects cannot be electro-statically charged.
