- Rotating Atomizer with External Charging
Installation and assembly
Version:: 07 • As of:: 01/2020
• Brush 3 ml of petroleum jelly on the sealing surface (1) and groove
(3) of the electrode ring.
• Fill high tension connection (2) on the electrode ring with 2 x 1 ml
petroleum jelly.
• Attach the electrode ring to the flange assembly so that the high
voltage terminal of the flange assembly fits into the high voltage
terminal on the electrode ring.

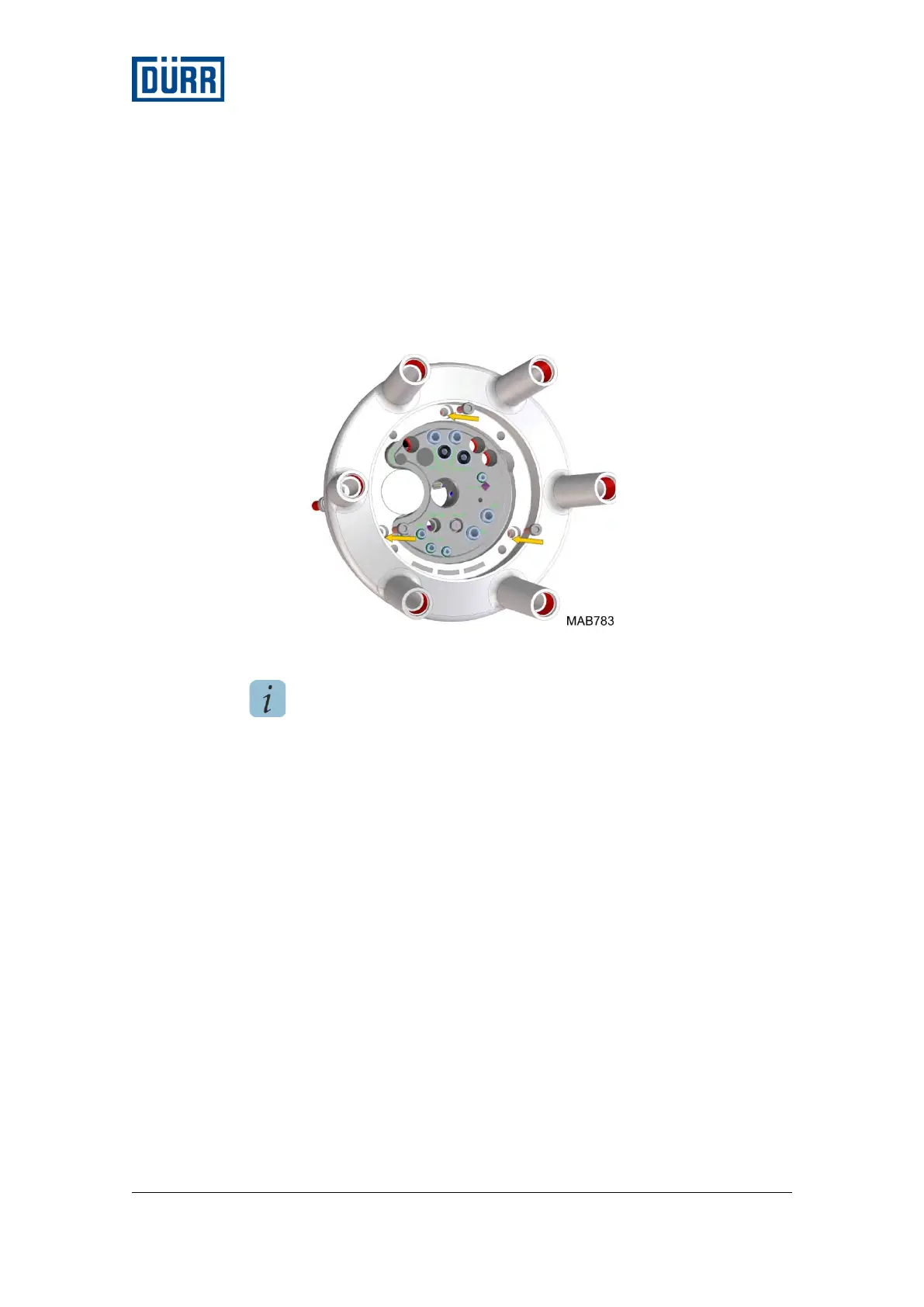

Fig. 25: Inserting the plastic screws
• Insert the three plastic screws and tighten slightly.
Use the original plastic screws only. Metal screws interfere with the
electrostatic field of the electrode ring. The high voltage will not reach
its maximum performance. The electrode ring and the atomizer soil
faster and more intensively. Metal screws can damage the bores in
the electrode ring.
