Instructions for use Fabius plus SW 3.n 75
Assembly and preparation

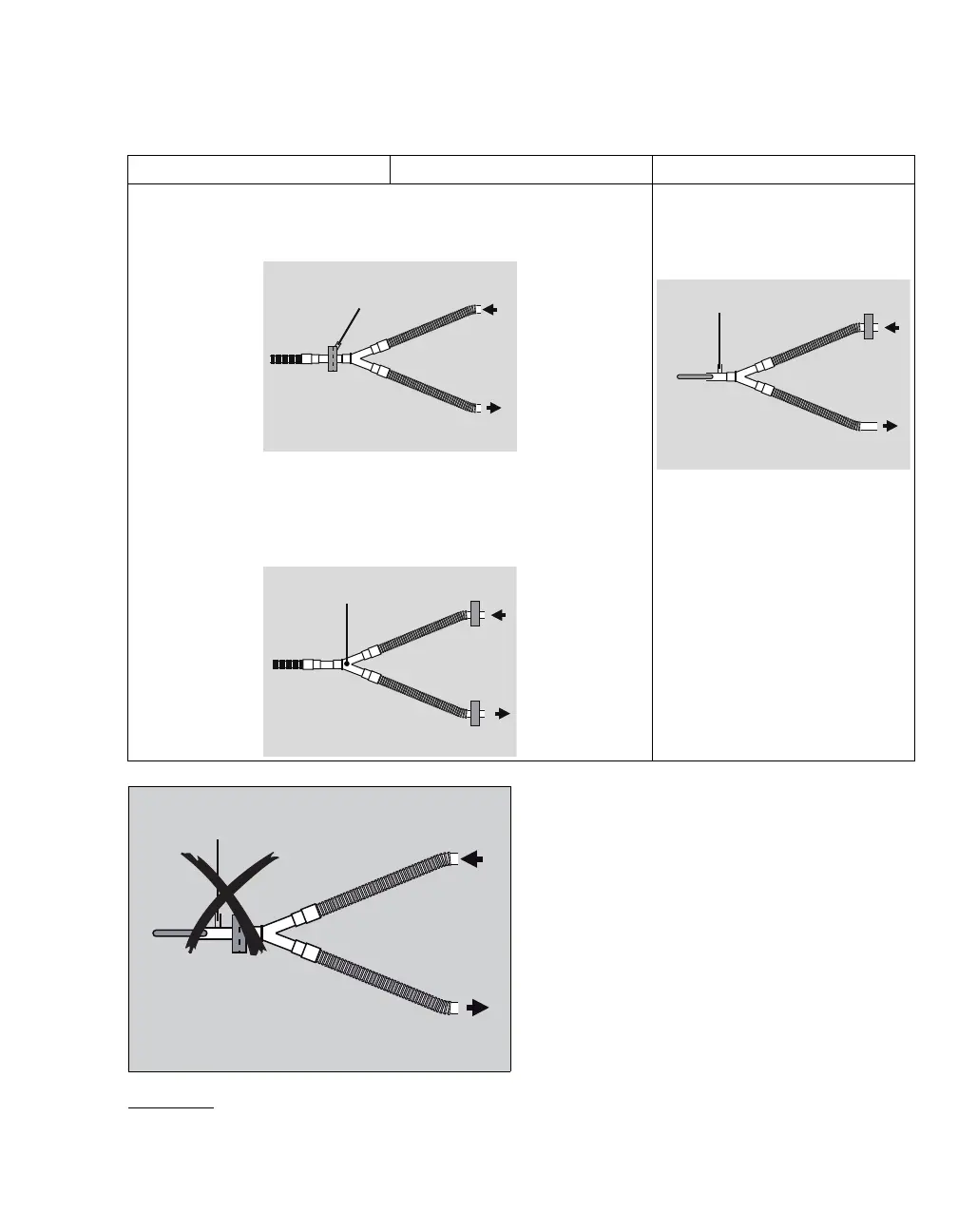

Table with recommended hose configurations
*
* The resistance of the breathing system and connected accessories must be observed.
Adults Pediatric patients Neonates
Filter or HMEF with connection for sample line between Y-piece and
patient:
Or
Filter at inspiratory port and expiratory port, connection for sample
line at Y-piece:
Filter at inspiratory port, connec-
tion for sample line as close to
patient as possible:
Lateral connections for the sam-
ple line support CO
2 measure-
ment and help to flush the dead-
space between Y-piece and hose
adapter.
LQVS
H[S
LQVS
H[S
