Option Description
Proportional speed reduction

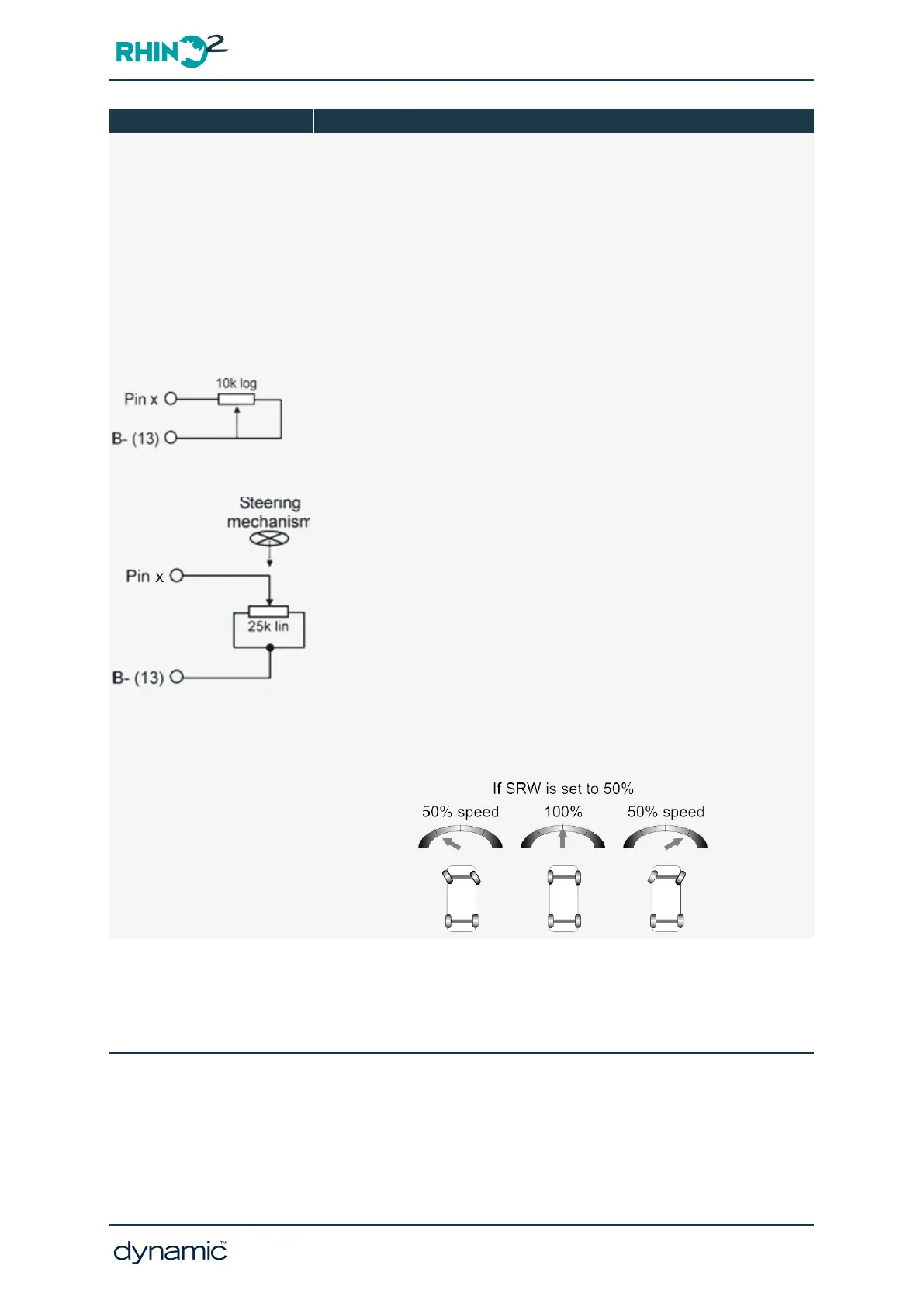

As a conventional User Control potentiometer, the SRW supports the
use of a 10k logarithmic pot wired as a variable resistor between Pin x
(4, 6 or 12) and B– of the tiller.
SRW (variable) supports a user-defined resistance value, between Pin
x (4, 6 or 12) and B– of the tiller, which can be set with SRW Scaling
Resistor (Ohm).
To avoid a throttle dead-band when the speed is reduced, use the
'SRW Speed Scale' parameters and leave the 'SRW Speed Limit'
parameters at 100%.
Turning speed reduction
Alternatively, this function can be used as an anti-tip feature to stop
the scooter tipping while turning at a high speed, the speed being
reduced dependent on how far the tiller is turned.
In order for this function to work, mechanically connect the wiper of
the external pot to the steering mechanism during installation. If the
steering mechanism is in the centre position (driving straight) the
wiper should also be in the centre position, providing maximum
resistance. When the mechanism is turned the wiper will move off-
centre, which decreases the resistance between pin x (4, 6 or 12) and
B-, slowing down the scooter.
To avoid the scooter slowing down during a turn when it is already
driving at low speed, use the 'SRW Speed Limit' parameters. Leave the
'SRW Speed Scale' parameters at 100%.
Slow
Slows the scooter to a set speed limit (a percentage of the maximum
speed). Has no effect on scooter acceleration or deceleration.
Available on Tiller Connector Pins 4, 6, 12, and 14 and
Charger/Programmer Connector Pin 4.
GBK51948 RHINO2
Installation Manual Issue 5
Installation and testing - Page 43
